AUTOMATED EFFICIENT COAL BOILER WITH EXTENDED AUTONOMY UP TO 2 WEEKS
For Commercial use only. Eko Duo is optimized for burning coal up to 1". The boiler cycle to keep hot ashes to ignite next fire. In addition, you may also burn pellets, grains.
When ordering, you can select the side for the hopper (left or right side of the boiler). This boiler can work continuously for up to 5 days without any additional services (until fuel run out).
Automatic ash removal screw system is an option also.
Heat: 15000 ft²
Weight: 5800 lb
Hopper Volume: 400 gal - 4000 lb of coal
Coal type: Anthracite and Bituminous
Coal size: Rice, Buckwheat and Pea
Made in Europe
FOR COMMERCIAL USE ONLY

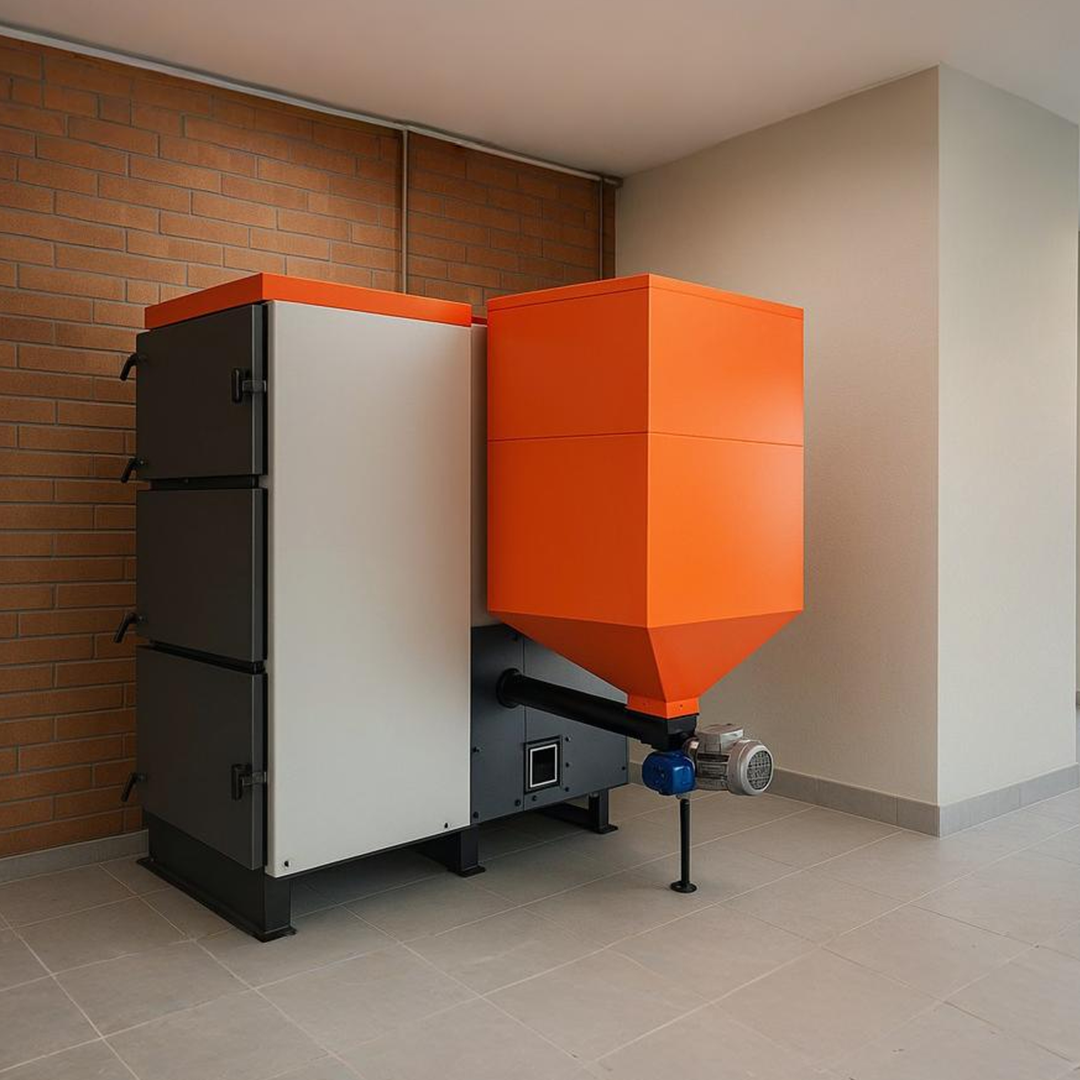

Eko Duo is the last generation of automatic coal boiler. It is equipped with a modern self-cleaning rotary cast iron burner, a feeding auger, an electric gear motor, a hopper and a backdraft prevention system. The automatic burner in the bottom chamber burns coal but also pellets, grains and other biomass up to 1½". You can also manual feed coal, wood chips, peat briquette and much more using the middle chamber. The unique design allows complete heat recovery. The boiler has a guaranteed efficiency of 90%.
TIS tronic 481R master the combustion process depending on user parameter, weather, exhaust sensor and fuel quality. The controller easily adapt to any modern hydronic heating system and combine with domestic hot water, thermal storage, direct feeding, zone mixing design and more. Simply enter the setpoint heating water temperature and the boiler will modulate the combustion to match load. If there is no load the boiler will standby and reignites when needed. The automation with the large capacity hopper provides 4 to 10 days autonomy. The controller also includes functions of circulation pumps, motorize mixing valve, buffer tank, fuel level, summer/winter mode and thermostat feedback.

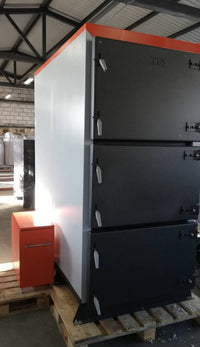

Eko Duo is manufactured with the finest certified boiler steel ASTM A106. The wide door openings make easy cleaning of the top heat exchanger, middle loading of biomass and removal of ashes from the bottom. All maintenance is performed from the front and there is no need to unscrew anything else. High-quality multi-layer coating, non-combustible 2" insulation, and thermal protection systems ensure long-term and trouble-free operation.
Warranty: 10 years
Best used with: Boiler Station: All-in-one Solution, provides a circulation pump, a thermometer, a Boiler Protection Valve, and Insulation
