APOLLO Geothermal MAX — Premium
APOLLO Geothermal Heat Pump MAX - 48k btu / 4 ton
Heating Capacity: Up to 2,500 ft²
Water-to-water heating and cooling with leaving water up to 131°F and included Wi-Fi control.
Model
APOLLO Geothermal MAX 4 Ton - 48K BTU · Up to 2,500 ft²
$7,880
$6,30420% OFF
Shipping$1,340Free
- Free shipping
- Secure checkout
Need help choosing?
Installed in real homes and workshops
Customer Success Stories
Take a guided tour of a complete MBTEK geothermal system and see how the heat pump, HydroSmart Station, storage, and hydronic distribution work together.
The Ultimate MBTEK Geothermal Setup — Part 1
Part 1 introduces the complete installation in Concho, Arizona.
Product details
- Up to 131°F water
- Ground-source stability
- Twin-rotary inverter
- Wi-Fi included

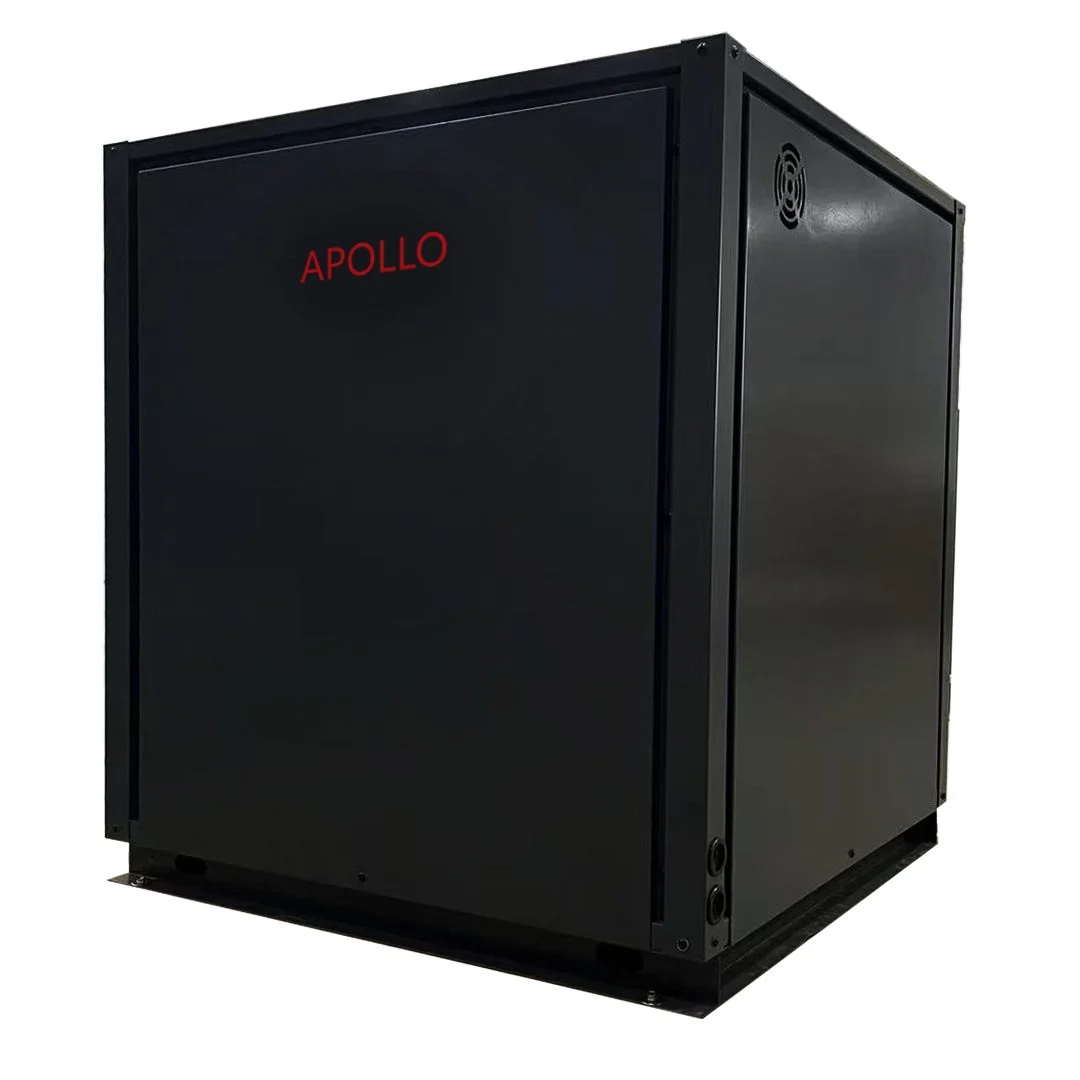

GEOTHERMAL WATER-TO-WATER HEAT PUMP MAX – 48K BTU / 4 TON
High-performance geothermal heat pump designed as a premium boiler replacement solution, with tested heating water up to 131°F outlet, for efficient heating, cooling, and hot water.
Key Benefits
- Heating water up to 131°F outlet on the high-temperature test
- All-in-one system for heating, cooling, domestic hot water, and pool heating
- Compatible with radiant floors, fan coil units, air handling units, baseboards, and radiators
- High efficiency with a heating COP up to 6.8 on a water loop
- Quiet operation at 48 dB(A)
Specifications
- Recommended coverage: Up to 2,500 ft²
- Rated heating: 14.7 kW / 50,230 BTU/h
- Rated cooling: 12.7 kW / 43,330 BTU/h
- Heating water: up to 131°F outlet (122°F inlet)
- Cooling water: 54°F inlet / 45°F outlet
- Cooling COP: 4.4
- Compressor: Twin rotary DC inverter
- Water connections: 1 in
- Sound level: 48 dB(A)
- Controller: Wi-Fi included
- Application: Residential hydronic heating and cooling systems
Designed in the USA
| Rated heating capacity | 14.7 kW / 50,230 BTU/h |
|---|---|
| Rated cooling capacity | 12.7 kW / 43,330 BTU/h |
| Heating COP, water loop | 3.4–6.8 |
| Heating COP, brine loop | 2.6–5.5 |
| Cooling COP | 4.4 |
| Highest tested heating water | 122°F inlet / 131°F outlet |
| Cooling water | 54°F inlet / 45°F outlet |
| Power supply | 220 V / 1 / 60 Hz |
| Water flow | 9–11 GPM |
| Water connection | 1 in |
| Compressor | Twin rotary DC inverter |
| Sound level | 48 dB(A) |
| Controller | Wi-Fi included |
| Recommended coverage | Up to 2,500 ft² |
- Rated heating capacity
- 14.7 kW / 50,230 BTU/h
- Rated cooling capacity
- 12.7 kW / 43,330 BTU/h
- Heating COP, water loop
- 3.4–6.8
- Heating COP, brine loop
- 2.6–5.5
- Cooling COP
- 4.4
- Highest tested heating water
- 122°F inlet / 131°F outlet
- Cooling water
- 54°F inlet / 45°F outlet
- Power supply
- 220 V / 1 / 60 Hz
- Water flow
- 9–11 GPM
- Water connection
- 1 in
- Compressor
- Twin rotary DC inverter
- Sound level
- 48 dB(A)
- Controller
- Wi-Fi included
- Recommended coverage
- Up to 2,500 ft²
Complete the system
What Our APOLLO Geothermal MAX 4 Ton - 48K BTU Works With
Water heater tank
Store heat and make hot water
The combined buffer and indirect tank stores boiler heat and supplies household hot water — no separate water heater needed.
View detailsModel
DHW120 MAX · 90 gal DHW + 30 gal buffer
$4,121
$3,29620% off
Heating & Cooling Delivery
Heating & cooling with fan coils
Wall, concealed, ceiling, or floor units heat and cool rooms with hot or chilled water. The same thermostat platform controls them.
View detailsModel
Wall-Mounted
Cooling Capacity
1.5 Ton (est. 400-900 ft²)
Pipe Configuration
2-Pipe
$917
$73320% off
Radiant floor distribution
Even heat across every loop
Distributes warm water evenly to each radiant floor zone. The thermostat controls the valve; the manifold station distributes the flow.
View detailsManifold Configuration
Manifold Station MAX 12 Loop
$1,768
$1,41420% off
APOLLO Wi-Fi Thermostat
Smart control for every room
A dedicated fan coil thermostat runs the unit on a schedule and only when there is real demand, reducing energy use and improving room-by-room comfort.
View detailsModel
Fan Coil Thermostat · 2/4-pipe FCU
Electrical Supply
12–24 V AC/DC
$327
$26120% off
Pool Heating
Optional Pool Heating
Pool heating can be added to the hydronic plan when the right heat exchanger, controls, and sizing are selected for the pool and climate.
