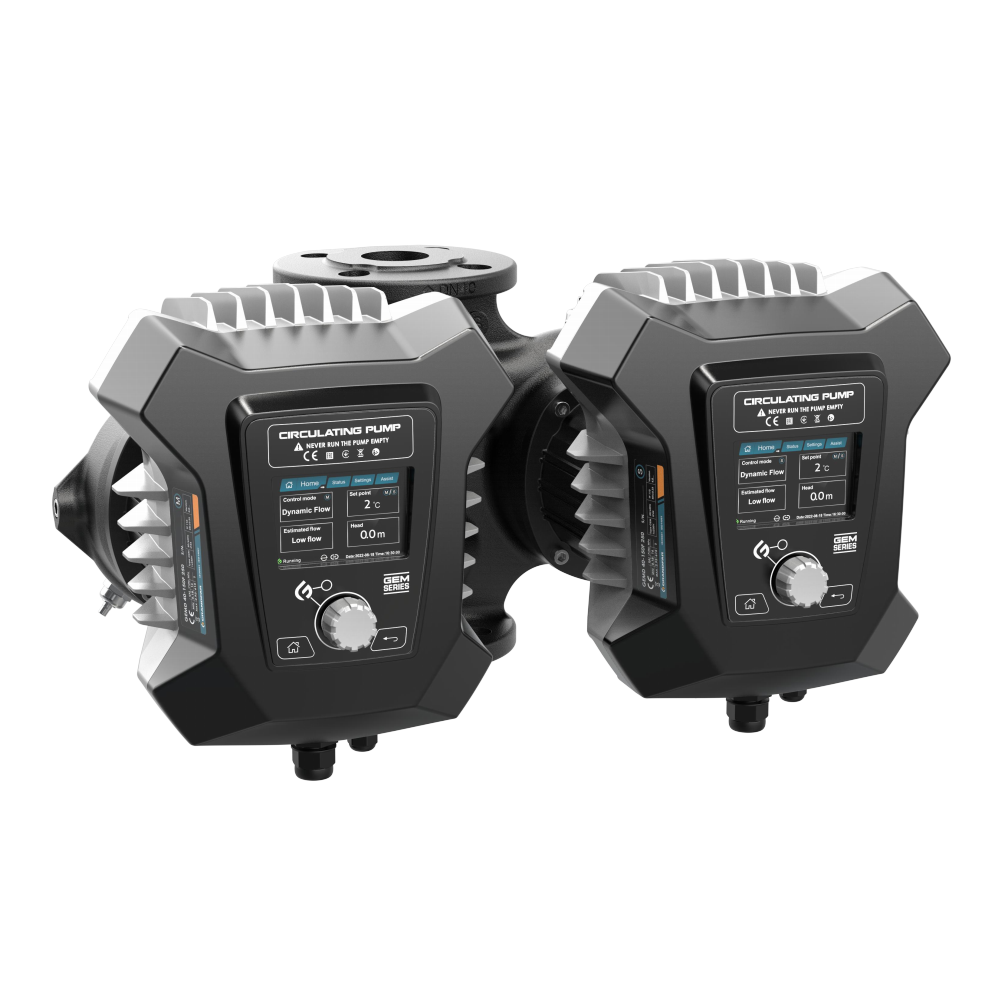

Circulator Pump — 4" VFD Tango (Grundfos MAGNA3 Replacement)
Pump High Efficiency 4" - 120F VFD Tango Pump
Variable-frequency-drive circulation in a 4-inch connection size, positioned as a Grundfos MAGNA3 replacement.
$9,951
$6,96630% OFF
Shipping$1,393Free
Save 30%
- Free shipping
- Secure checkout
Need help choosing?
Product details
- VFD counterpart to the 4" Gem…
- 277 GPM max flow, 40 ft…
- 31.11–1523W power range

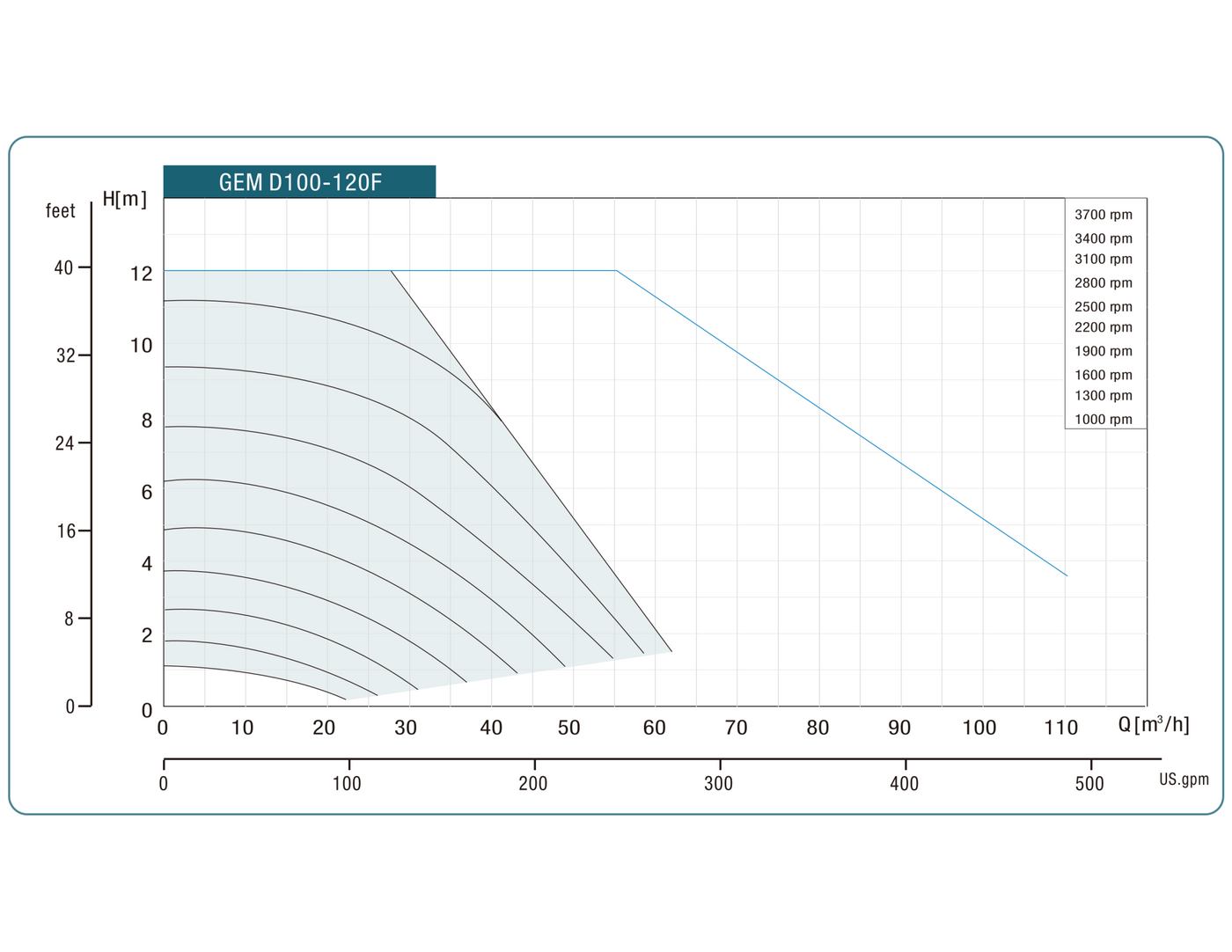

- Full flow/head/pressure/weight specs published
Pump High Efficiency 4" - 120F VFD Tango Pump
Variable-speed VFD (Tango) flange circulator pump for 208-230V systems, designed for high-flow circulation up to 120°F.
Key Benefits
- VFD (Tango) control for adjustable performance
- High flow capability up to 277 GPM
- Designed for 208-230V installations
Specifications
- Thread Size: 4"
- Power Usage: 31.11 to 1523W
- Max Flow Rate: 277 GPM
- Max Head: 40 ft
- Max Pressure: 87 psi (PN6)
- Net Weight: 137 lb
- Gross Weight: 158 lb
| Connection | 4" |
|---|---|
| Max flow | 277 GPM |
| Max head | 40 ft |
| Power | 31.11–1523W |
| Max pressure | 87 psi |
| Weight (net/gross) | 137 lb / 158 lb |
| Included hardware | NPT flanges, stainless hardware, pre-mold body insulation |
| Rated max liquid temperature | 120°F (not the family's advertised 50–180°F ceiling — this specific model tops out lower) |
- Connection
- 4"
- Max flow
- 277 GPM
- Max head
- 40 ft
- Power
- 31.11–1523W
- Max pressure
- 87 psi
- Weight (net/gross)
- 137 lb / 158 lb
- Included hardware
- NPT flanges, stainless hardware, pre-mold body insulation
- Rated max liquid temperature
- 120°F (not the family's advertised 50–180°F ceiling — this specific model tops out lower)
