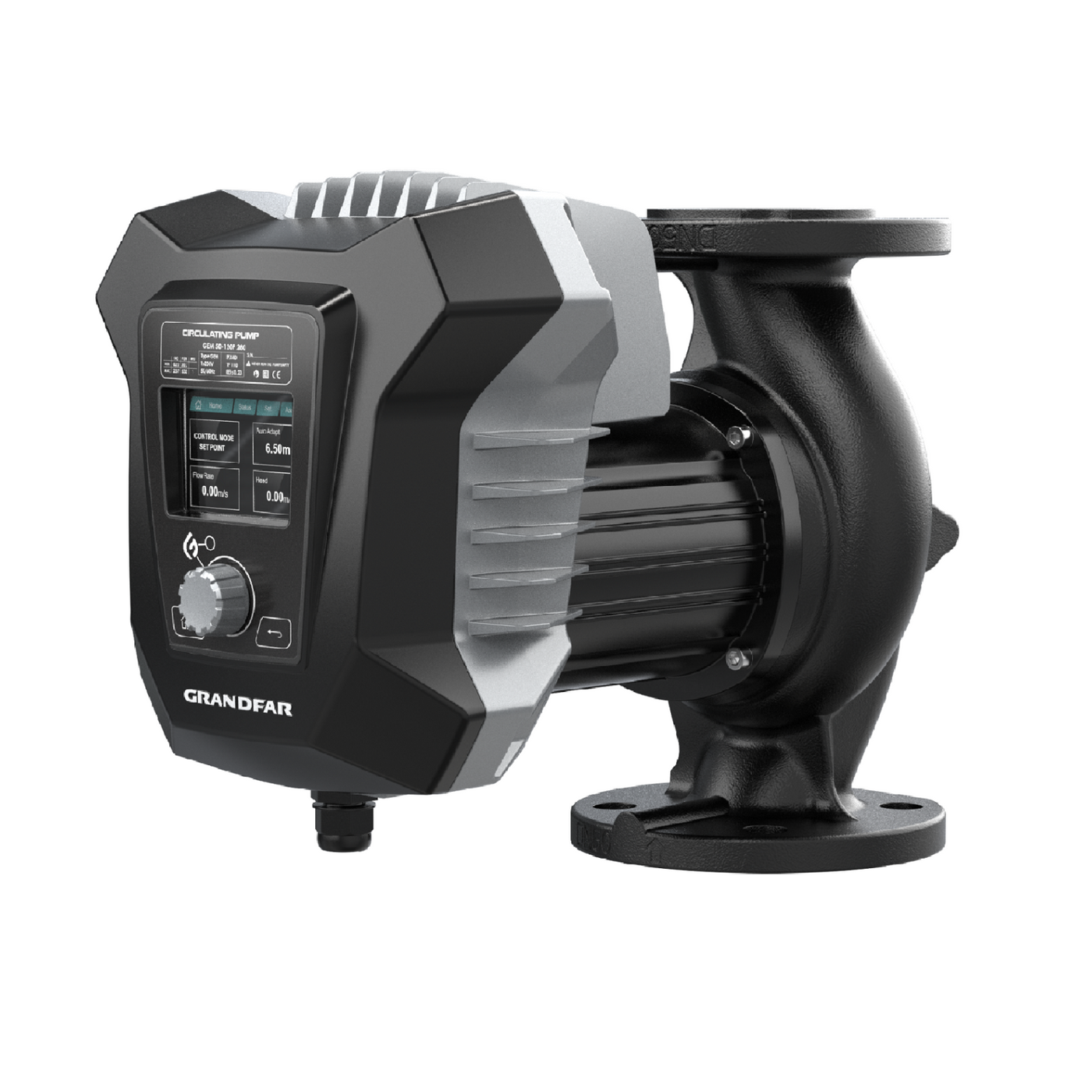

Circulator Pump — 2-1/2" Gem (Grundfos MAGNA3 Replacement)
Pump High Efficiency 2-1/2" 65-150F
Part of the "Gem" family of high-flow ECM variable-speed circulators, marketed as a direct Grundfos MAGNA3 50-120F replacement.
$3,297
$2,30830% OFF
Shipping$462Free
Save 30%
- Free shipping
- Secure checkout
Need help choosing?
Product details
- Direct replacement for Grundfos MAGNA3 50-120F

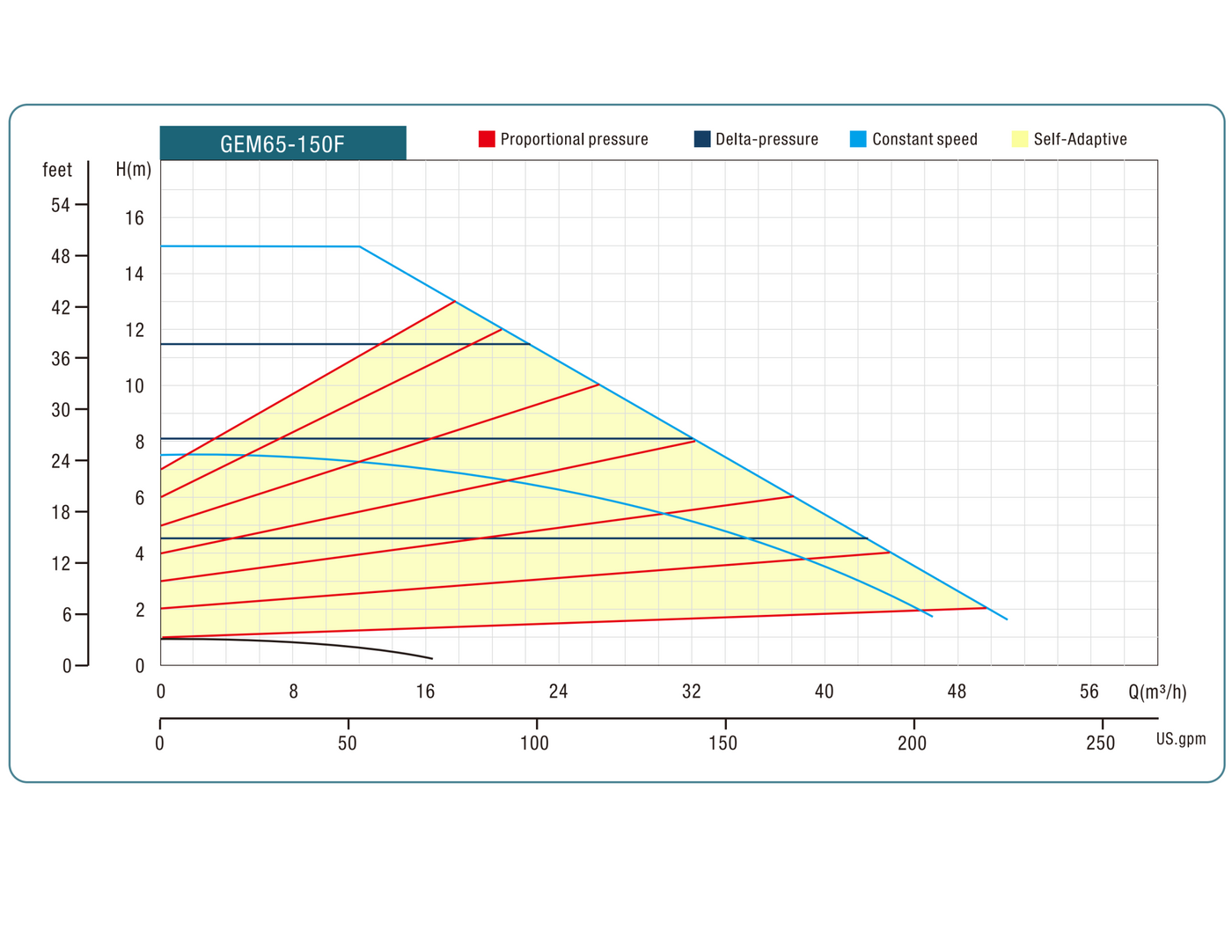

- 215 GPM max flow, 49 ft max head
- 31–1263W power range
- 65°F–150°F operating range
Pump High Efficiency 2-1/2" 65-150F
Variable-speed flange circulator pump for 208-230V systems, optimized for 65°F to 150°F applications with high-flow performance.
Key Benefits
- Variable-speed control for efficient operation
- High flow up to 215 GPM
- Designed for 208-230V installations
Specifications
- Size: 2-1/2" (DN65)
- Power Usage: 31 to 1263W
- Max Flow Rate: 215 GPM
- Max Head: 49 ft
- Max Pressure: 87/145 psi (PN6/10)
- Net Weight: 56 lb
- Gross Weight: 52 lb
| Replaces | Grundfos MAGNA3 50-120F |
|---|---|
| Connection | 2-1/2" (DN65) |
| Max flow | 215 GPM |
| Max head | 49 ft |
| Power | 31–1263W |
| Max pressure | 87/145 psi |
| Operating temperature range | 65°F–150°F |
| Included hardware | NPT flanges, stainless hardware, pre-mold body insulation |
- Replaces
- Grundfos MAGNA3 50-120F
- Connection
- 2-1/2" (DN65)
- Max flow
- 215 GPM
- Max head
- 49 ft
- Power
- 31–1263W
- Max pressure
- 87/145 psi
- Operating temperature range
- 65°F–150°F
- Included hardware
- NPT flanges, stainless hardware, pre-mold body insulation
