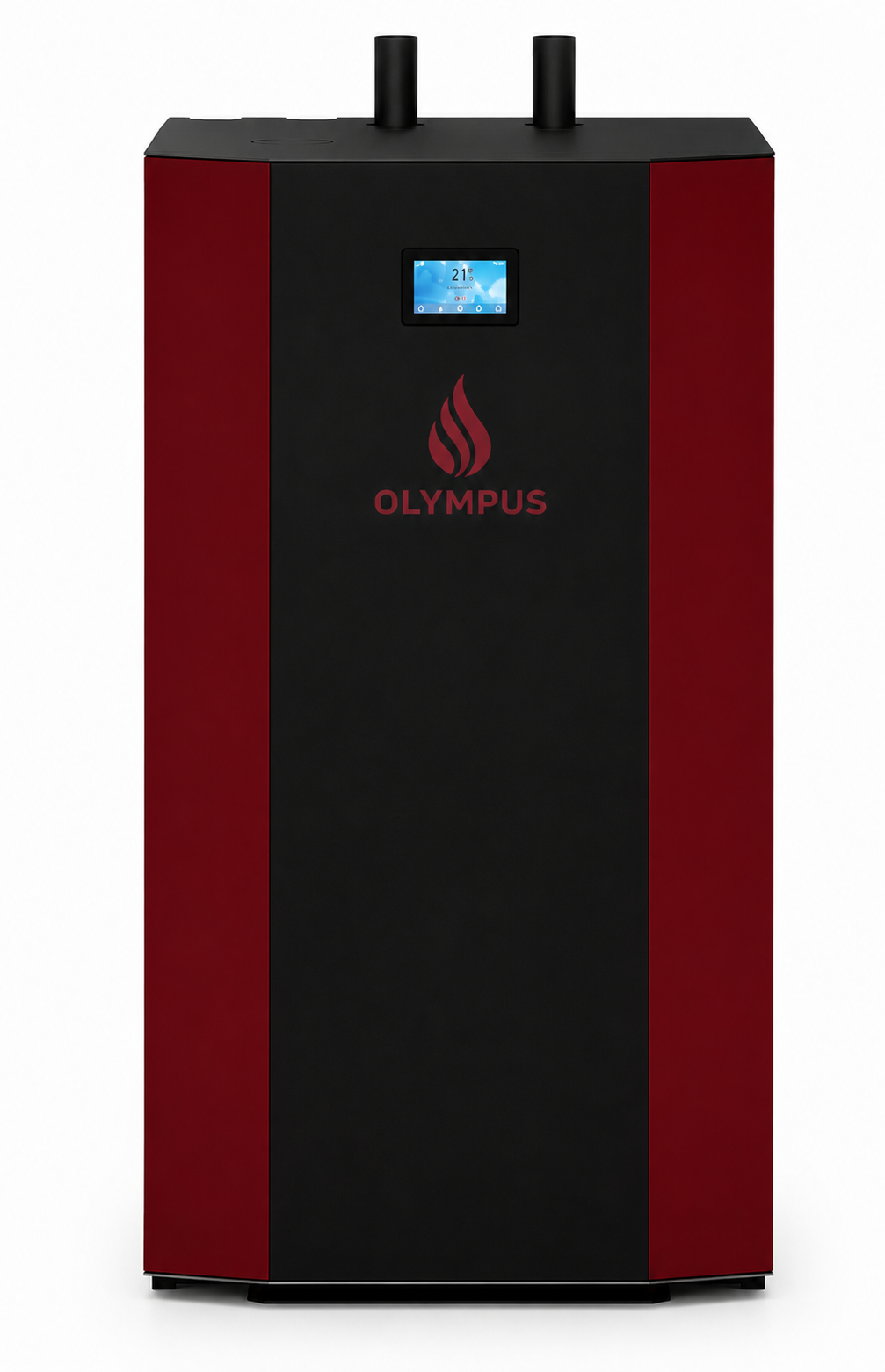

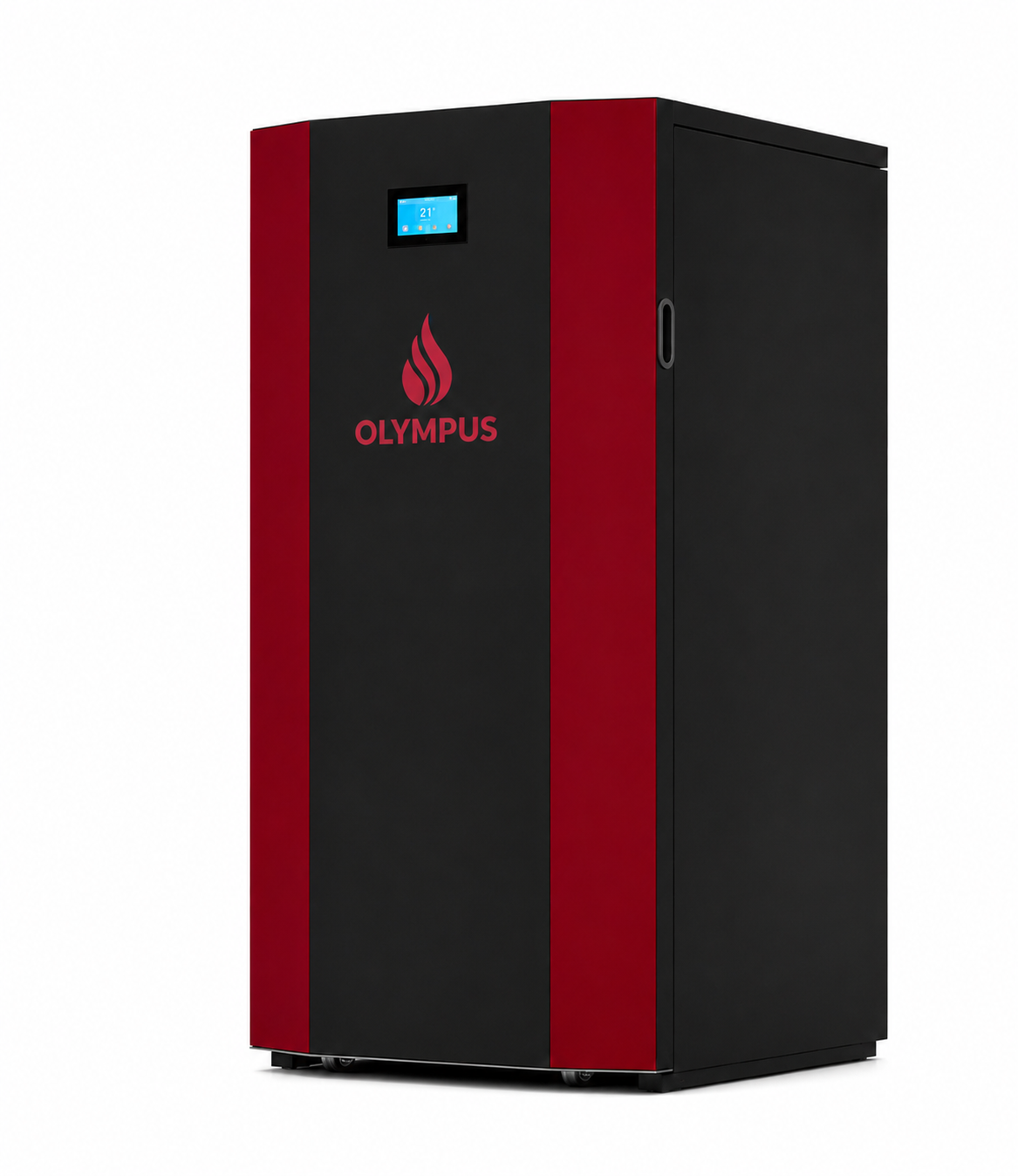

OLYMPUS Pellet Boiler

OLYMPUS Pellet Boiler

Olympus Pellet Boiler is an automatic hydronic heating system designed to provide efficient and reliable heating using wood pellets as fuel. It features automatic pellet feeding and ignition, combustion and airflow control, and a touchscreen controller for convenient operation. The boiler is designed for integration with hydronic heating systems, buffer tanks, and domestic hot water systems, providing a flexible and efficient heating solution.

Key Benefits

• High-Efficiency Pellet Combustion – Bottom-feed burner delivers efficient, stable combustion with low ash production.

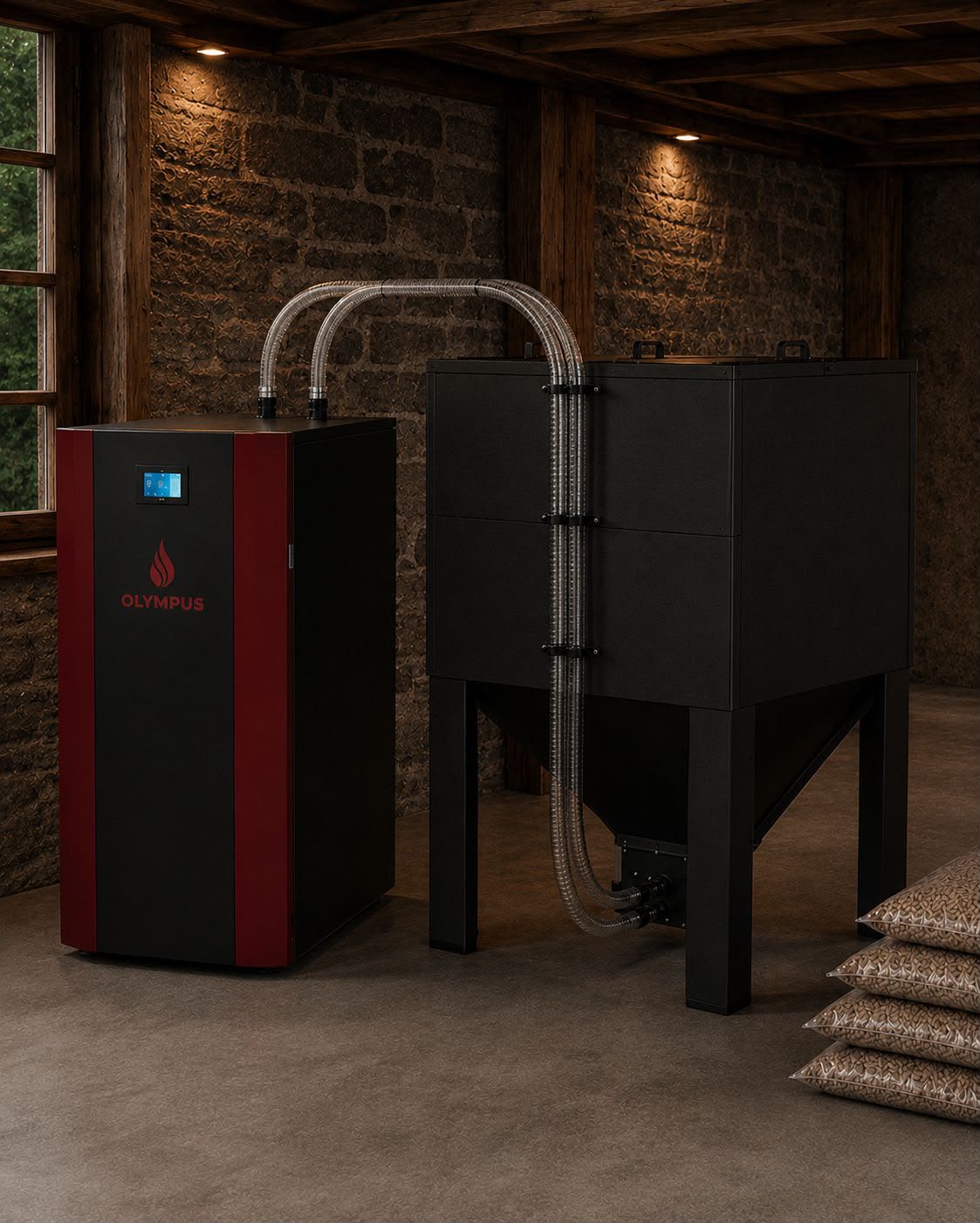

• Automatic Pellet Feeding – Integrated vacuum feeding system automatically supplies pellets for convenient, hands-free operation.
• Automatic Cleaning – Automatic cleaning of the combustion chamber and ashtray reduces maintenance requirements.
• Advanced Combustion Control – Automatically manages combustion and airflow for consistent heating performance.
• High-Efficiency Insulation – Minimizes heat loss and directs more energy into the hydronic heating system.
• Large-Capacity Ash Container – Reduces the frequency of ash removal for longer unattended operation.
• Easy Touchscreen Control – Intuitive touchscreen interface provides simple control of boiler operation and settings.
• Weekly Scheduling – Programmable operating schedules provide convenient automatic heating control.
• Overheating Protection – Built-in safety protection helps protect the boiler during abnormal operating conditions.
• Wi-Fi Connectivity – Optional Wi-Fi module enables convenient remote monitoring and control from a smartphone.

Specifications

• Heating Capacity: 75 KBTU / 160 KBTU
• Efficiency Rating: Over 94%
• Maximum Water Temperature: 194°F (90°C)
• System Operating Pressure: 43.5 PSI

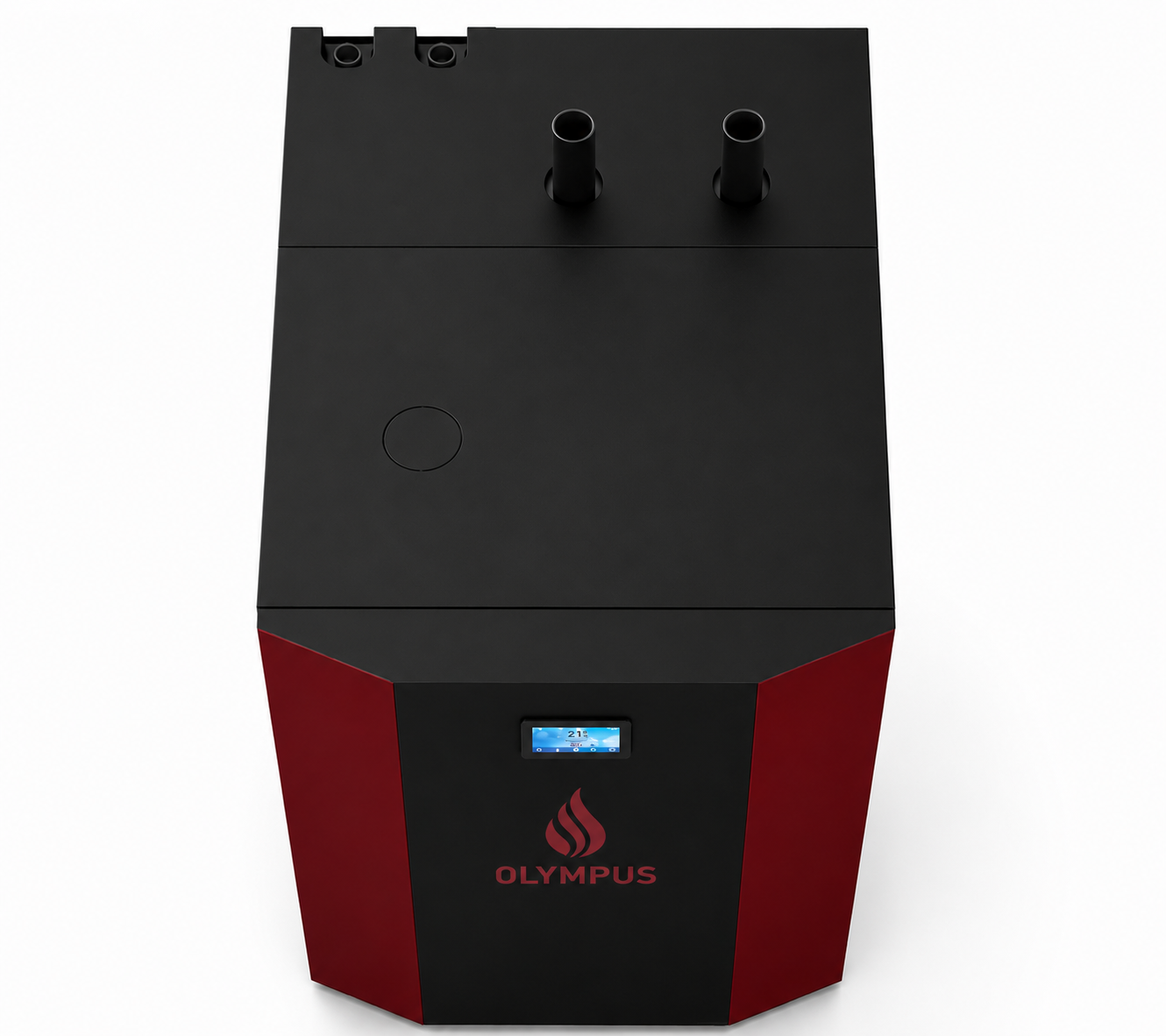

• Exhaust Vent Pipe Flue: 4" & 6"
• Fresh Combustion Air Inlet: 2 1/2” for 75 KBTU / 3” for 160 KBTU
• Water Jet Capacity: 21 gal - 32 gal
• Fuel Type: Wood pellets, Wood Pellets 1/4" - 3/8"
• Electrical Supply: 230V 50Hz
