HPS Communication Module (Transmitter & Receiver)

Is an advanced communication module designed to provide a robust connection between your heat pump and a centralized heat pump station using an Ethernet straight-through cable. Engineered with a conformal coating to protect against environmental damage, the COM Module ensures reliable and efficient data transmission, optimizing the performance and monitoring capabilities of your heating system.

Key Features:

• Ethernet Connectivity: Utilizes Ethernet straight-through cable for reliable, high-speed communication.
• Conformal Coating: Board protected with conformal coating for enhanced durability and resistance to environmental factors.
• Plug-and-Play Installation: Easy setup with user-friendly interface and straightforward connections.
• Secure and Isolated Communication: Features isolation for Ethernet communication to ensure secure data transfer and system integrity.
• Includes 10m Ethernet Cable: Comes with a 33-feet (10 meter) Ethernet straight-through cable for immediate and flexible installation.

Specifications:

• Communication Protocol: Ethernet, Isolation 485 communication
• Interfaces:

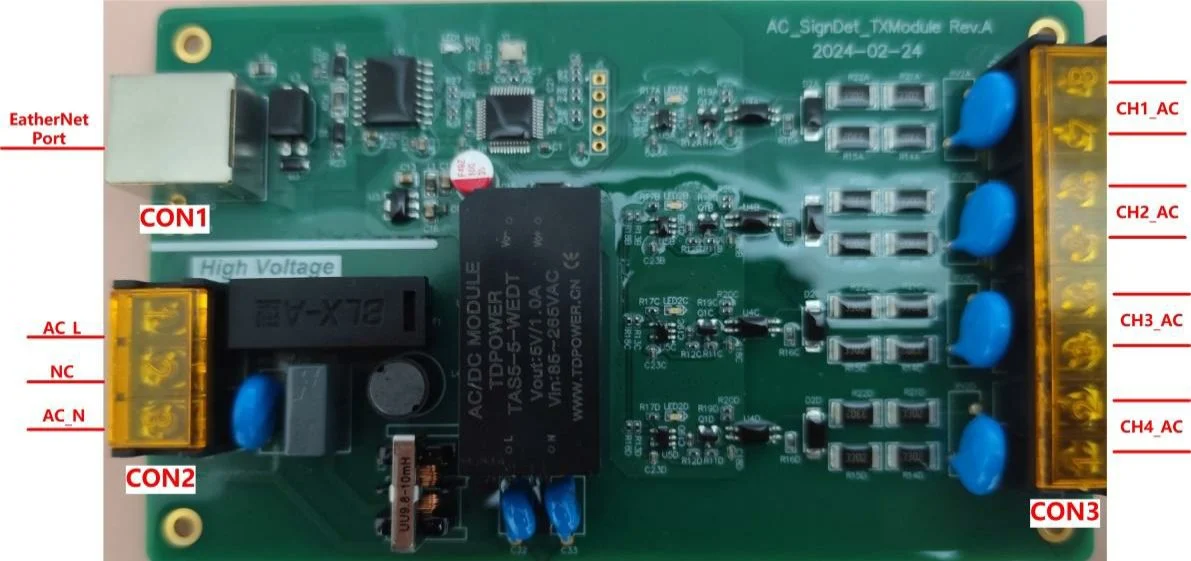

  • Transmitter:
    • CON1: Ethernet Port (Use parallel network cables only)
    • CON2: Power Supply (85V-265VAC 50/60Hz)
    • CON3: CH1-CH4 AC Signal Input (0-280VAC)
  • Receiver:
    • CON1: Ethernet Port (Use parallel network cables only)
    • CON2: Power Supply (85V-265VAC 50/60Hz)
    • CON3: CH1-CH4 Output
    • CON4: CH1 Switching Port (Input impedance ≤ 200 Ω)
• Indicators:
  • Communication Indicator: Flashes during normal communication, stays on during errors.
  • AC Signal Indicators: CH1-CH4 LEDs show status based on input signals.
• Power Supply: 85V-265VAC 50/60Hz
• Communication Distance: >80m
• Isolation Withstand Voltage: 1500V DC
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 10% to 90% non-condensing
• Dimensions: 120mm x 80mm x 30mm
• Mounting: DIN rail or wall mountable
• Certifications: CE, RoHS, UL
