General-Purpose Water-to-Water HX

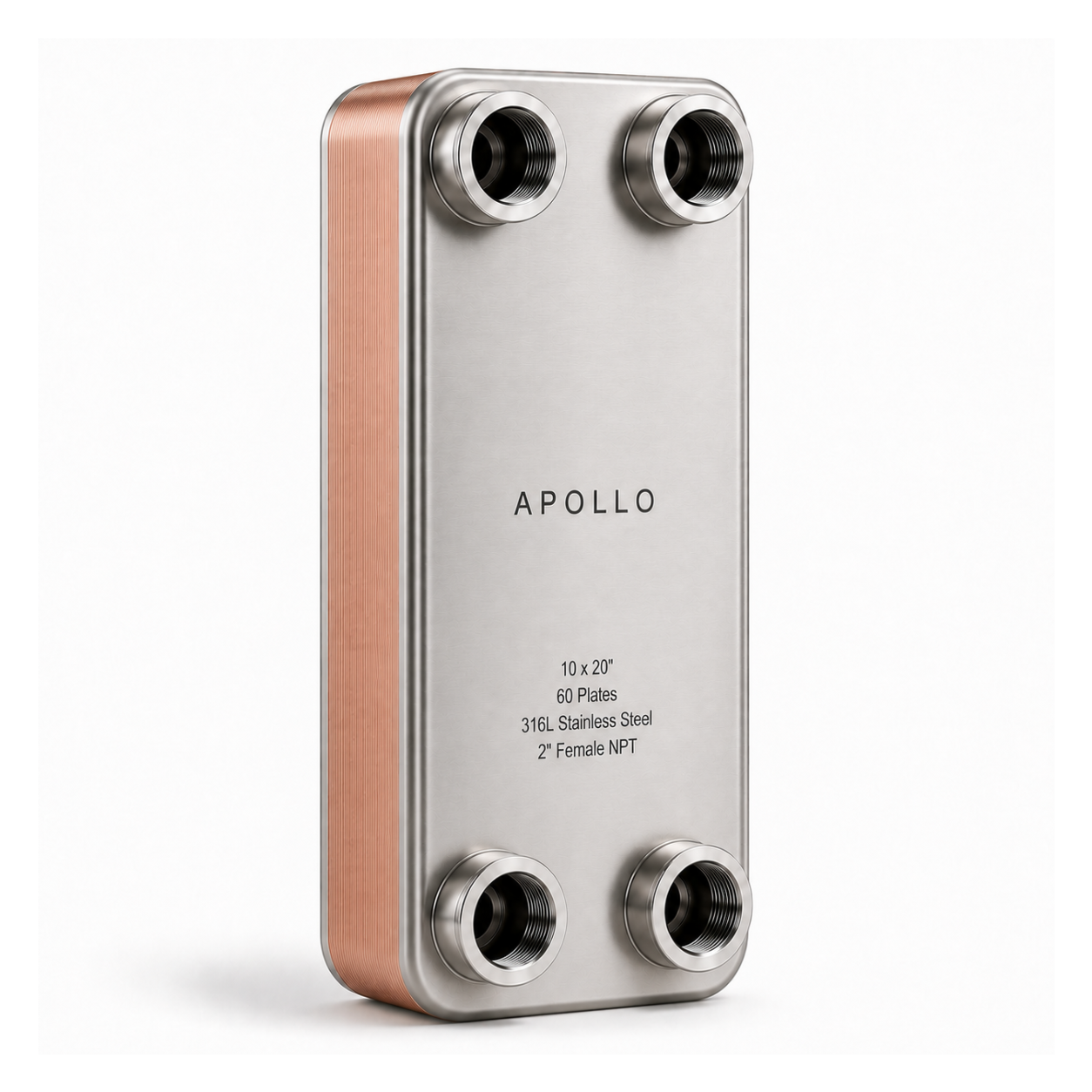

APOLLO Brazed Plate Heat Exchanger (BPHX)
A general-purpose water-to-water heat exchanger that isn't tied to one specific MBTEK product line — it's used across heat pump, boiler, chiller, refrigeration, and general hydronic system applications wherever two water loops need to exchange heat without mixing.
Size
10 x 20"
Plate
100
$4,108
$2,87630% OFF
Shipping$575Free
Save 30%
- Free shipping
- Secure checkout
Need help choosing?
Product details
- General-purpose water-to-water heat exchanger for heat…
- Fully brazed construction
- 316L stainless steel body with 99.9%…
- Three port-size options scale with plate count
Brazed Plate Heat Exchanger (BPHX) – Compact High-Efficiency Heat Exchanger
Compact and highly efficient heat exchanger designed for demanding HVAC, hydronic, and industrial applications, featuring a gasket-free brazed construction for durability and reliability.
Key Benefits
- Compact and lightweight design ideal for space-constrained installations
- High thermal efficiency with turbulent flow for maximum heat transfer
- Leak-proof brazed construction with no gaskets or maintenance required
- Corrosion-resistant materials for long service life
- Handles high pressure and extreme temperatures
- Versatile use across HVAC, refrigeration, and hydronic systems
- Customizable configurations with different plate quantities
Specifications
- Material: 316L Stainless Steel + 99.9% Copper
- Ports:

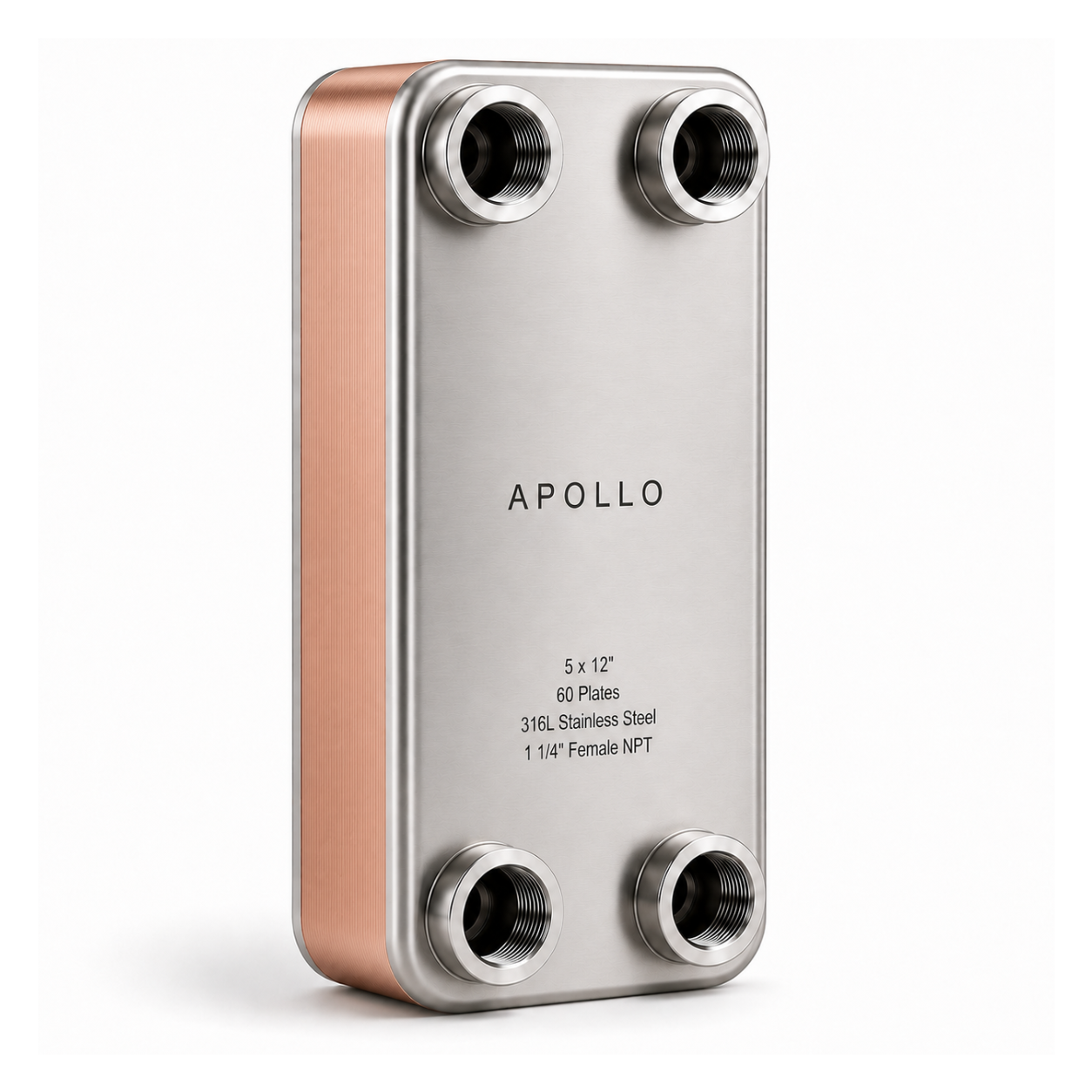

- 5" x 12": 1 1/4" Female NPT
- 10" x 20": 2" Female NPT

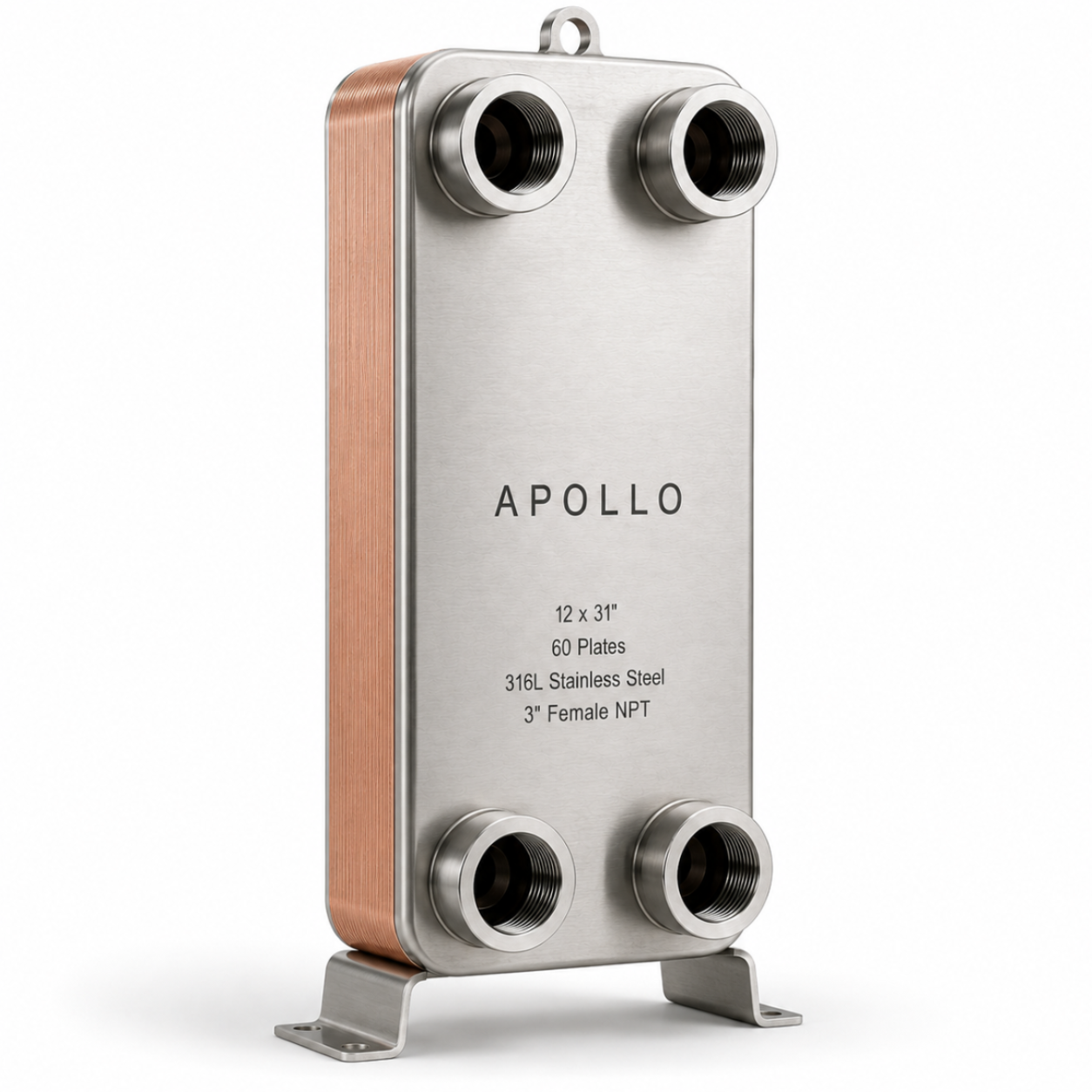

- 12" x 31": 3" Female NPT
- Plate Quantity: 30 / 60 / 100
- Design Pressure (Max): 435 PSI
- Test Pressure (Min): 652 PSI
- Design Temperature: -256°F to 437°F
Compatibility
Suitable for heat pumps, boilers, chillers, refrigeration systems, and hydronic applications, offering efficient heat exchange in both residential and commercial systems
| Construction | Fully brazed, no gaskets |
|---|---|
| Body material | 316L stainless steel |
| Braze material | 99.9% copper |
| Port sizes | 1-1/4" NPT (5"×12"), 2" NPT (10"×20"), 3" Flange NPT (12"×31") |
| Plate quantity options | 30 / 60 / 100 |
| Design pressure | 435 PSI max (test pressure 652 PSI min) |
| Design temperature | -256°F to 437°F |
- Construction
- Fully brazed, no gaskets
- Body material
- 316L stainless steel
- Braze material
- 99.9% copper
- Port sizes
- 1-1/4" NPT (5"×12"), 2" NPT (10"×20"), 3" Flange NPT (12"×31")
- Plate quantity options
- 30 / 60 / 100
- Design pressure
- 435 PSI max (test pressure 652 PSI min)
- Design temperature
- -256°F to 437°F
