ERV — Heat Pump (active climate control)
APOLLO Heat Pump ERV
Self-contained R32 inverter heat pump plus ERV core for active heating, cooling, humidity control, and fresh air.
Size
AP-ERV-HP-35
$4,479
$3,13530% OFF
Shipping$761Free
Save 30%
- Free shipping
- Secure checkout
Need help choosing?
Product details
- Five automatic modes
- Sensor-driven operation
- R32 inverter heat pump
- Three-model range

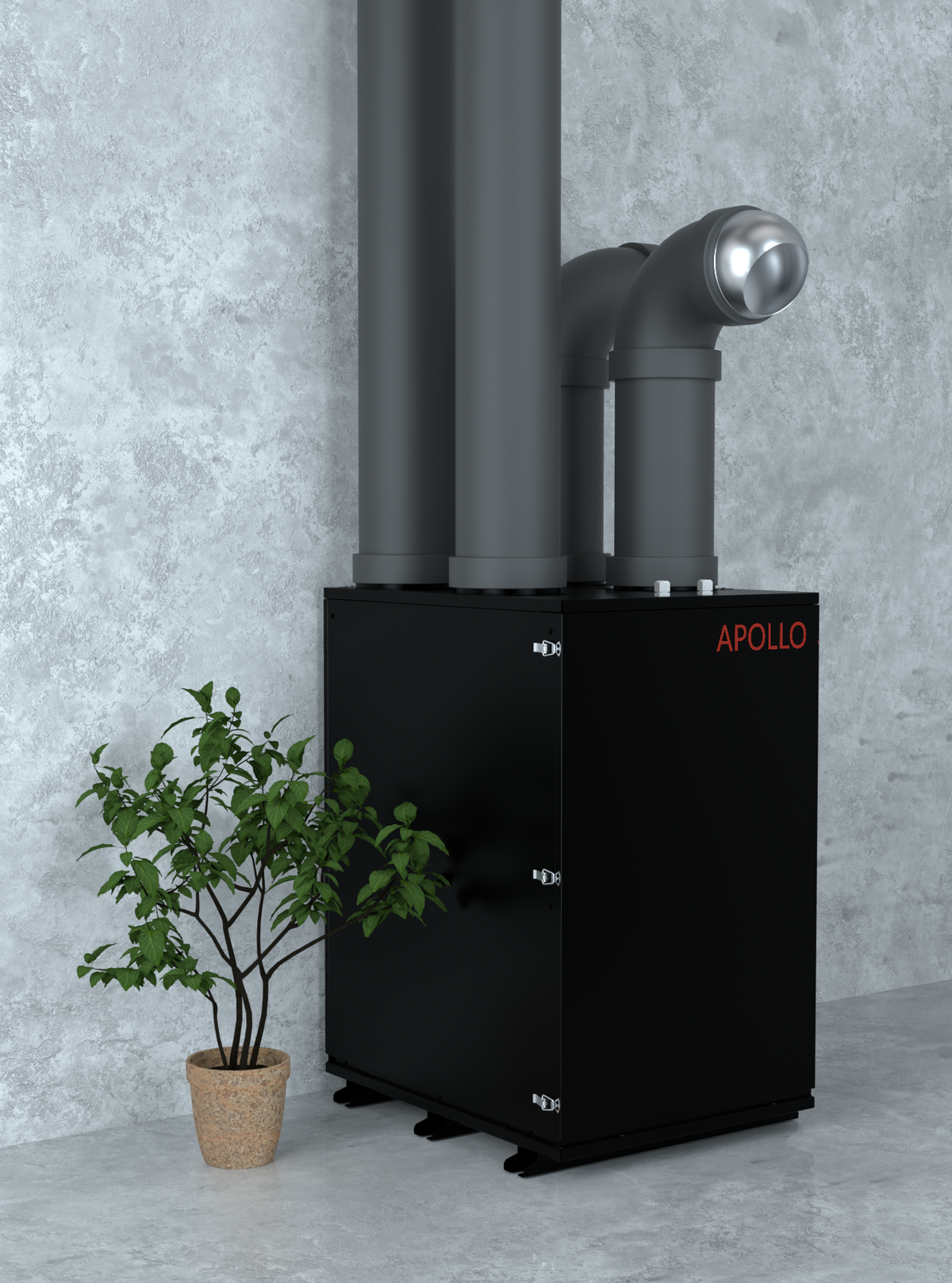

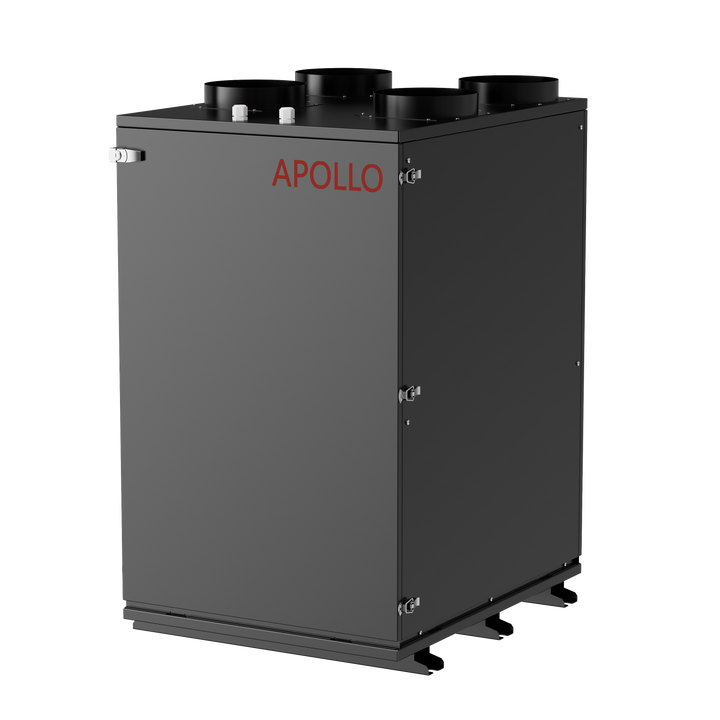

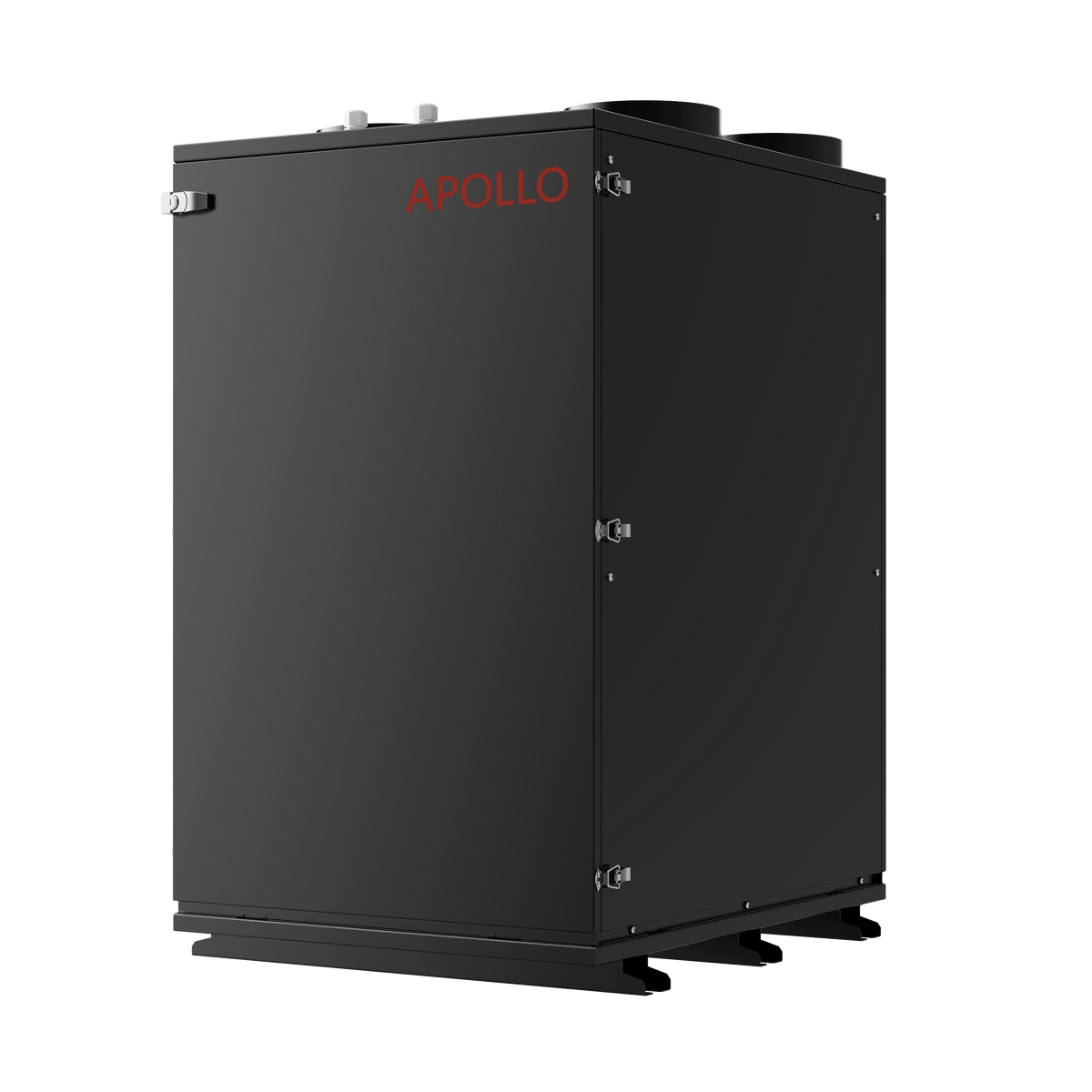

APOLLO ERV Heat Pump
The APOLLO ERV Heat Pump is an all-in-one fresh air ventilation system that combines energy recovery ventilation, heating, cooling, dehumidification, and smart indoor air quality control in one advanced unit.
Designed for residential and commercial applications, this heat pump ERV brings in fresh, filtered outdoor air while recovering energy from exhaust air and using DC inverter heat pump technology to support efficient indoor comfort year-round.
Available in multiple models — AP-ERV-HP-35, AP-ERV-HP-60, and AP-ERV-HP-95 — the system can be selected based on airflow, capacity, and project requirements. For full technical details, please check the Specs and Manuals tabs at the bottom of this page.
Key Benefits
- ERV heat pump system for fresh air ventilation, heating, cooling, and dehumidification
- Energy recovery ventilation helps reduce heating and cooling energy loss
- DC inverter heat pump technology adjusts performance for efficient operation
- Continuously supplies fresh, filtered outdoor air while exhausting stale indoor air
- Smart indoor air quality control with temperature, humidity, CO₂, and PM2.5 display options
- Multiple operating modes including cooling, heating, auto, dehumidification, and ventilation
- Available in several sizes for different airflow, capacity, and project needs
- Suitable for homes, offices, commercial spaces, and fresh air HVAC projects
General Specifications
- Product Type: ERV heat pump with fresh air ventilation
- Available Models: AP-ERV-HP-35, AP-ERV-HP-60, AP-ERV-HP-95
- System Type: Fresh air heat pump with energy recovery ventilation
- Rated Airflow: 206 to 559 CFM, depending on model
- Functions: Ventilation, heating, cooling, dehumidification, and indoor air quality monitoring
- Power Supply: 220V / 1 Phase / 50-60Hz
- Refrigerant: R32
- Operating Temperature: 5°F to 122°F
- Fan Speed: Up to 10 speeds
- Filtration: G4 filters and F8 filter
- Control Options: Touch screen controller and WiFi module
Detailed airflow, capacity, dimensions, wiring, installation, maintenance, and controller settings are available in the Specs and Manuals tabs below.
| Model range | AP-ERV-HP-35, -60, -95 |
|---|---|
| Rated airflow | 206–559 CFM |
| External static pressure | 0.40 in H2O at 176–530 CFM |
| Temperature efficiency (winter / summer) | 76.5–77.65% / 65.1–72.5% |
| Enthalpy efficiency (winter / summer) | 67.1–76.56% / 62.23–69.4% |
| Nominal cooling capacity | 3,798–8,293 W |
| Nominal heating capacity | 4,631–8,870 W |
| Input power | 790–1,487 W heating/cooling; 185–788.3 W ventilation |
| Noise | 37/42 to 41/46 dB(A) |
| Dimensions / weight | 26.6–29.1 × 30.0–42.9 × 39.0–44.5 in; 298–430 lb |
| Power / refrigerant / operating range | 220V 1P 50/60Hz, R32, 5°F to 122°F |
- Model range
- AP-ERV-HP-35, -60, -95
- Rated airflow
- 206–559 CFM
- External static pressure
- 0.40 in H2O at 176–530 CFM
- Temperature efficiency (winter / summer)
- 76.5–77.65% / 65.1–72.5%
- Enthalpy efficiency (winter / summer)
- 67.1–76.56% / 62.23–69.4%
- Nominal cooling capacity
- 3,798–8,293 W
- Nominal heating capacity
- 4,631–8,870 W
- Input power
- 790–1,487 W heating/cooling; 185–788.3 W ventilation
- Noise
- 37/42 to 41/46 dB(A)
- Dimensions / weight
- 26.6–29.1 × 30.0–42.9 × 39.0–44.5 in; 298–430 lb
- Power / refrigerant / operating range
- 220V 1P 50/60Hz, R32, 5°F to 122°F
