The best companion of our ERV units
Designed in the USA

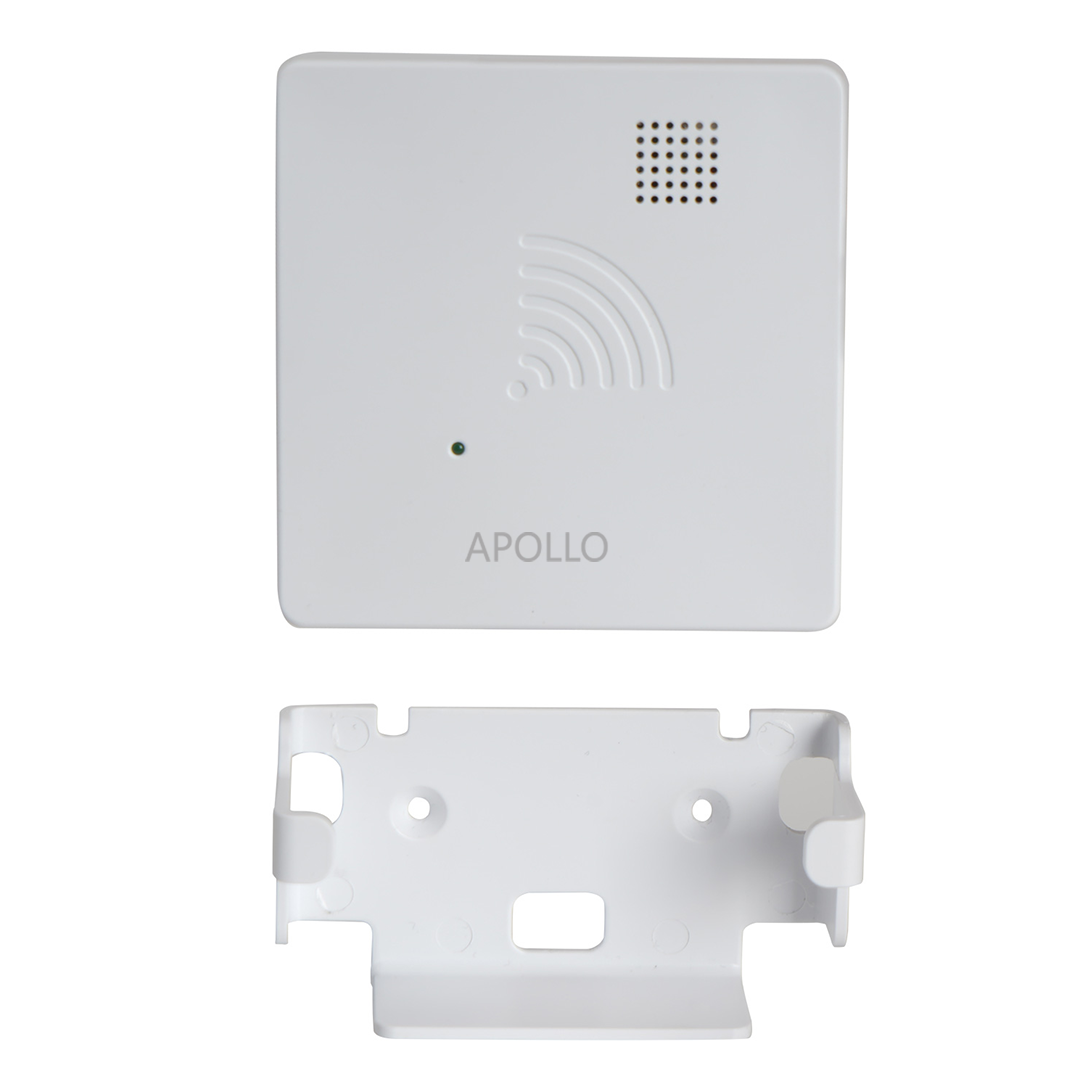

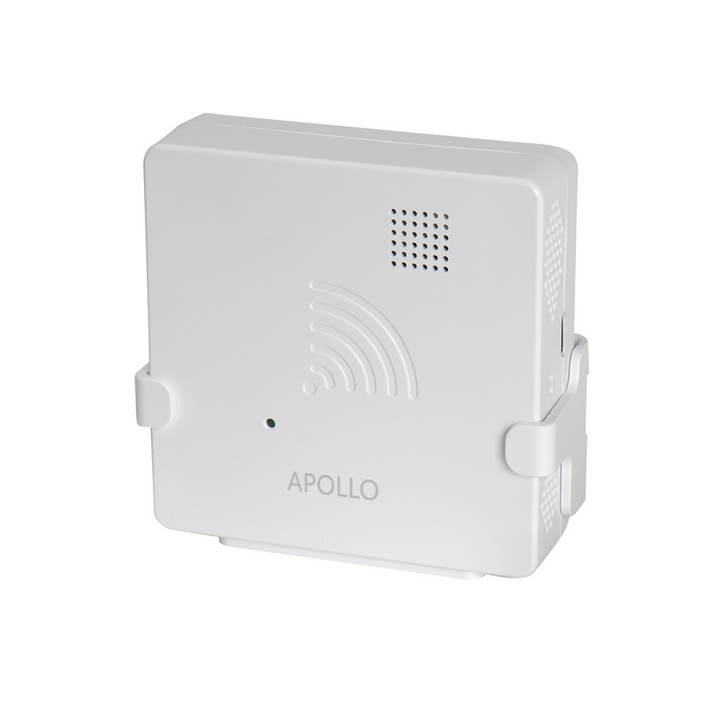

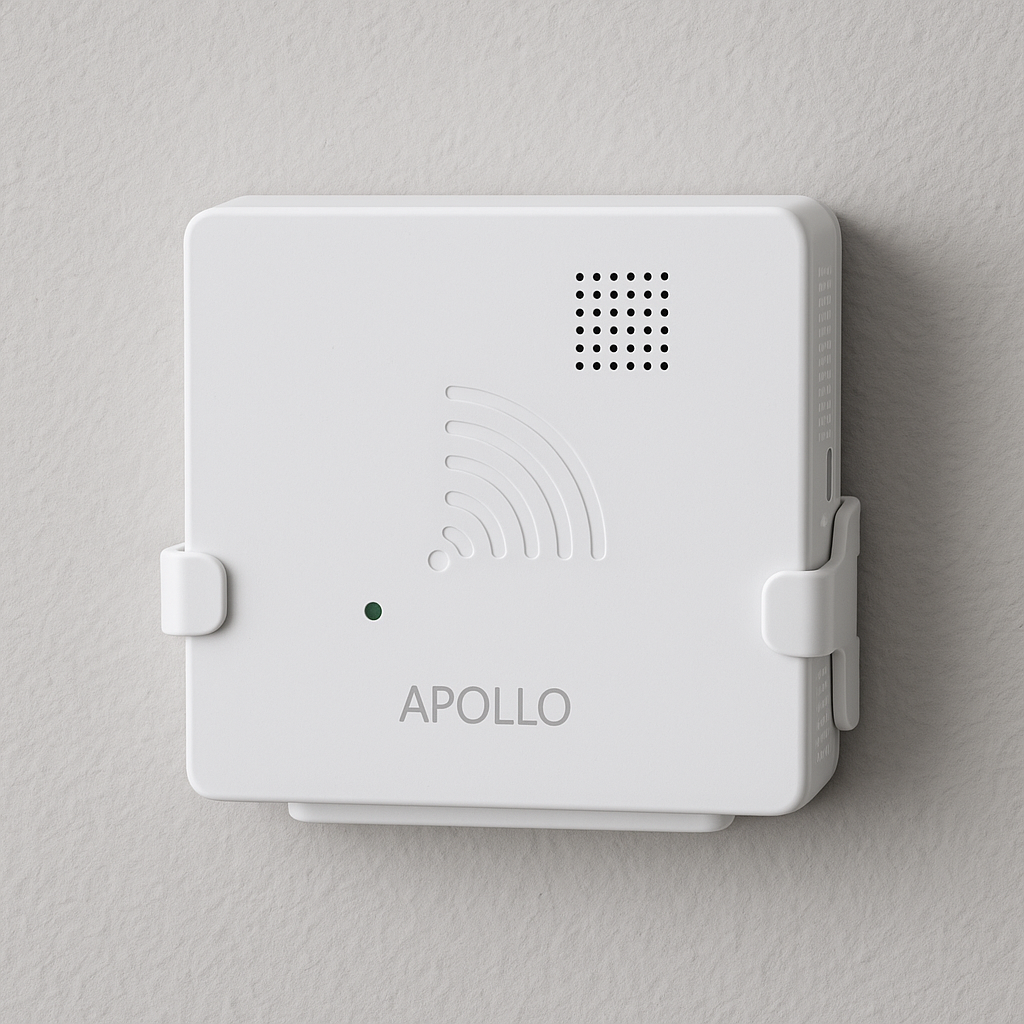

The Wireless Indoor Air Quality (IAQ) Monitoring Module is a versatile, Wi-Fi enabled device that tracks key indoor air parameters, including temperature, CO₂ levels, humidity, VOC (Volatile Organic Compounds), and PM2.5 particulates. Designed to work seamlessly with heat and energy recovery ventilators (ERVs), it can adjust ventilation settings automatically based on real-time data, optimizing indoor air quality.
Detection and Power Specs:
• Detection Types: Temperature, CO₂, humidity, VOC, PM2.5.
• Power: 5V DC via Type-C USB port.
Key Features:
• Wireless with WiFi 2.4G connectivity (not compatible with 5G).
• Long transmission distance and stable data.
• Linkable with an app for real-time data viewing and control of ERV settings.
• Free-standing, no wiring or installation needed; suitable for desks, bedsides, or other places.
Technical Specifications:
• Model: AS-AQ010Z-2.
• Input Power: Module requires DC 5V, typically via a USB Type-C connection.
• Operating Range: Temperature from -15°C to 50°C, Humidity from 20% to 90% RH (non-condensing).
For accurate readings, the module includes a built-in fan that runs intermittently to refresh the internal air sample, producing minor vibration and sound. It’s recommended to keep the ventilation channels clear and avoid placement near heat sources or on surfaces like beds or thick fabrics that could obstruct airflow.
