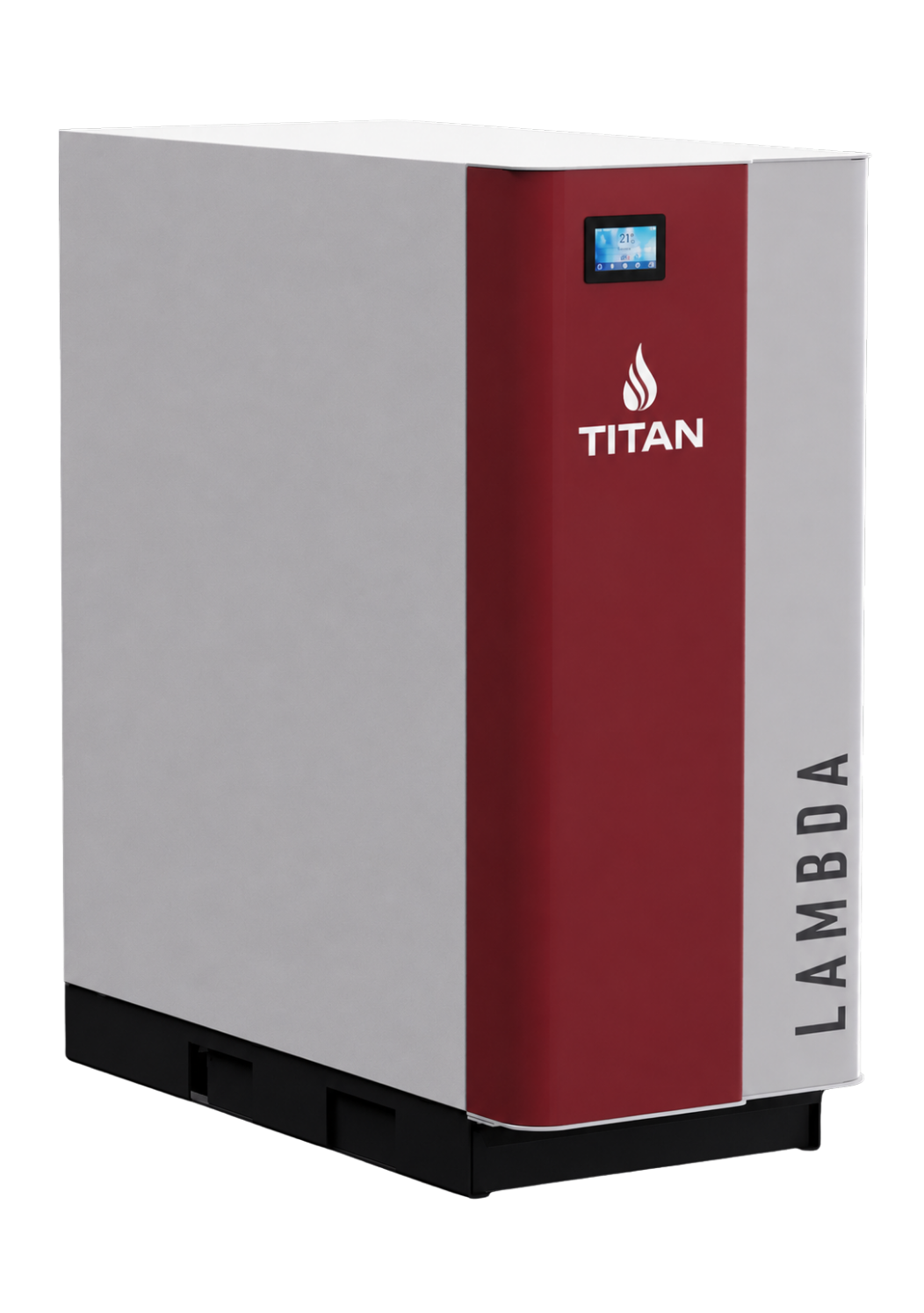

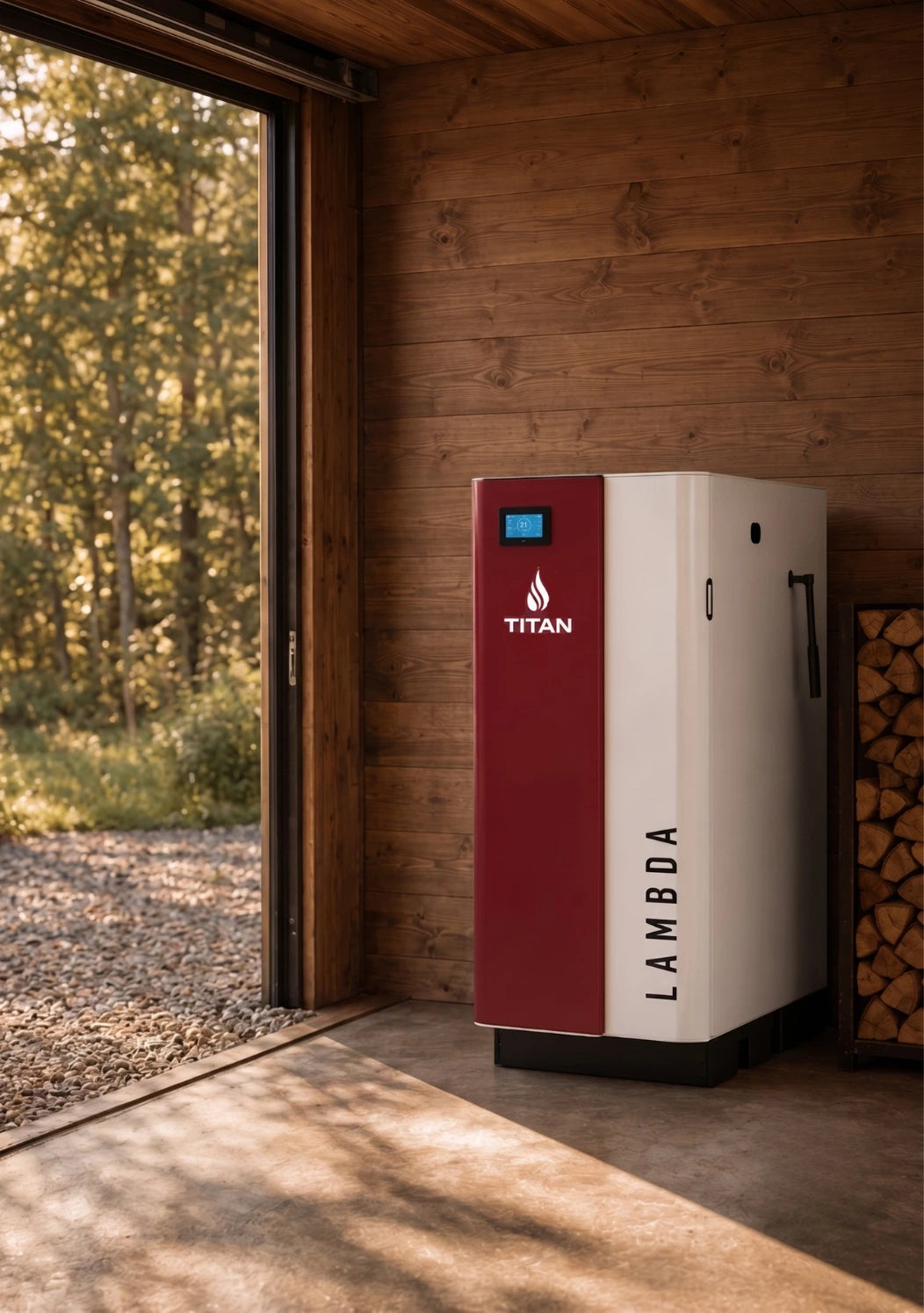

TITAN Lambda Wood Gasification Boiler 110K-175K BTU front right three-quarter view

1 / 6

TITAN Lambda — Advanced Wood Gasification

TITAN Lambda Wood Gasification Boiler, 110K-175K BTU

MBTEK's highest-efficiency wood boiler — automatic ignition and lambda-sensor combustion control, up to 95% efficiency.

Model
TITAN Lambda 110K BTU

Product added to cart.

View cart

What Our TITAN Lambda Wood Gasification Boiler, 110K-175K BTU Works With

  • Free shipping
  • Secure checkout

Need help choosing?

Call one of our specialistsUse our System Builder

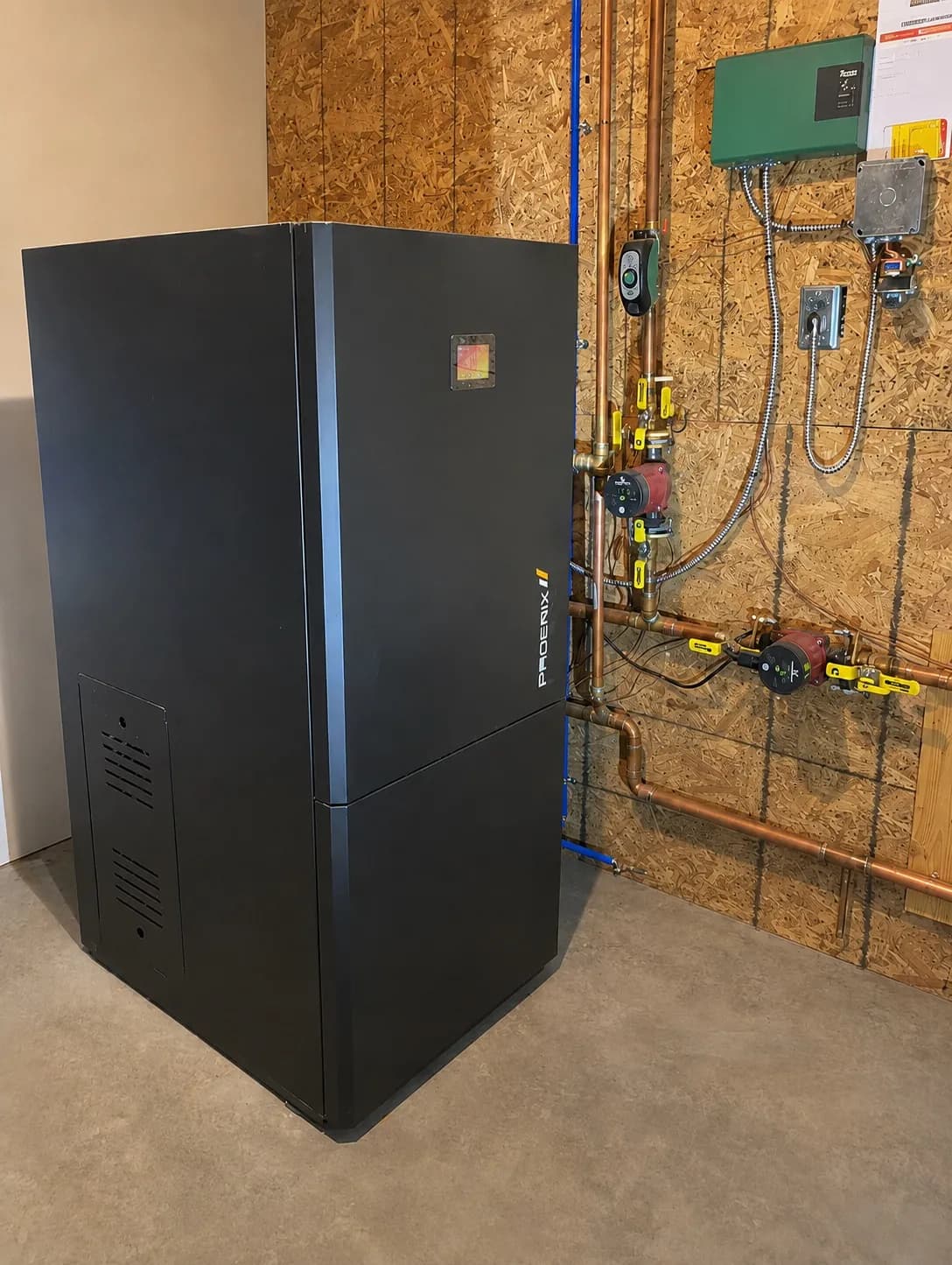

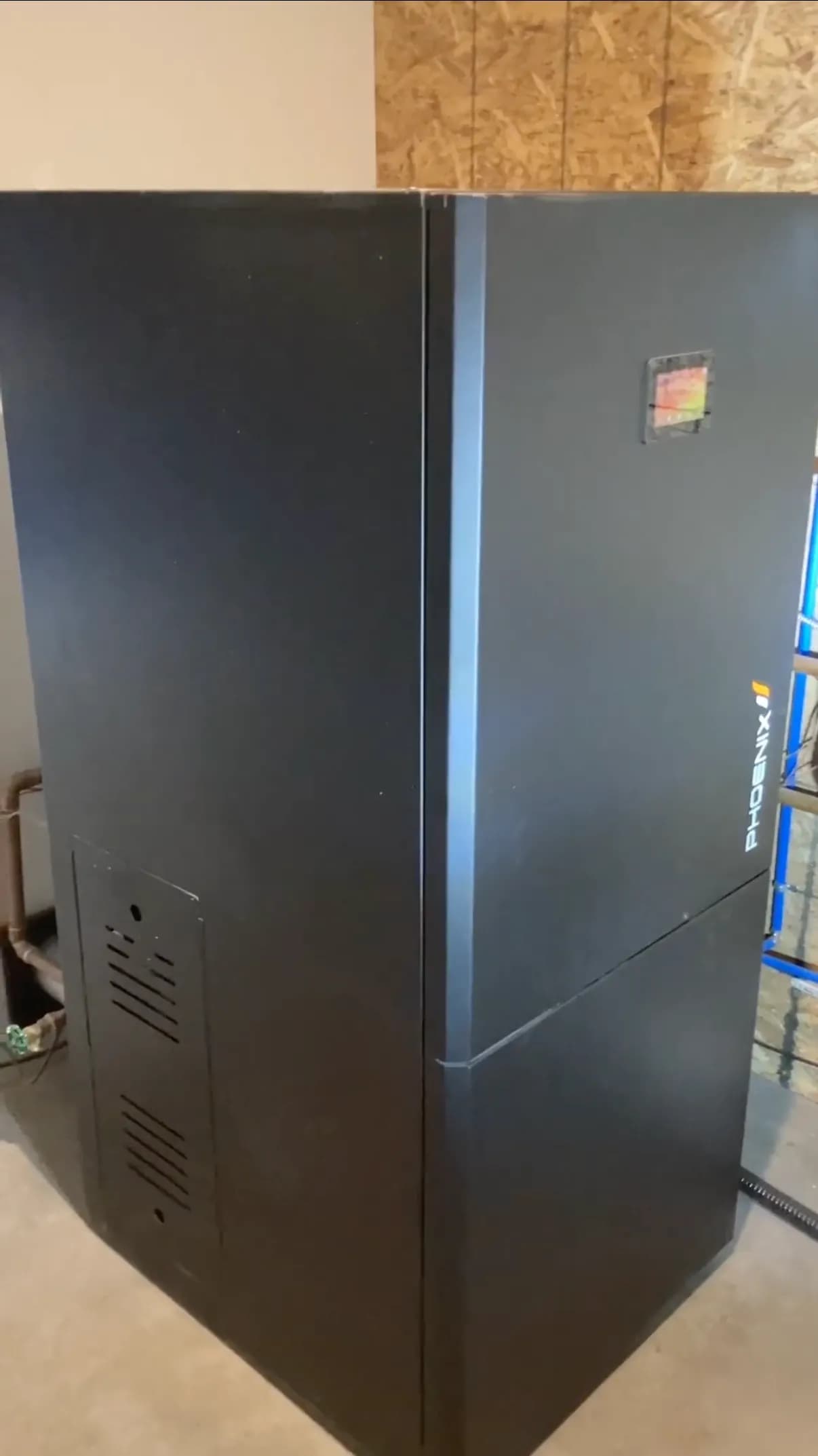

  • Phoenix boiler installed in a mechanical room with copper hydronic piping, pumps, and controls.

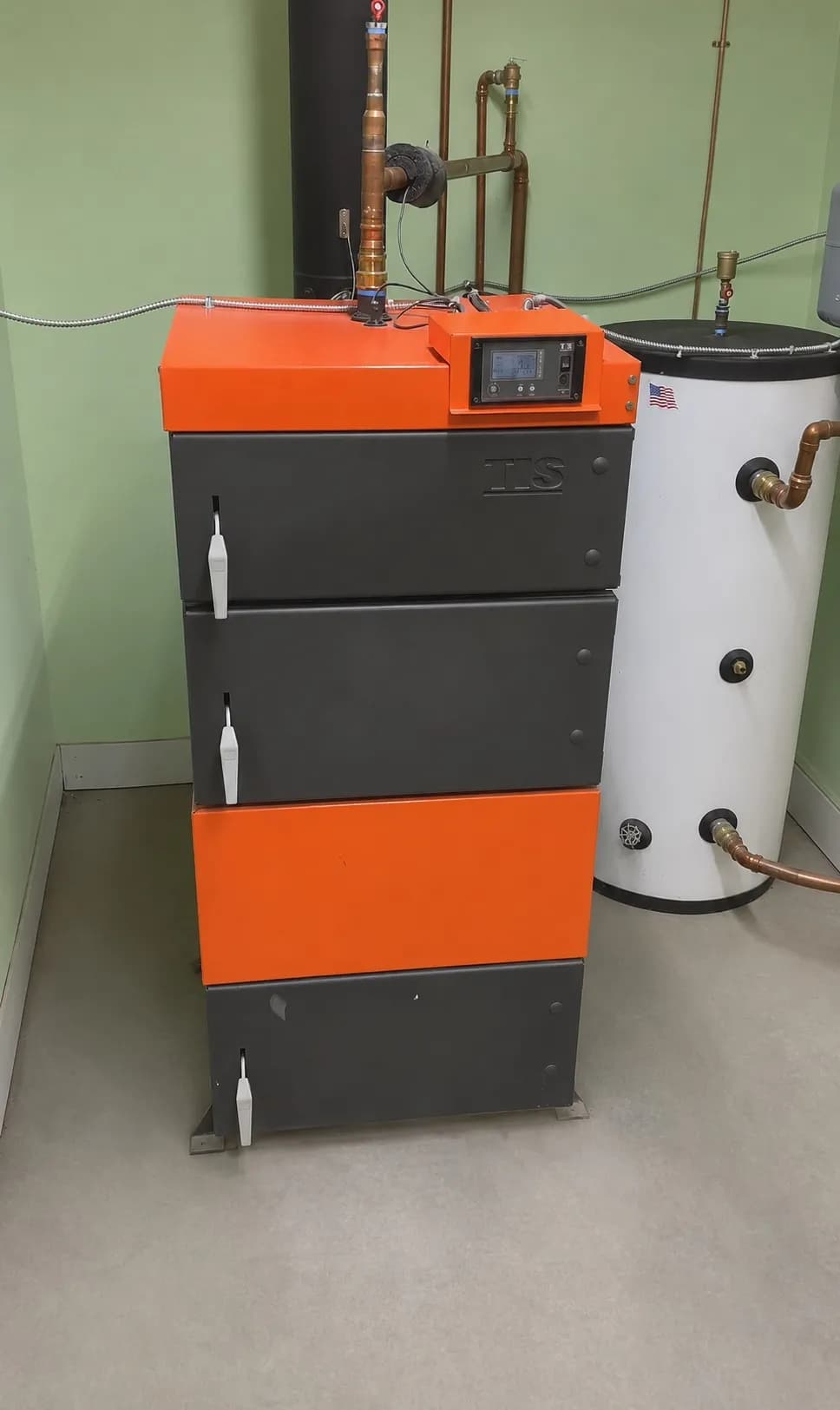

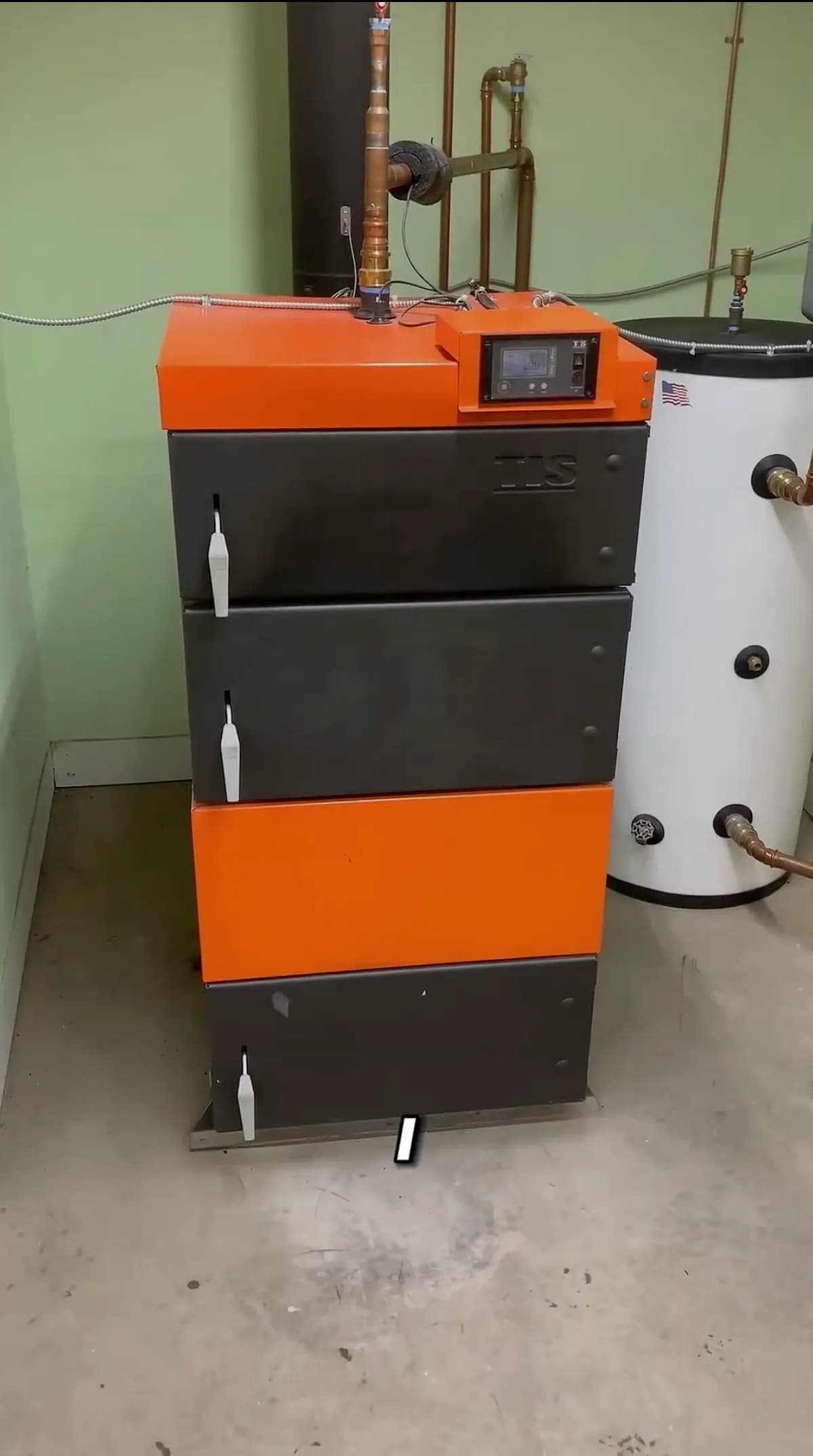

  • UNI wood boiler installed in a green mechanical room beside a vertical water storage tank.

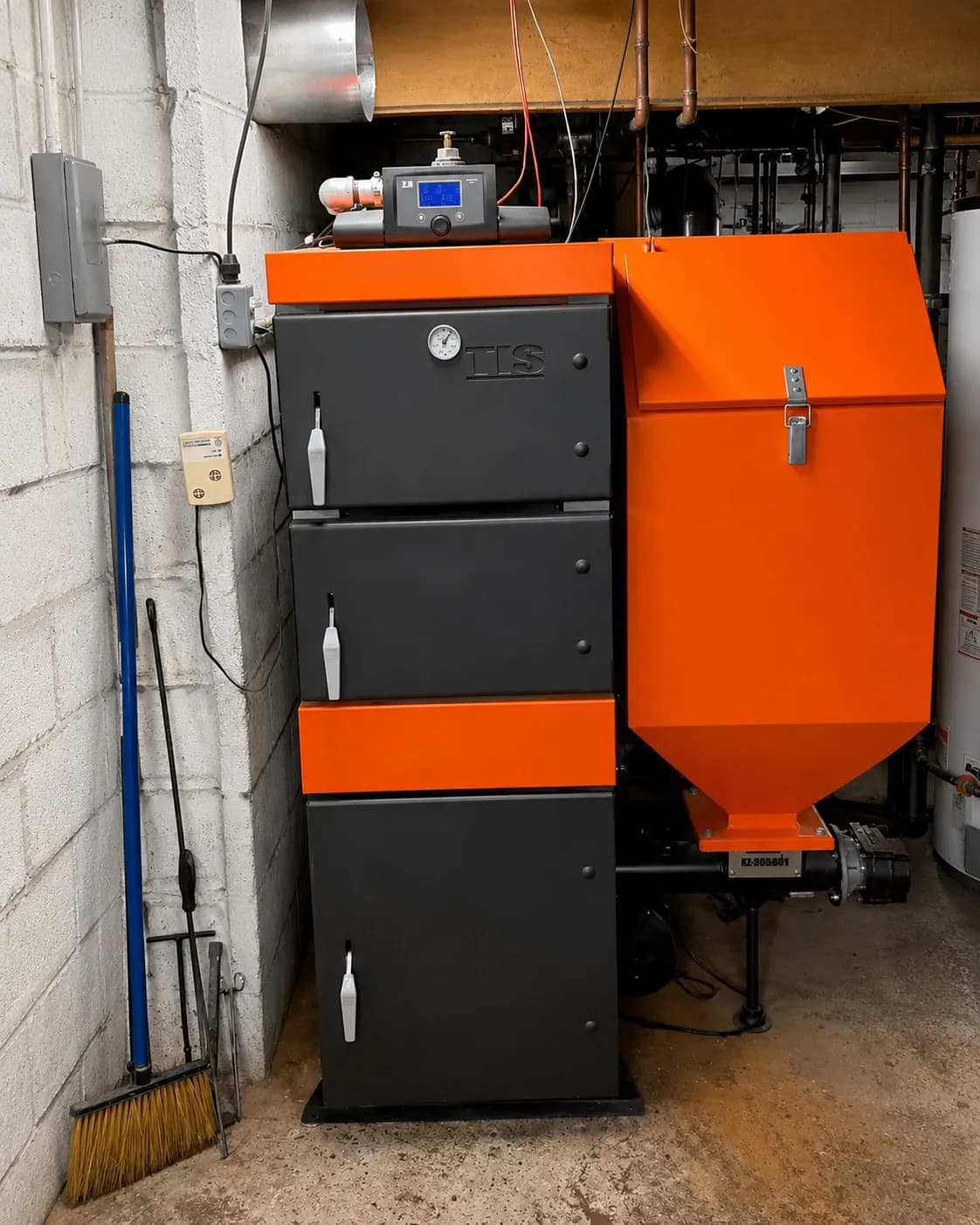

  • MBTEK boiler system with a black and orange cabinet unit and orange hopper in a utility basement.

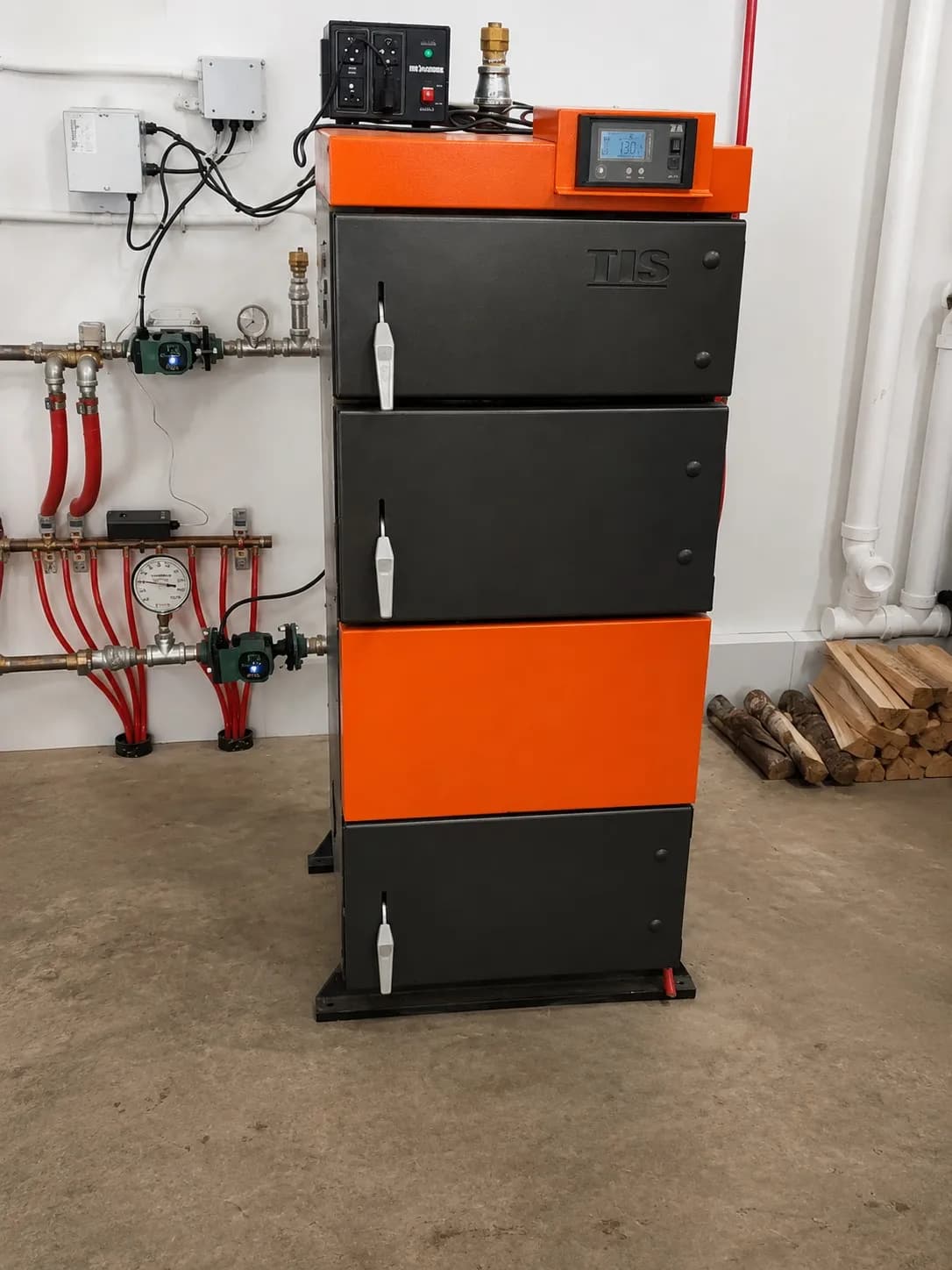

  • Black and orange boiler installed in a mechanical room with wall-mounted hydronic manifold, pumps, and control panel.

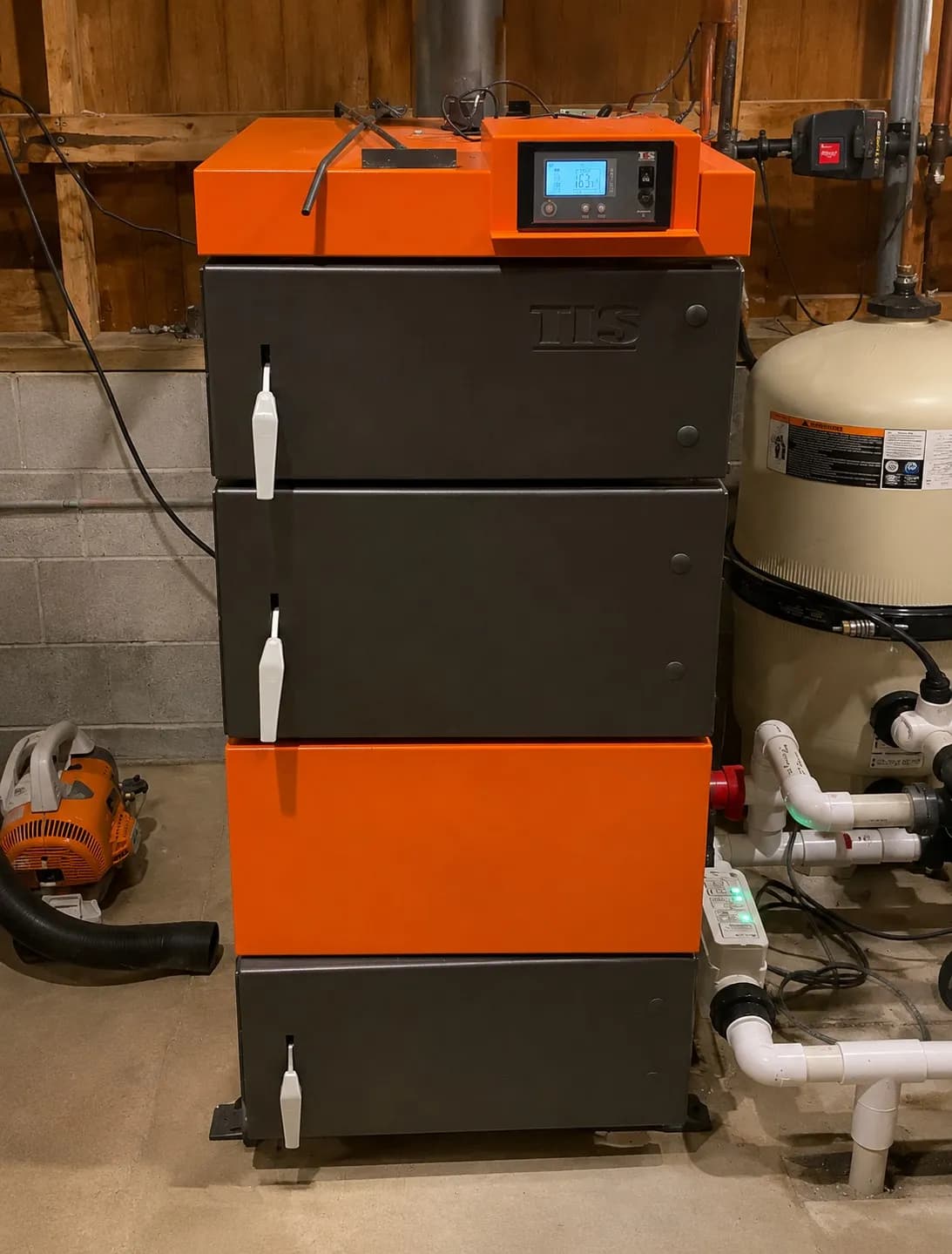

  • Black and orange boiler installed beside a water tank and hydronic piping in a basement mechanical room.

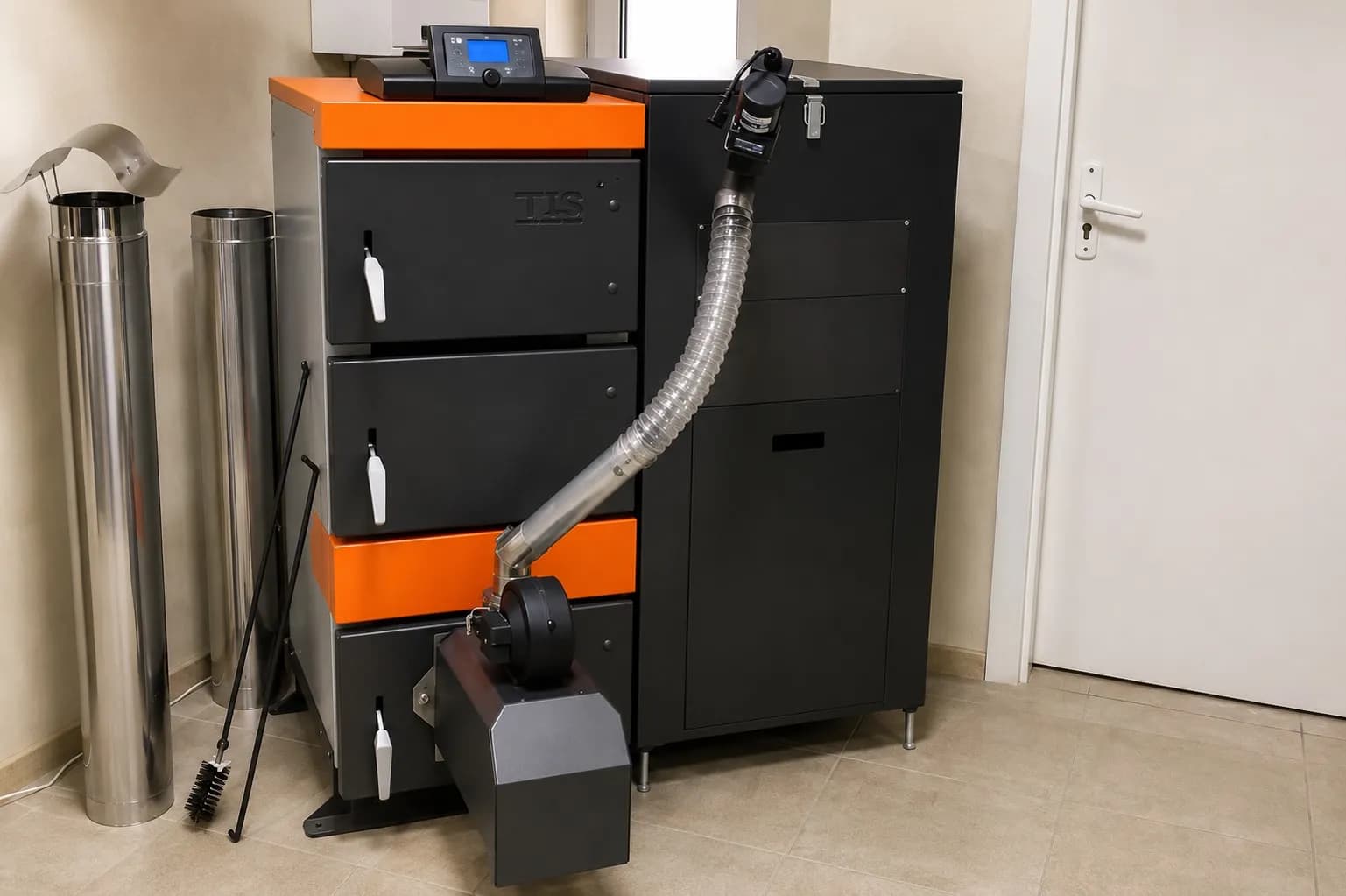

  • Black and orange pellet boiler connected to a black fuel hopper and auger in a finished mechanical room.

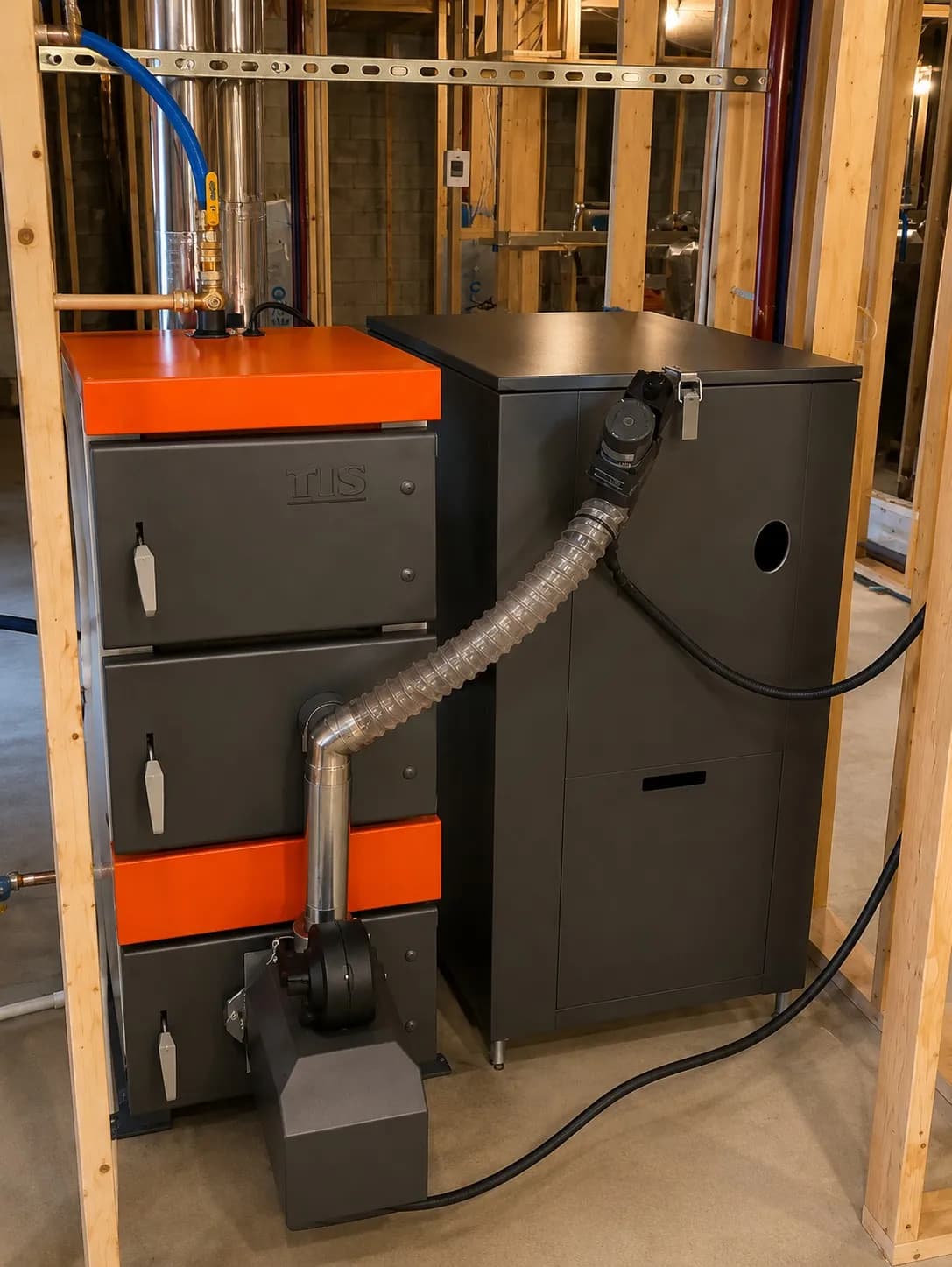

  • Black and orange pellet boiler connected to a black hopper and auger in an unfinished framed mechanical room.

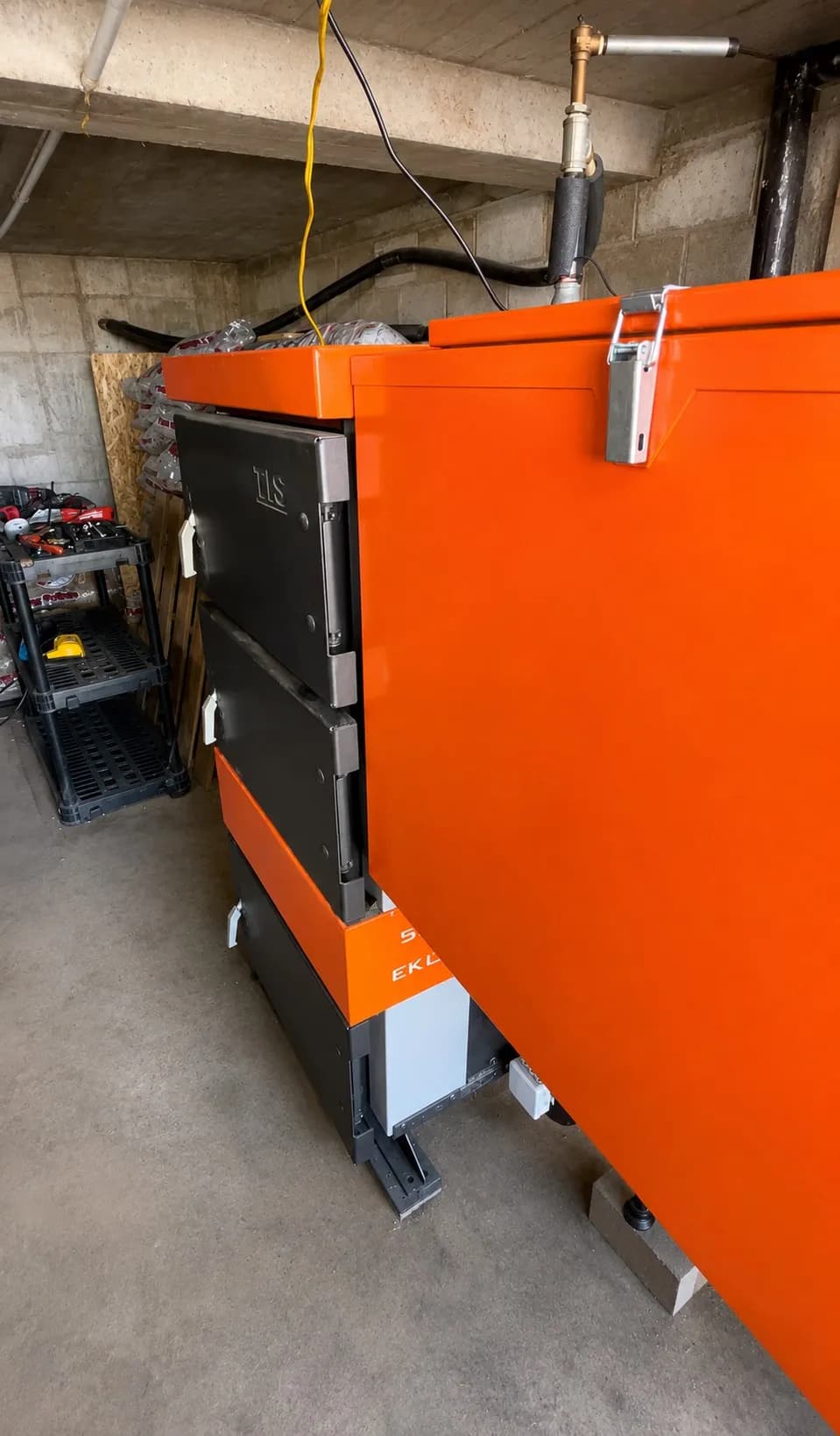

  • Side view of an orange EKO Duo hybrid coal boiler and integrated fuel hopper in a concrete mechanical room.

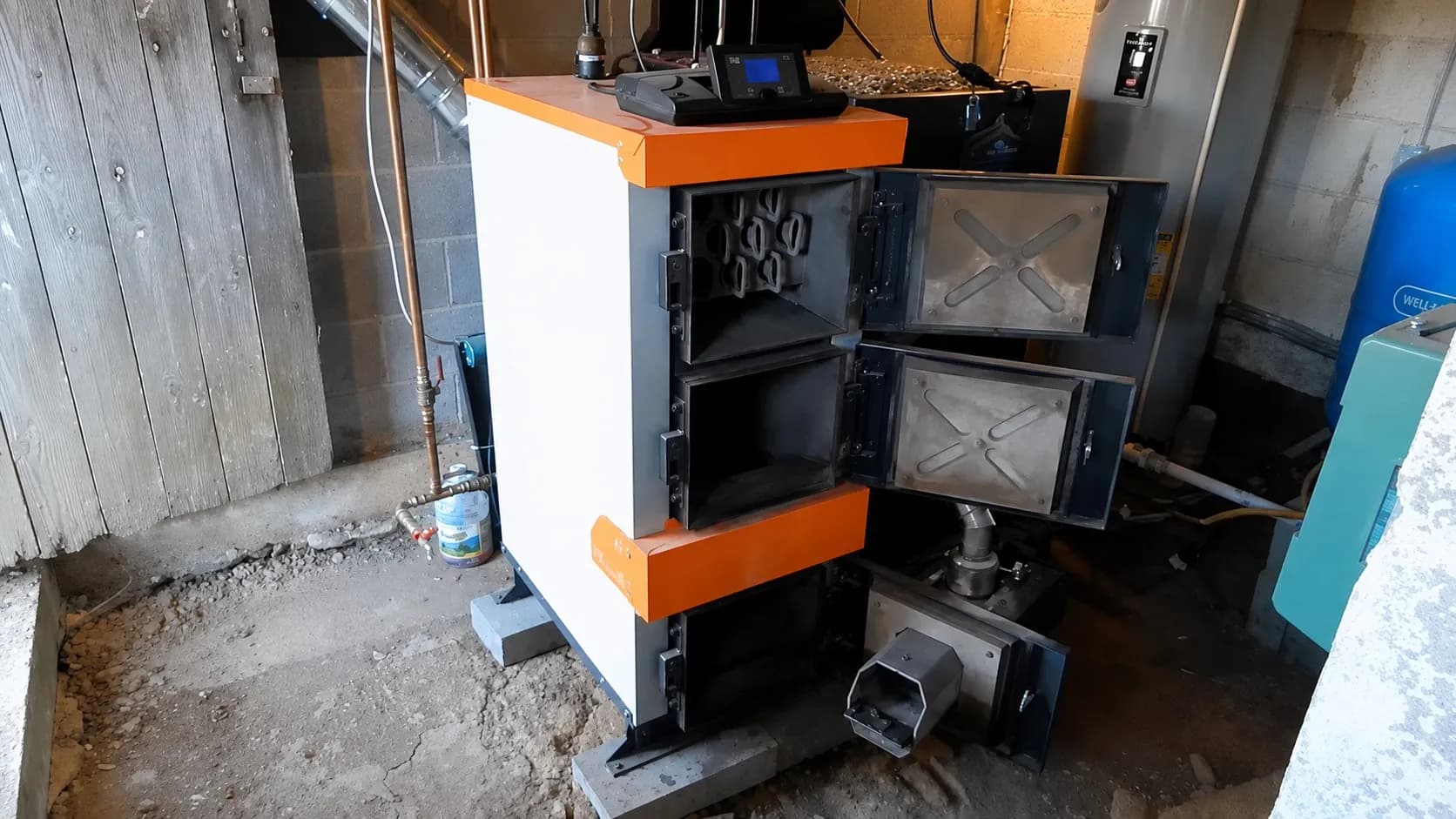

  • Pellet Duo boiler with its combustion chamber and heat exchanger access doors open.

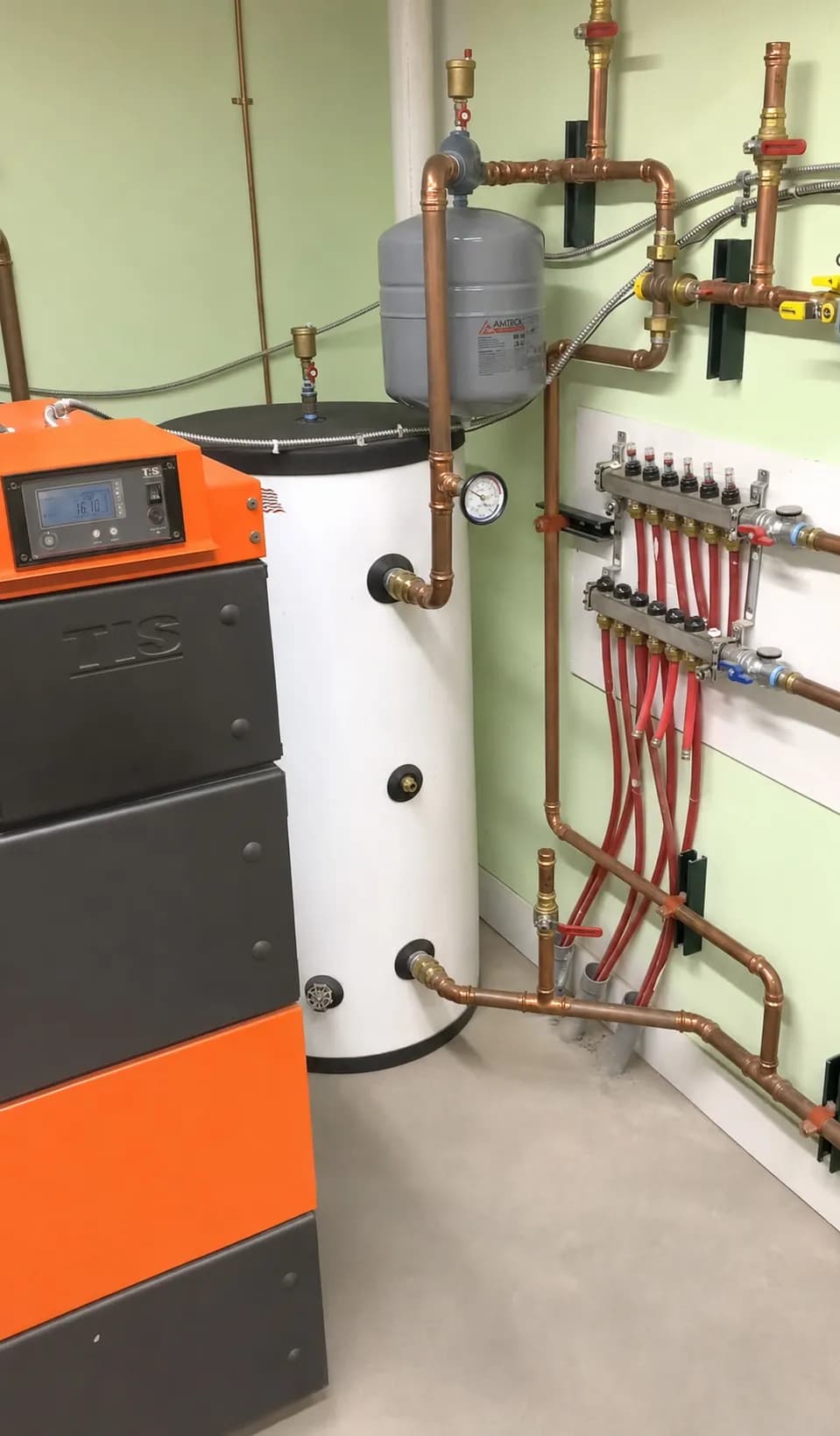

  • UNI wood boiler installation with water tank, copper piping, expansion tank, and manifold.

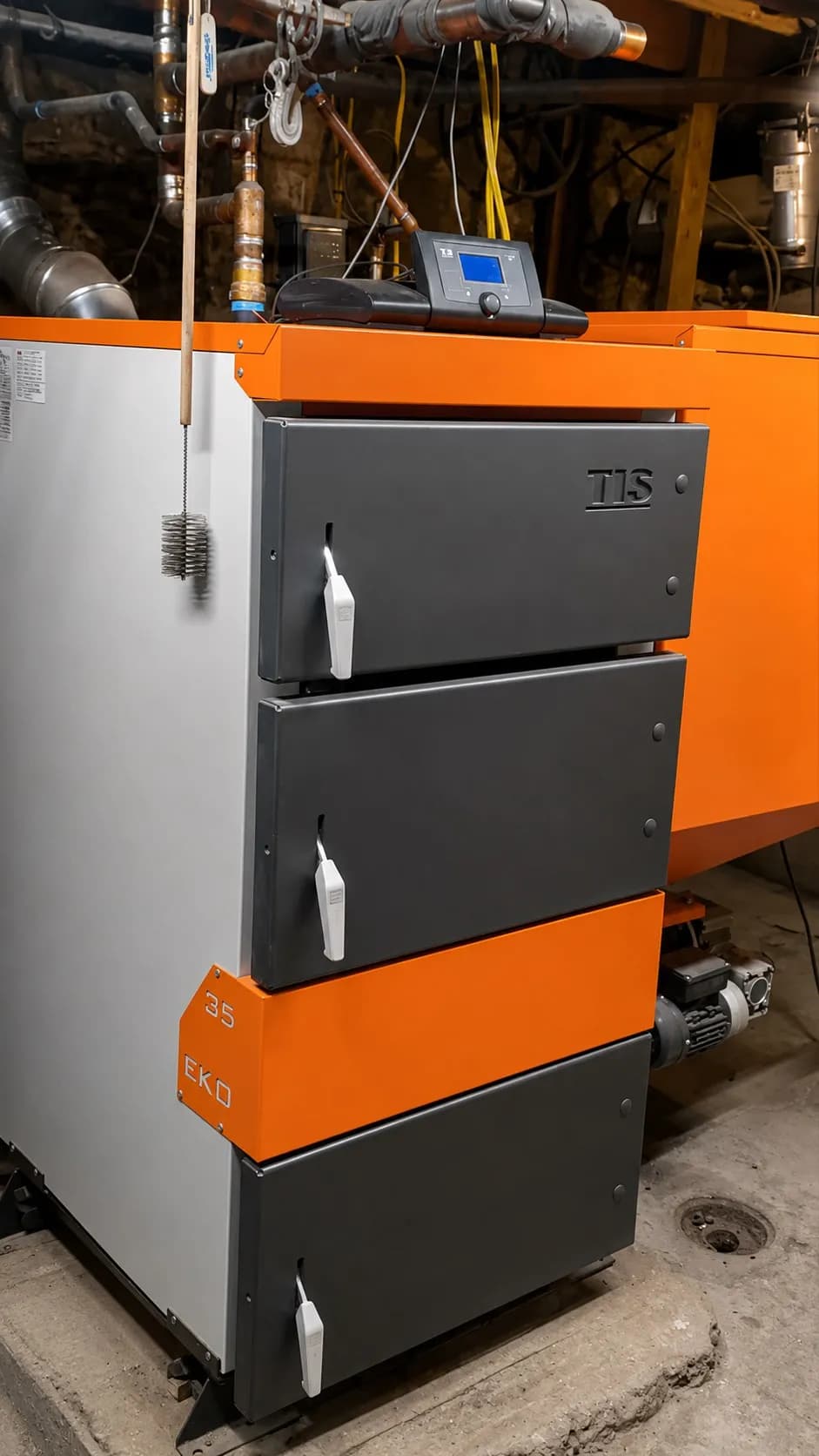

  • Side view of an EKO Duo boiler with closed access doors and digital controller in a mechanical room.

Installed in real homes and workshops

Customer Success Stories

The Titan Lambda gives us powerful, consistent heat with the efficiency and control we were looking for.

Titan Lambda — Advanced Wood Heating, Built for Performance

See the Titan Lambda Wood Gasification Boiler in a real-world. Engineered for efficient wood combustion, precise Lambda control, and dependable hydronic heating performance.

Product details

  • Up to 95% efficiency
  • Automatic lambda control
  • Automatic ignition
  • Large loading chamber

TITAN Lambda – High-Efficiency Wood Gasification Boiler

The TITAN Lambda Wood Gasification Boiler is a powerful solid fuel boiler designed for high-performance hydronic heating in residential and light commercial applications. With advanced lambda sensor control, wood gasification combustion, automatic ignition technology, and up to 95% efficiency, the TITAN Lambda delivers strong heating performance while helping reduce wood consumption and emissions.

Key Benefits

  • Operates at up to 95% efficiency for optimized wood fuel usage.
  • Available in sizes 110K BTU and 175K BTU.
  • Lambda sensor monitors exhaust oxygen levels to regulate combustion air automatically.

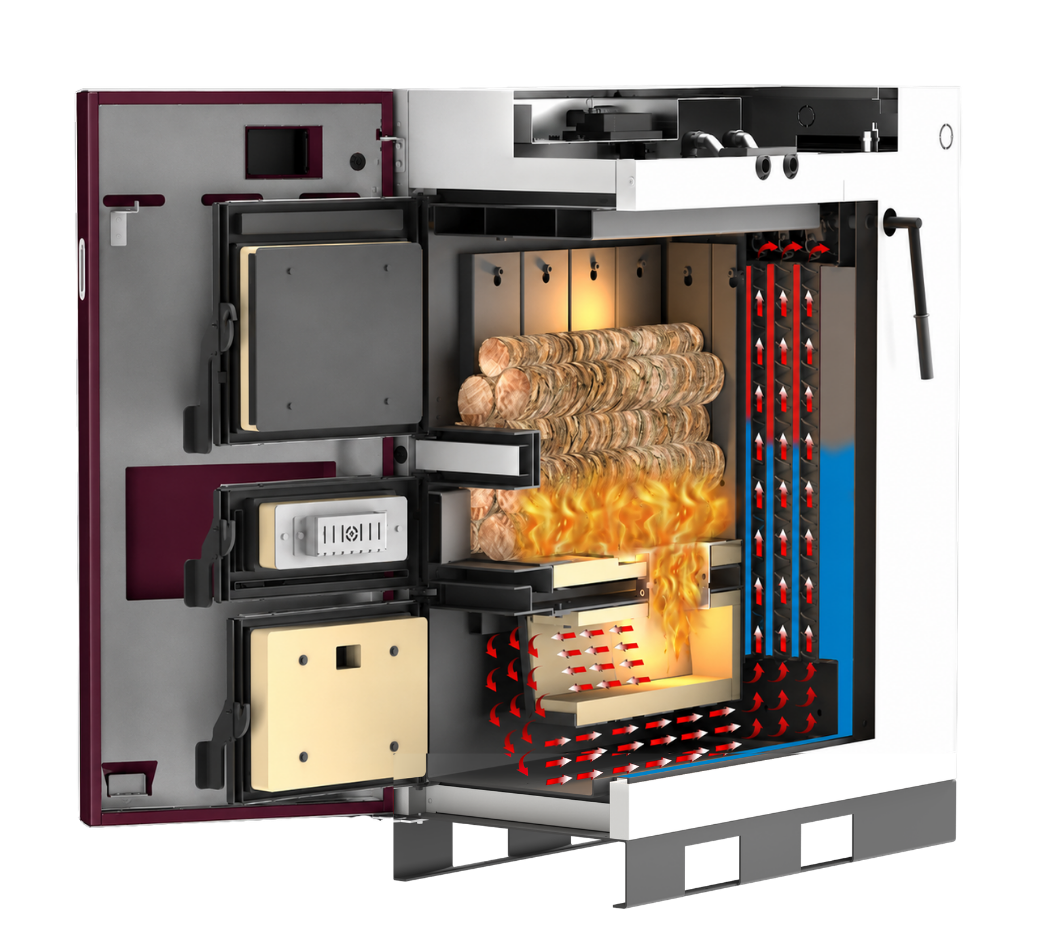

  • Wood gasification process supports cleaner, more efficient combustion.
  • Automatic ignition system uses a ceramic heater and a small amount of pellets for easier starts.
  • Large fuel loading chamber accepts firewood up to 23 5/8 in length.
  • Integrated controller supports pump, valve and temperature sensor management.
  • Designed with turbulator cleaning, easy ash removal and a modern touch screen display.

Specifications

  • Heating Capacity: 110K BTU (16–32 kW) / 175K BTU (25–50 kW)
  • Efficiency Rating: Up to 95%
  • Energy Efficiency Class: A+
  • Maximum Water Temperature: 194°F
  • Maximum Operating Pressure: 43.5 PSI
  • Flue Gas Tube External Diameter: 5.9 in
  • Fuel type: Hardwood with less than 20% moisture
  • Electrical supply: 230 V, 50 Hz
  • Warranty: 5 years on the boiler; 1 year on components and parts

110K BTU

Output
16–32 kW (55–109 KBTU)
Water volume
37 gal (140 L)
Loading chamber
32 gal (120 L)
Flue gas, maximum output
320 °F (160 °C)
Flue gas, minimum output
212 °F (100 °C)
Weight
1,188 lb (539 kg)
Depth
52.5 in
Height
54.3 in
Heating area
Up to 4,000 ft²

175K BTU

Output
25–50 kW (85–171 KBTU)
Water volume
43 gal (163 L)
Loading chamber
40 gal (150 L)
Flue gas, maximum output
302 °F (150 °C)
Flue gas, minimum output
203 °F (95 °C)
Weight
1,367 lb (620 kg)
Depth
55.3 in
Height
60.2 in
Heating area
Up to 6,300 ft²

Applies to all models

Efficiency rating
Up to 95%
Boiler class
5 (EN 303-5:2021)
Energy efficiency class
A+
Chimney draft
10–12 Pa
Minimum run at rated power
3 hours
Minimum inlet water temperature
140 °F (60 °C)
Maximum water temperature
194°F
Maximum operating pressure
43.5 PSI
Flue gas tube external diameter
5.9 in
Fuel
Hardwood, under 20% moisture
Fuel length
23 5/8 in (600 mm)
Combustion chamber
Operates under pressure
Buffer
Required, sized by EN 303-5:2021
Electrical supply
120 V, 60 Hz
Connections
G 1 1/2 in supply and return, G 3/4 in drain
Width
26.1 in
Warranty
5 years on the boiler; 1 year on components and parts

Complete the system

What Our TITAN Lambda Wood Gasification Boiler, 110K-175K BTU Works With

Apollo DHW80 stainless water heater tank shown from the front

Water heater tank

Store heat and make hot water

The combined buffer and indirect tank stores boiler heat and supplies household hot water — no separate water heater needed.

View details
Model
DHW80 · 80 gal
$3,058
$2,44620% off

Product added to cart.

View cart

Complete your system

Answers

Frequently asked questions

What is TITAN Lambda and how does lambda combustion control work?

TITAN Lambda is MBTEK's most advanced wood gasification boiler. An oxygen sensor continuously reads combustion conditions and a servo motor automatically adjusts combustion air in response, keeping the burn efficient across the load range. On the 110K model, flue gas temperature is 100°C at minimum output and 160°C at maximum output. On the 175K model, it is 95°C at minimum output and 150°C at maximum output.

How efficient is TITAN Lambda?

Up to 95% — the highest efficiency figure in MBTEK's wood-boiler line, driven by automatic lambda-sensor combustion control rather than a fixed fan setting.

What temperature does the secondary combustion chamber reach?

MBTEK's TITAN Lambda specifications document a lower combustion chamber temperature of 1,000–1,200°C. This figure comes from MBTEK's product specifications, not the user manual, which doesn't separately publish a secondary-chamber temperature.

How does TITAN Lambda compare to UNI?

Both are wood gasification boilers, but TITAN Lambda adds automatic ignition and lambda-sensor combustion control for up to 95% efficiency, versus UNI's smart-controller-managed 82% minimum efficiency. UNI is sold across more size steps; TITAN Lambda is sold as a single product with 110,000 and 175,000 BTU variants.

Can TITAN Lambda provide domestic hot water?

Yes — TITAN Lambda's integrated hydronic controls can manage a domestic hot water tank alongside space heating.
