Radiant-Floor Distribution
APOLLO Manifold Station
Preassembled stainless radiant distribution in Mini, Station, and MAX configurations.
Manifold Configuration
Manifold Station MAX 12 Loop
$1,768
$1,41420% OFF
Shipping$248Free
- Free shipping
- Secure checkout
Need help choosing?
Installed in real homes and workshops
Customer Success Stories
The Apollo heat pump system is very efficient, quiet, and easy to install. It stands out for its clear design, well-organized components, and advanced features like a touchscreen and remote monitoring through an app. It also allows precise temperature control and includes an electric backup for very cold conditions. Overall, it's a reliable and practical system.
Maximizing Efficiency with Apollo Heat Pump
Economical performance that isn't affected by low temperatures.
Product details
- 6 or 12 radiant loops
- 316 stainless steel
- Balanced by loop
- Controls included
The APOLLO Manifold Station
Instead of building the manifold assembly piece by piece on site, the APOLLO Manifold Station provides a clean, pre-assembled solution that saves time, improves consistency, and gives the installation a professional finish.
It combines manifold distribution, zoning hardware, insulation, and service components into one compact radiant heating and cooling assembly.
The APOLLO Manifold Station is available in three configurations: the standard Manifold Station with 12 loops, the Manifold Station MAX with 12 loops and integrated pump, and the compact Manifold Station Mini with 6 loops.
Key Benefits
- All-in-one manifold package with actuators, zone control, and PEX adapters included
- Clear configuration options with 12-loop standard and MAX models, plus a compact 6-loop Mini version
- 316 stainless steel manifold body for corrosion-resistant performance
- Flow meters and balancing valves support accurate loop-by-loop adjustment
- Insulated assembly helps limit heat loss and condensation
- Isolation and service components simplify commissioning and maintenance
- MAX version adds a high-efficiency pump for expanded system capability

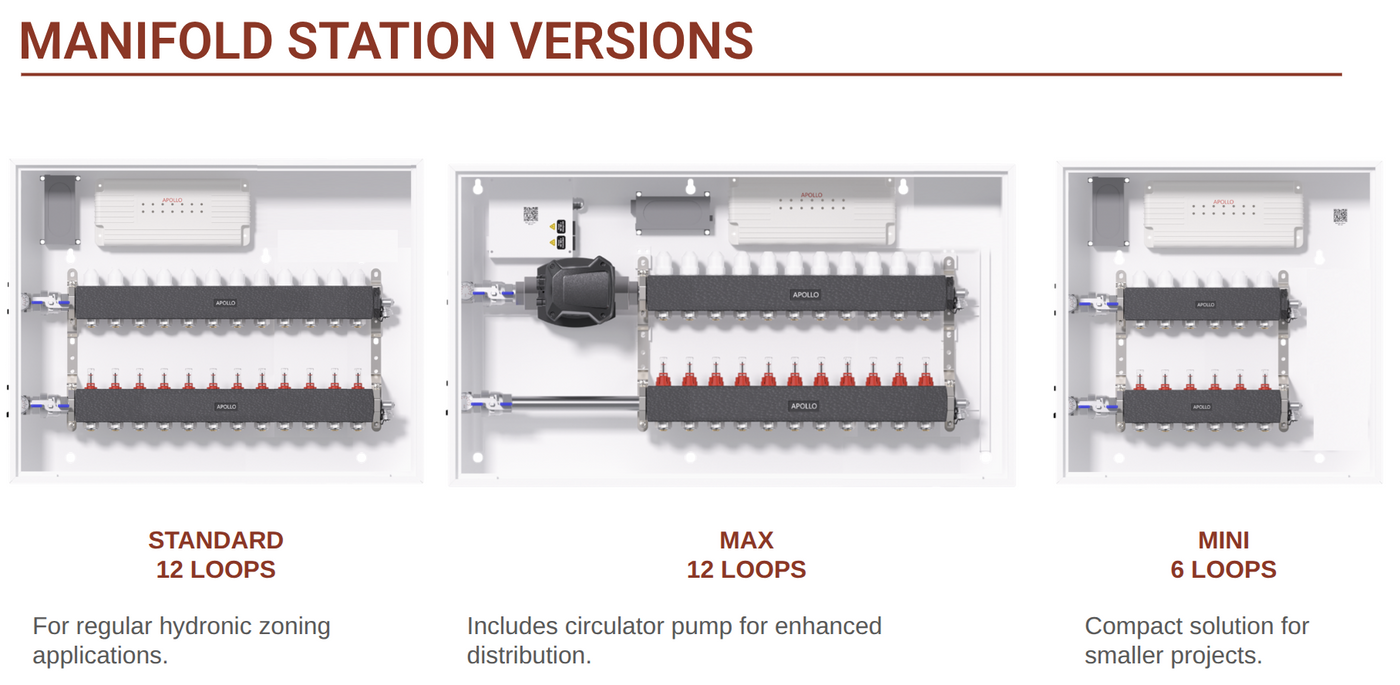

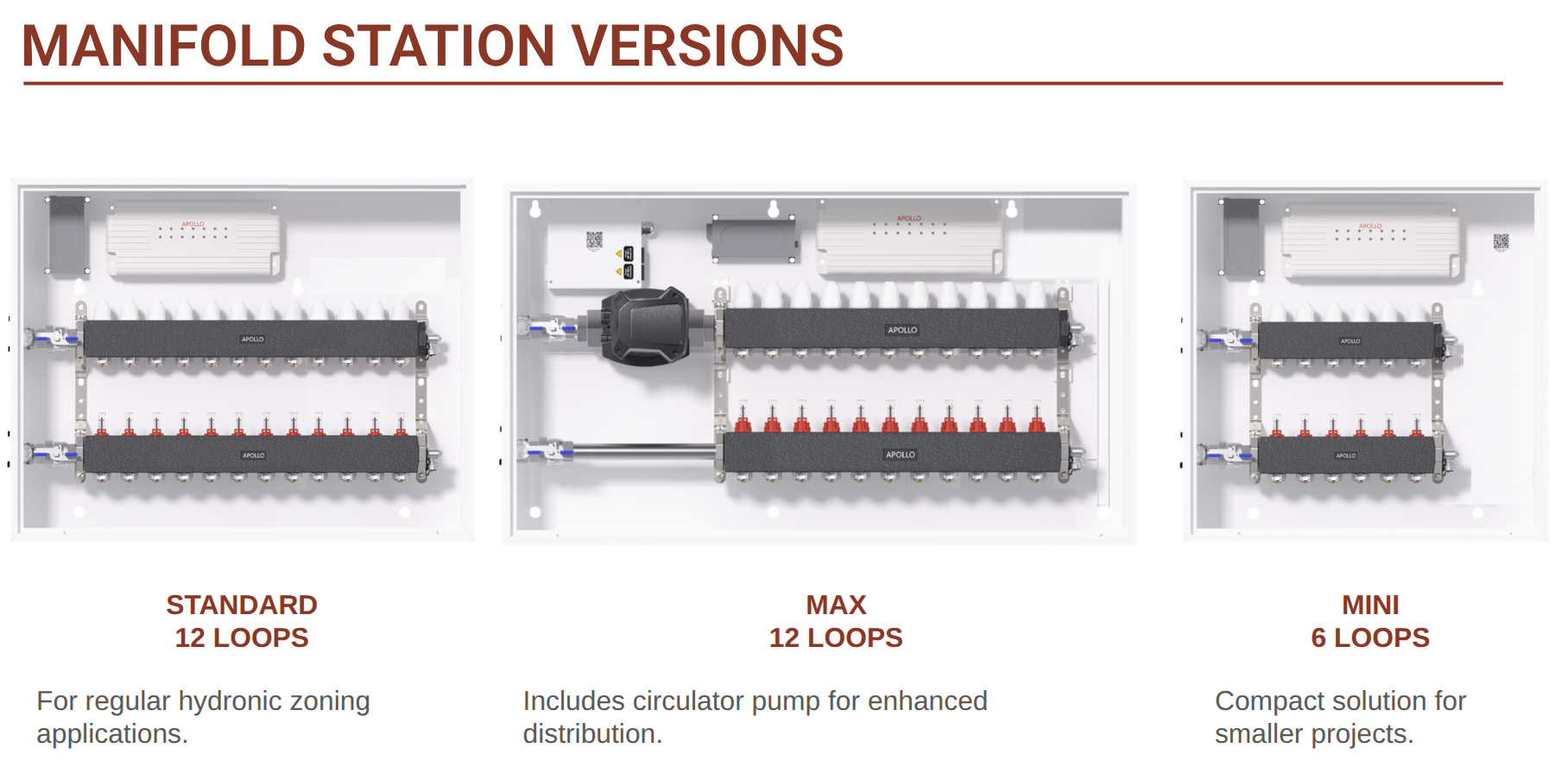

Available Configurations
- Manifold Station: 12-loop manifold station for larger radiant heating and cooling systems
- Manifold Station MAX: 12-loop manifold station with integrated high-efficiency pump
- Manifold Station Mini: 6-loop compact manifold station for smaller radiant zones or limited-space installations
Specifications
- Loop Capacity: 12 loops on Manifold Station and Manifold Station MAX; 6 loops on Manifold Station Mini
- Included Controls: APOLLO actuators and zone valve control included according to configuration
- Connections: Two 1" ball valves and two PEX adapters
- Material: Stainless steel 316
- Maximum Pressure: 150 PSI
- Insulation: Pre-insulated assembly for improved system efficiency
- Pump: Included on Manifold Station MAX only
| Specification | Manifold Station 12 Loop | Manifold Station MAX 12 Loop | Manifold Station Mini 6 Loop |
|---|---|---|---|
| Loops | 12 | 12 | 6 |
| Pump | Not included | Circulator pump | Not included |
| Electrical box | Not included | Terminal box | Not included |
Applies to all models
| Application | Radiant heating and cooling |
|---|---|
| Mounting | Wall-mounted back panel |
| Material | Stainless steel 316 |
| Controller | APOLLO 8-zone controller |
| Transformer | 24 V |
| Actuators | Electric actuators included |
| Flow management | Flow meter and balancing indicator on each loop |
| Service | Isolation valves, drain valves, and thermometers |
| Connections | 2 × 1 in ball valves and 2 PEX adapters |
| Insulation | Pre-insulated |
| Max pressure | 150 PSI |

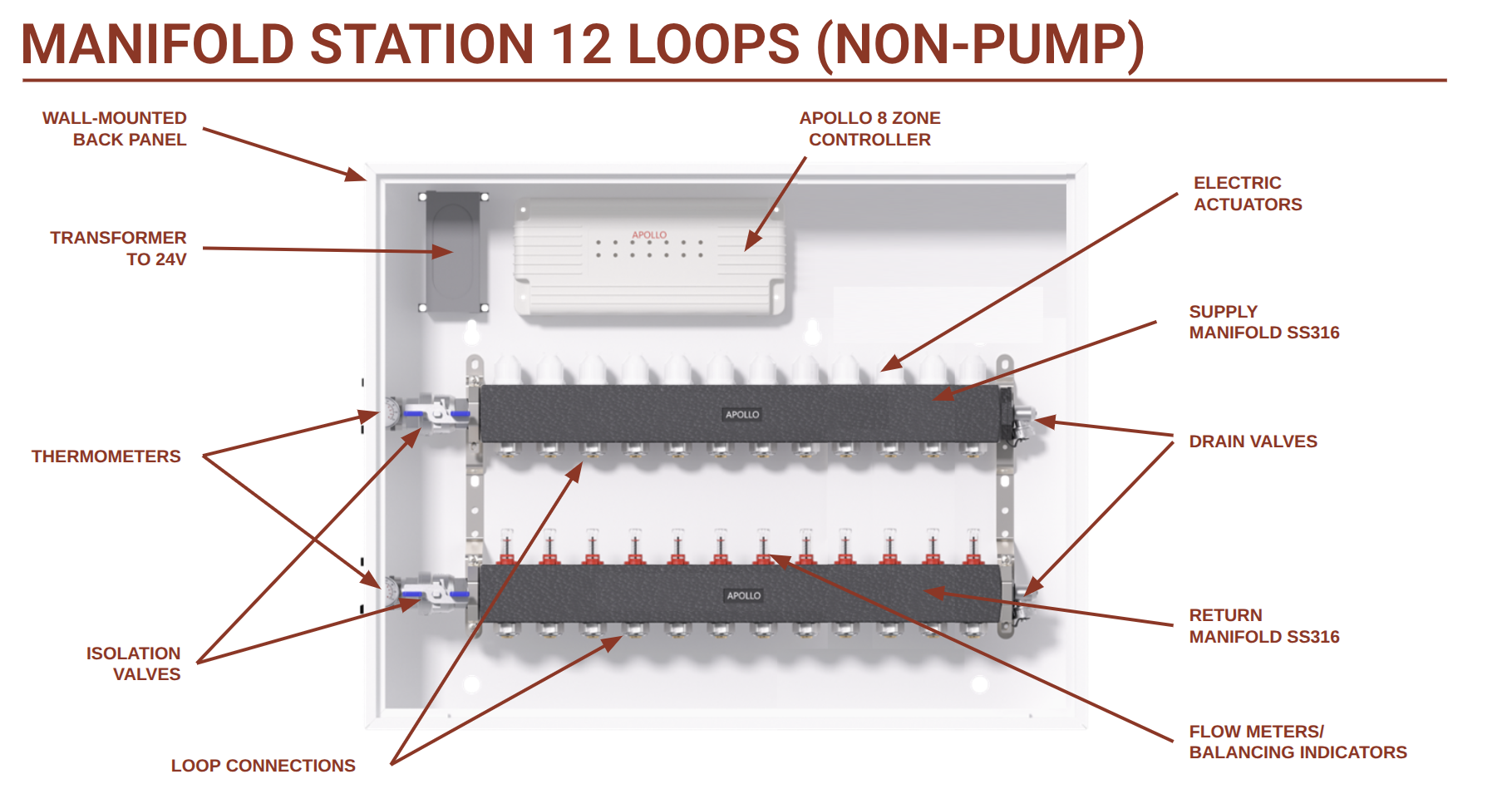

Manifold Station 12 Loop
- Loops
- 12
- Pump
- Not included
- Electrical box
- Not included

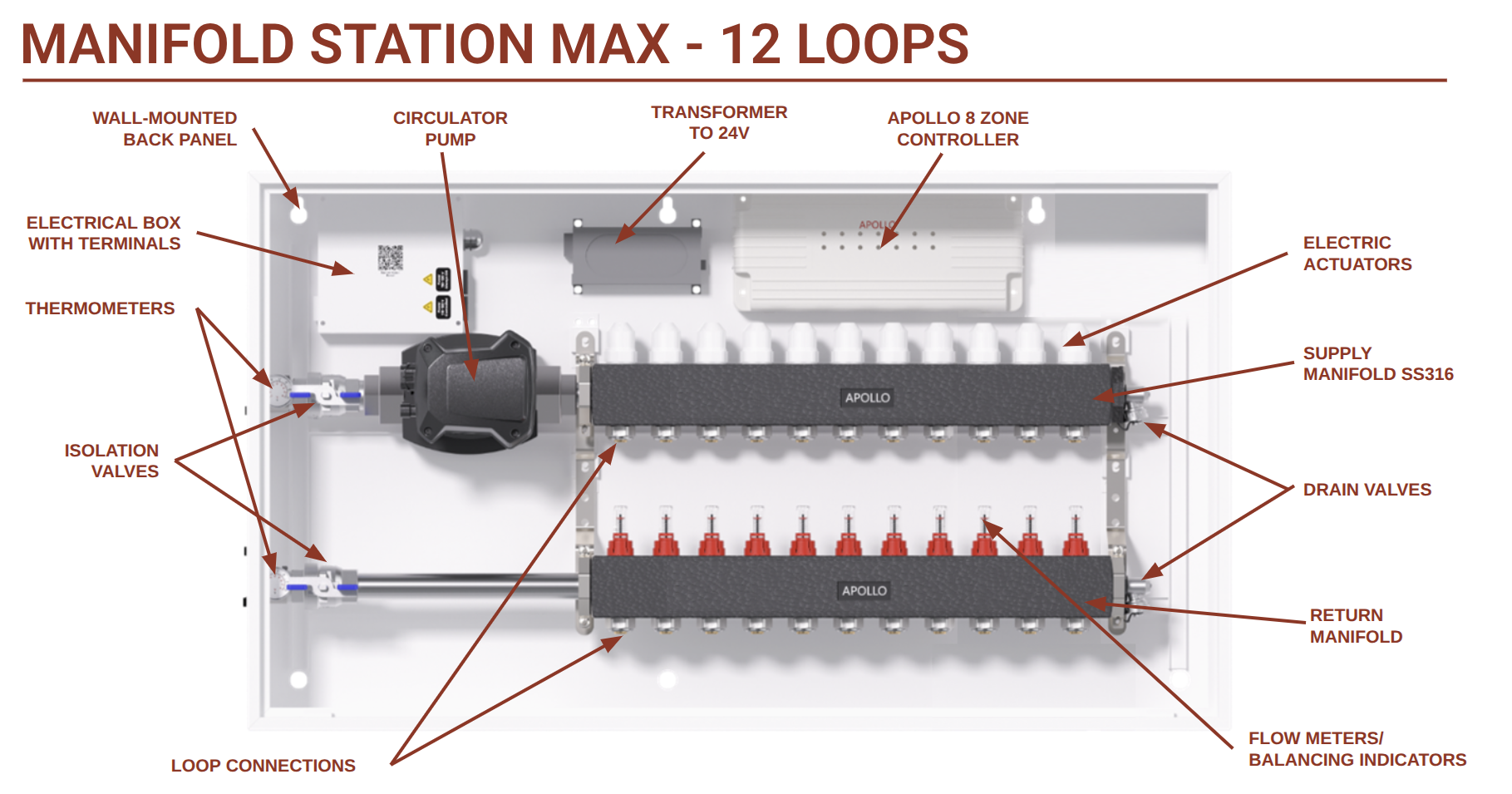

Manifold Station MAX 12 Loop
- Loops
- 12
- Pump
- Circulator pump
- Electrical box
- Terminal box

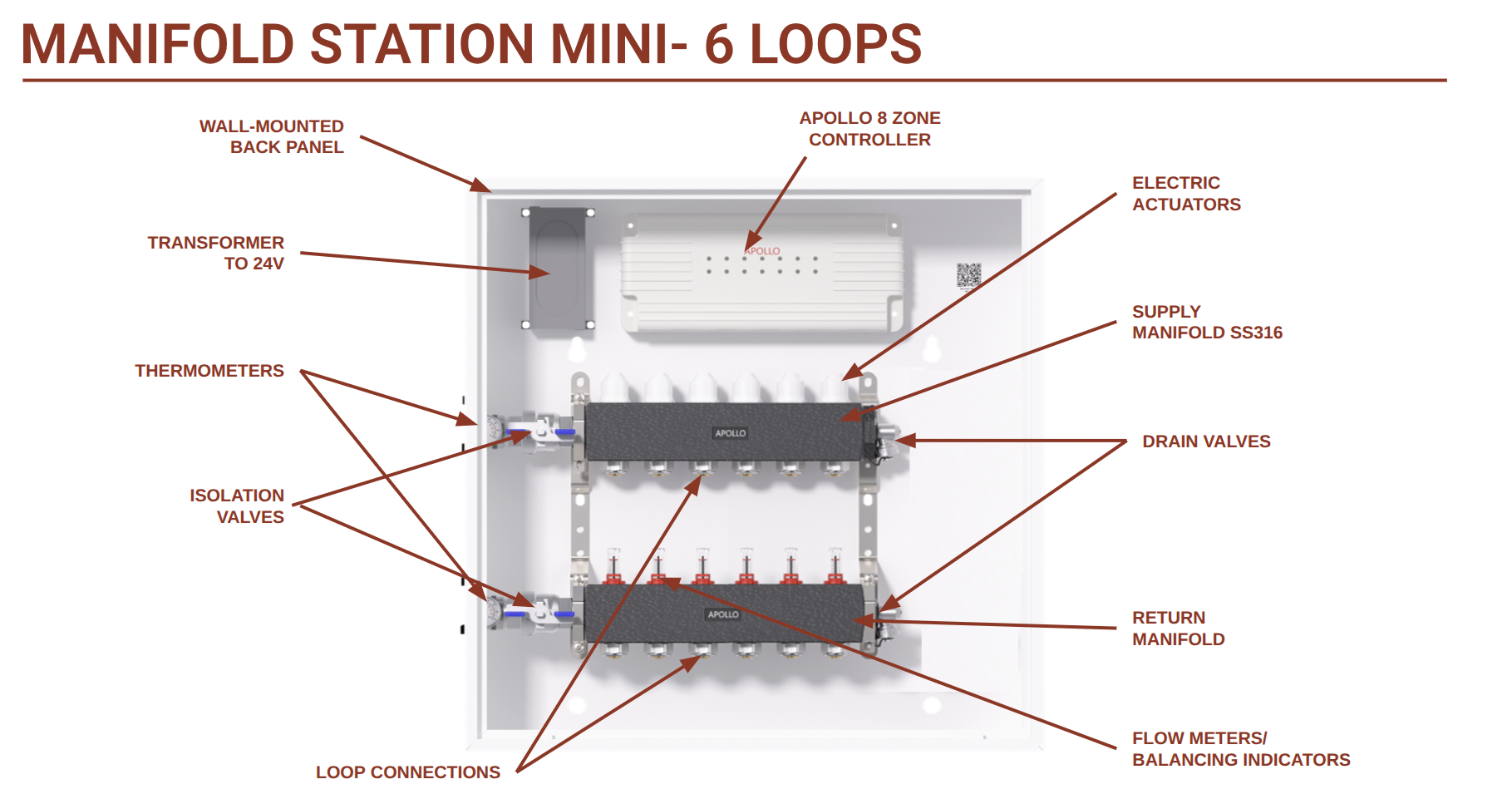

Manifold Station Mini 6 Loop
- Loops
- 6
- Pump
- Not included
- Electrical box
- Not included
Applies to all models
- Application
- Radiant heating and cooling
- Mounting
- Wall-mounted back panel
- Material
- Stainless steel 316
- Controller
- APOLLO 8-zone controller
- Transformer
- 24 V
- Actuators
- Electric actuators included
- Flow management
- Flow meter and balancing indicator on each loop
- Service
- Isolation valves, drain valves, and thermometers
- Connections
- 2 × 1 in ball valves and 2 PEX adapters
- Insulation
- Pre-insulated
- Max pressure
- 150 PSI
