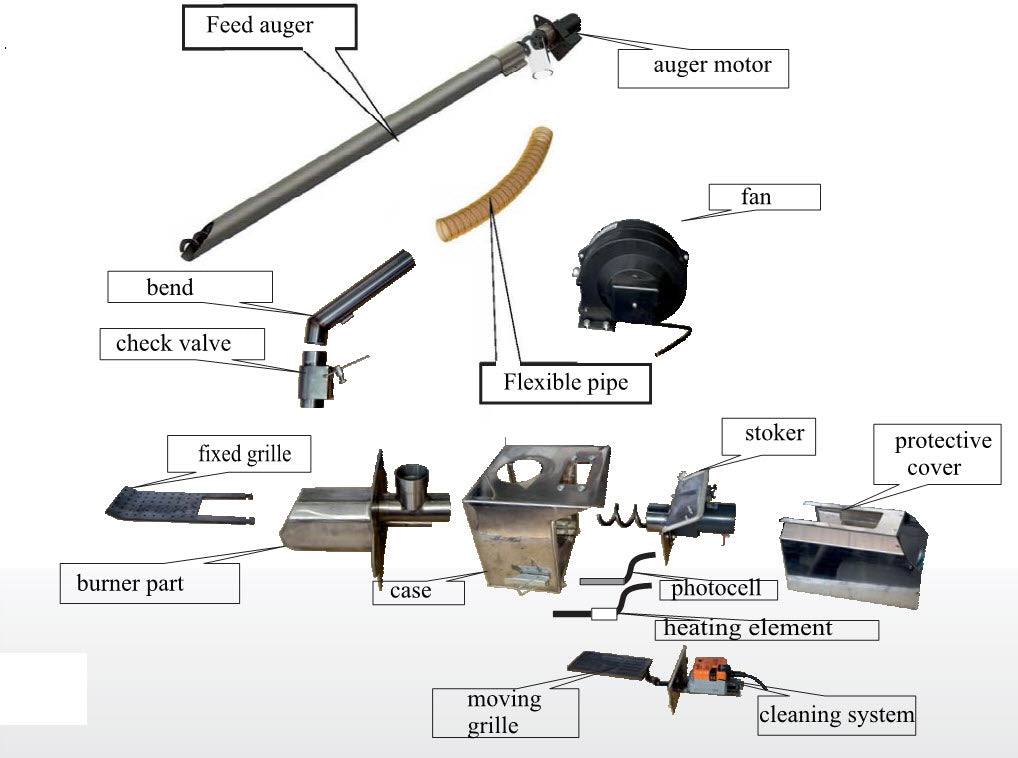

Parts PELLET DUO 20-40-50-60-95

FOR PELLET DUO 20-40-50-60-95, boiler replacement parts:

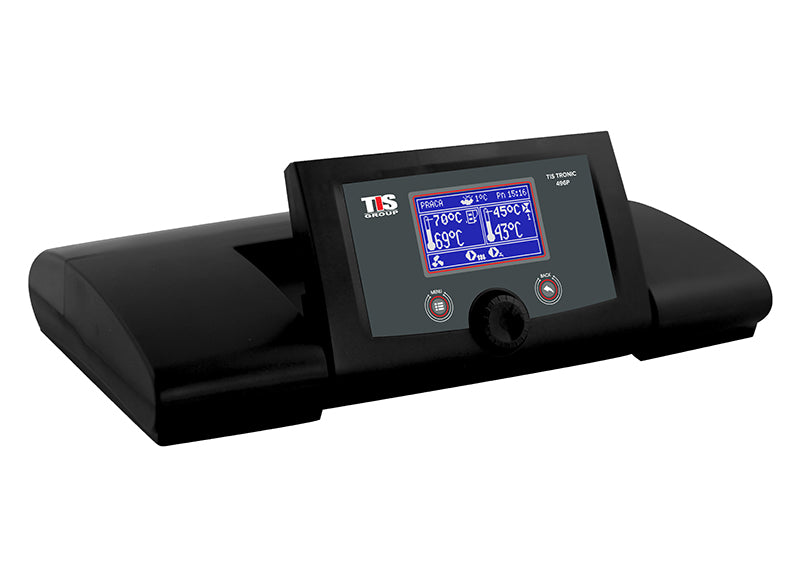

1 Controller Tronic 496P

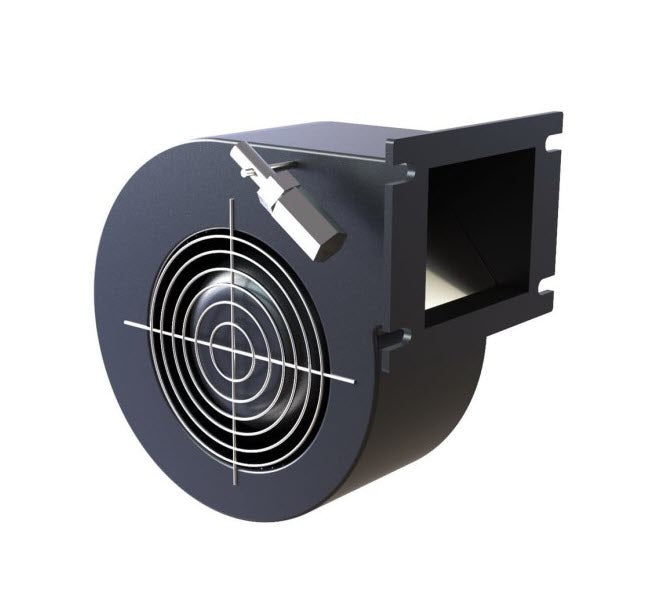

2.1 Fan Pellet 20-80: Part no. WPA 06
2.2 Fan Pellet Duo 95: part no. WPA 133

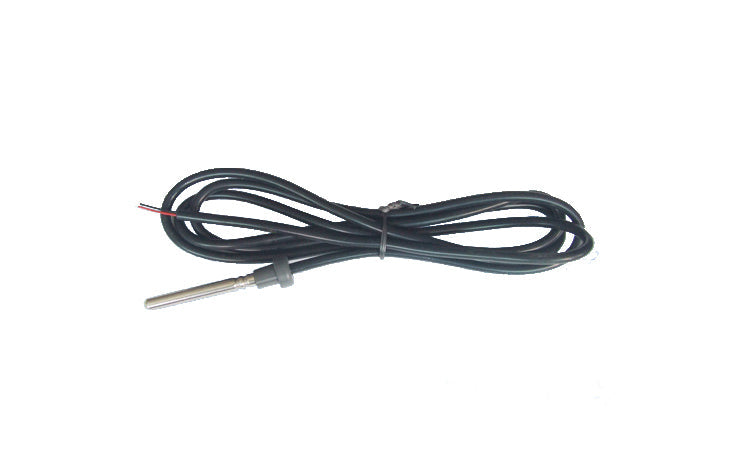

3 Sensor CT4 for boiler, water, tank, feeder, mixing, domestic hot water (Part no. KTY81-110)

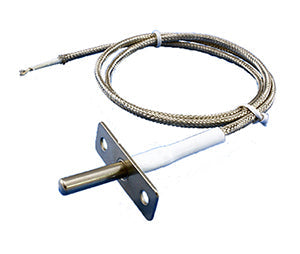

4 Sensor CT2 for exhaust and weather (Part no. PT-1000)
5 DZT-1 Thermal sensor, Open: 185°F/85°C, Close: 140°F/60°C
6 DZT-2 Thermal sensor, Open: 200°F/95°C, Close: 155°F/70°C
7 Flexible tube (1.5M Flexible hose D60)
8 Auger motor (hopper) (Pellet 20-3IK15GN-CPT Motor; 3GN 100K Gear, Pellet 50-3IK15GN-CPT Motor, 3GN 50K Gear; Pellet 95 - 200 4IK25GN-CPT Motor, 4GN 50K Gear)
9 Auger screw (without body)
10 Auger body (without screw)
11 Auger screw and body

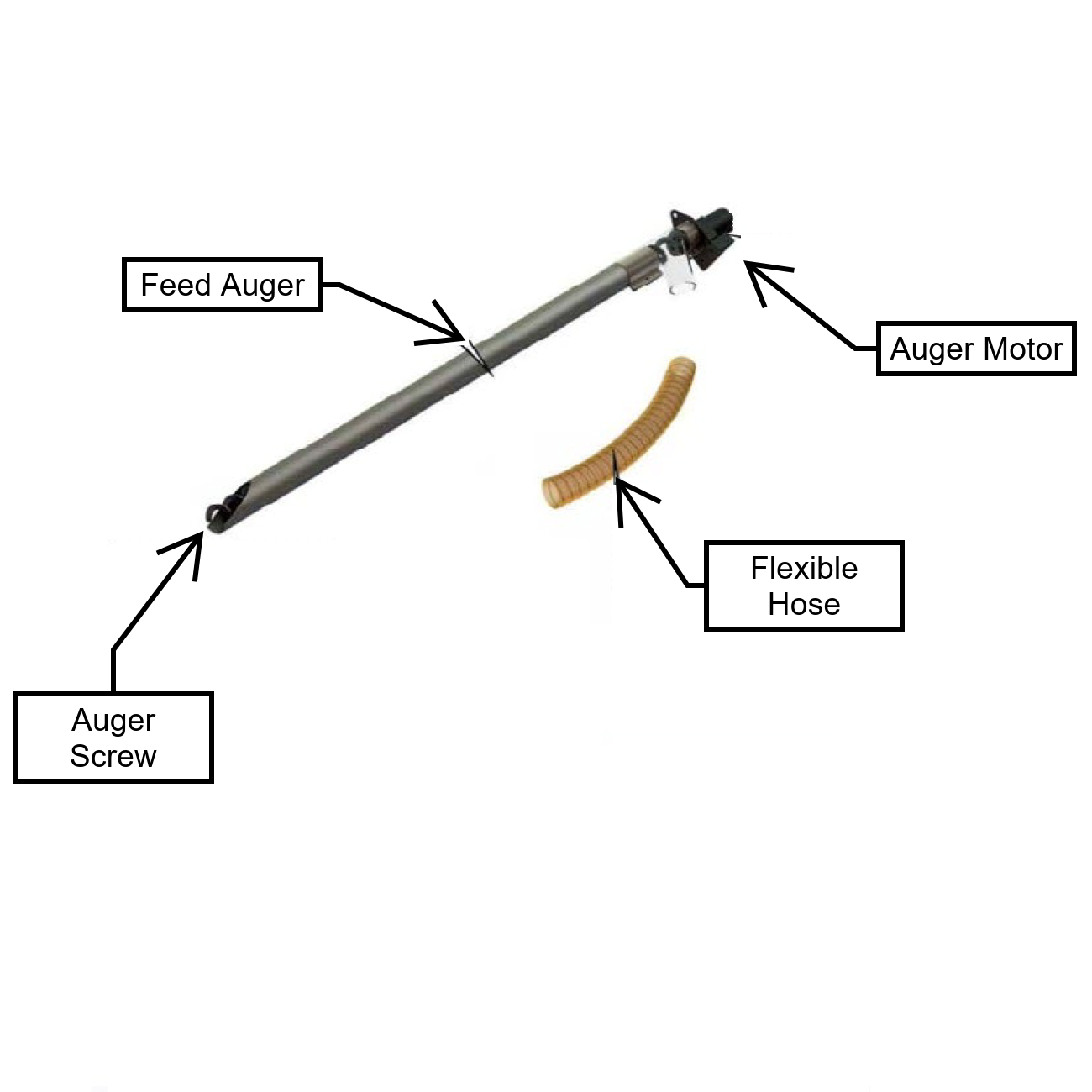

12 Auger assembly with motor, screw, body, and flexible tube
13 Feeder motor (Pellet 20-80: Part no. 2IK10GN-CP / 2GN100K, Pellet 95: Part no. 3IK15GN-CPT / 3GN50K)
14 Moving grate motor (belimo)
15 Igniter (heating element, Part no. PSX-2-240-B-PL, FKK 17K)

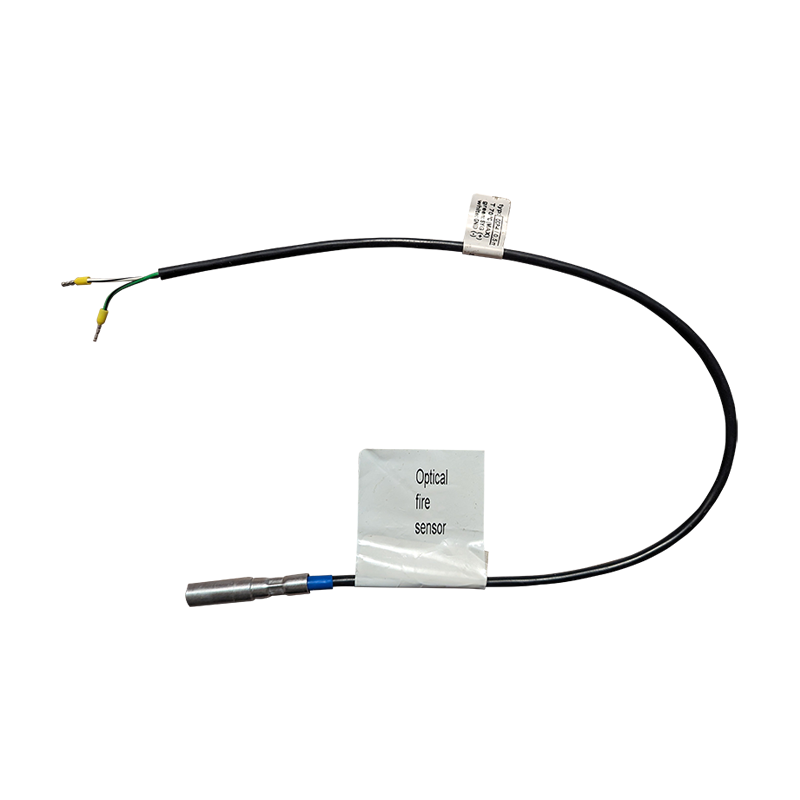

16 Photocell

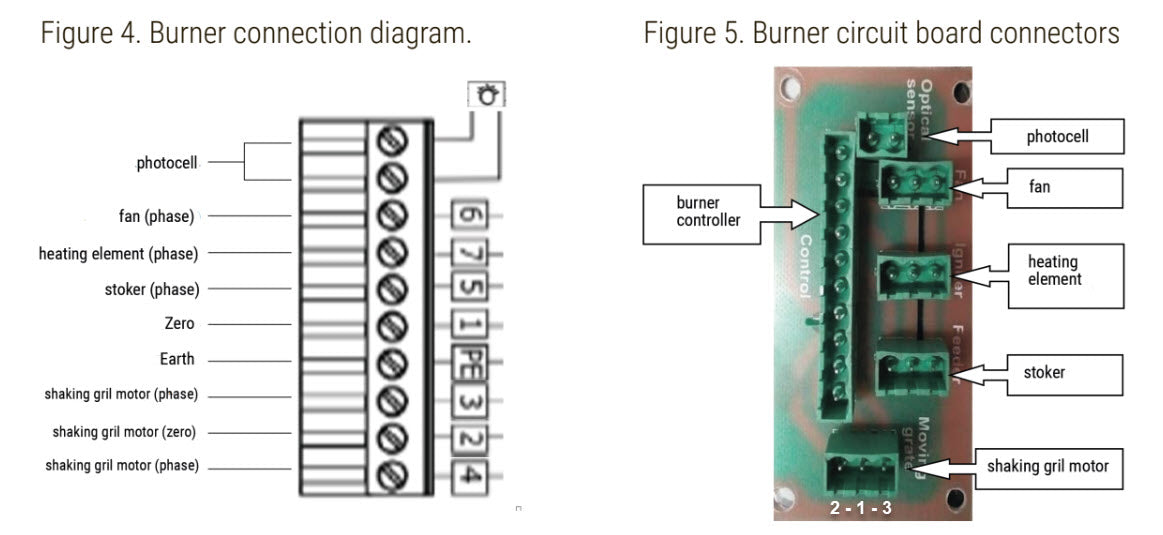

17 Burner circuit board
18 Tube elbow
19 Check valve

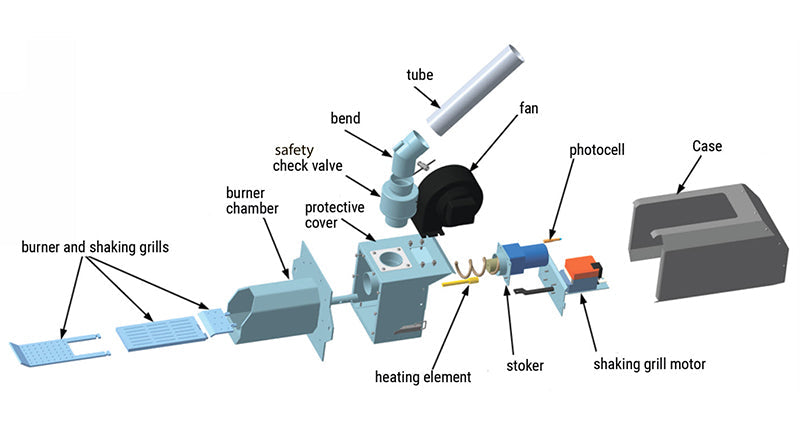

20 Burner feeder screw assembly (without motor)
21 Burner chamber
22 Burner grate
23 Moving grate
24 Protective cover
25 Bottom door
26 Middle door
27 Top door
28 Body
29 Hopper
30 Hopper cover
31 Hopper bolt feet
32 Sight glass
33 Fuse pack (5)
34 ecoLINK2 cable

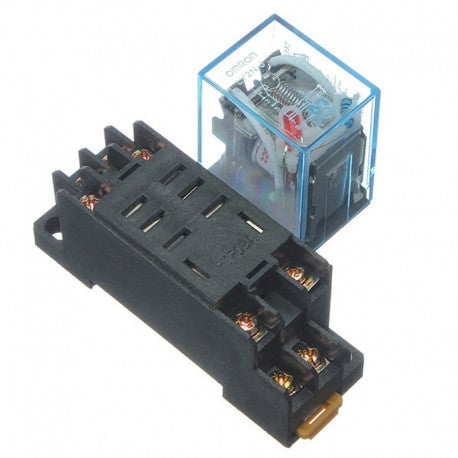

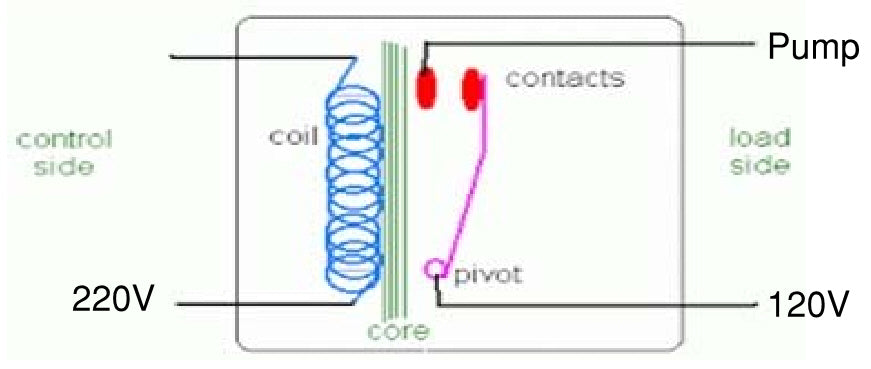

35 Relay 230VAC (use to start a 120V pump)
36 Relay 12VDC (use to start the auxiliary boiler or external alarm)
37 External Alarm 12VDC, 85dB, 1 1/4" X 3/4"
