Back to New ArrivalsAPOLLO Commercial Energy Recovery Ventilator (ERV)
APOLLO Single Room Energy Recovery Ventilator (ERV)

$379.00

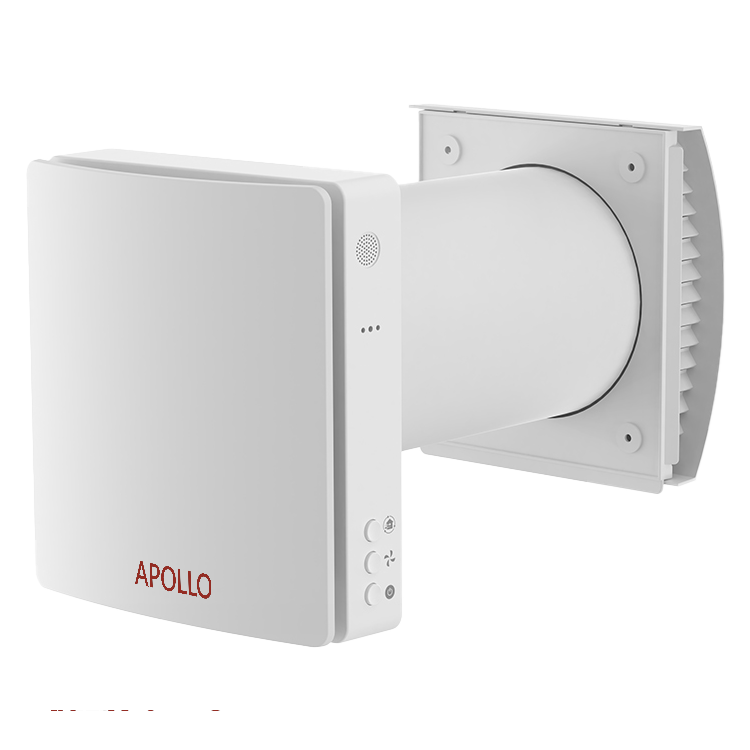

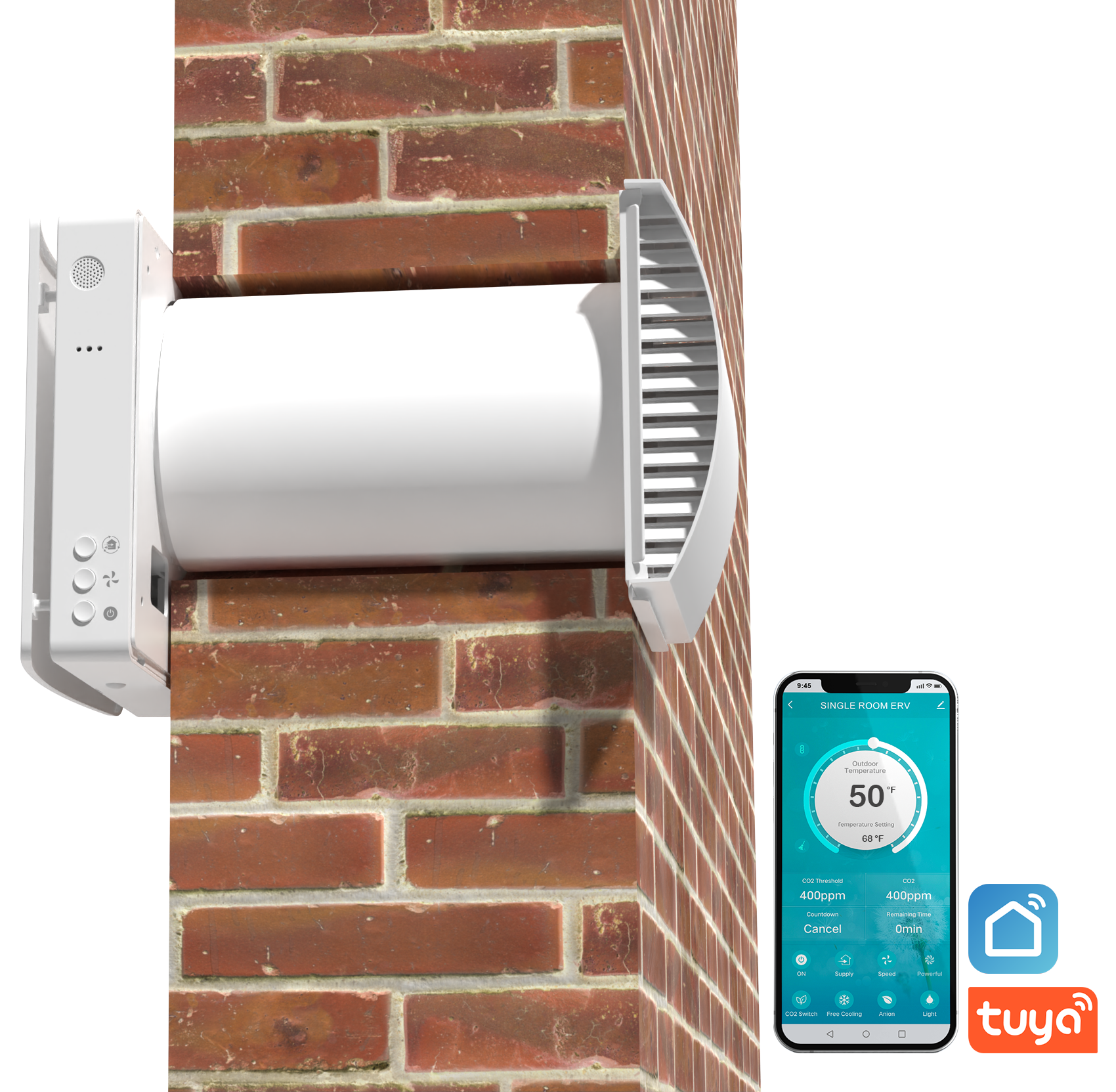

APOLLO Single Room Energy Recovery Ventilator (ERV)

  • Voltage: 100V~240V AC / 50-60Hz.
  • Power Consumption: 6W, 7W, 7.8W.
  • Current: 0.04A, 0.05A, 0.06A.
  • Air Flow (with F7 filter): 20/11.8  -  40/23.5  -  50/29.4 (CMH/CFM).
  • Max Airflow (Fan Boost Mode): 60/35.3 (CMH/CFM).
  • Sound Pressure Level: 32.7 dB(A).
  • Regeneration Efficiency: Up to 97%.
  • SEC Class: A.
  • Ingress Protection Rating: IPX4.
  • Max RPM: 2200.
  • Duct Diameter: 6.22 In (158 mm).
  • Product Dimensions: 9.43 x 10.15 x 19.67 Inches (239.6x258x499.7 mm) (Length of duct in wall: 280-470 mm).
  • Net Weight: 9.26 lb (4.2 kg).

People watching this item right now
Out of stock
Features
Specs
Reviews/Q&A
Manual
Certifications

Single Room Energy Recovery Ventilator (ERV)

  • Energy Efficiency

    The ceramic energy regenerator recovers up to 97% of exhaust air energy, reducing energy consumption and costs.

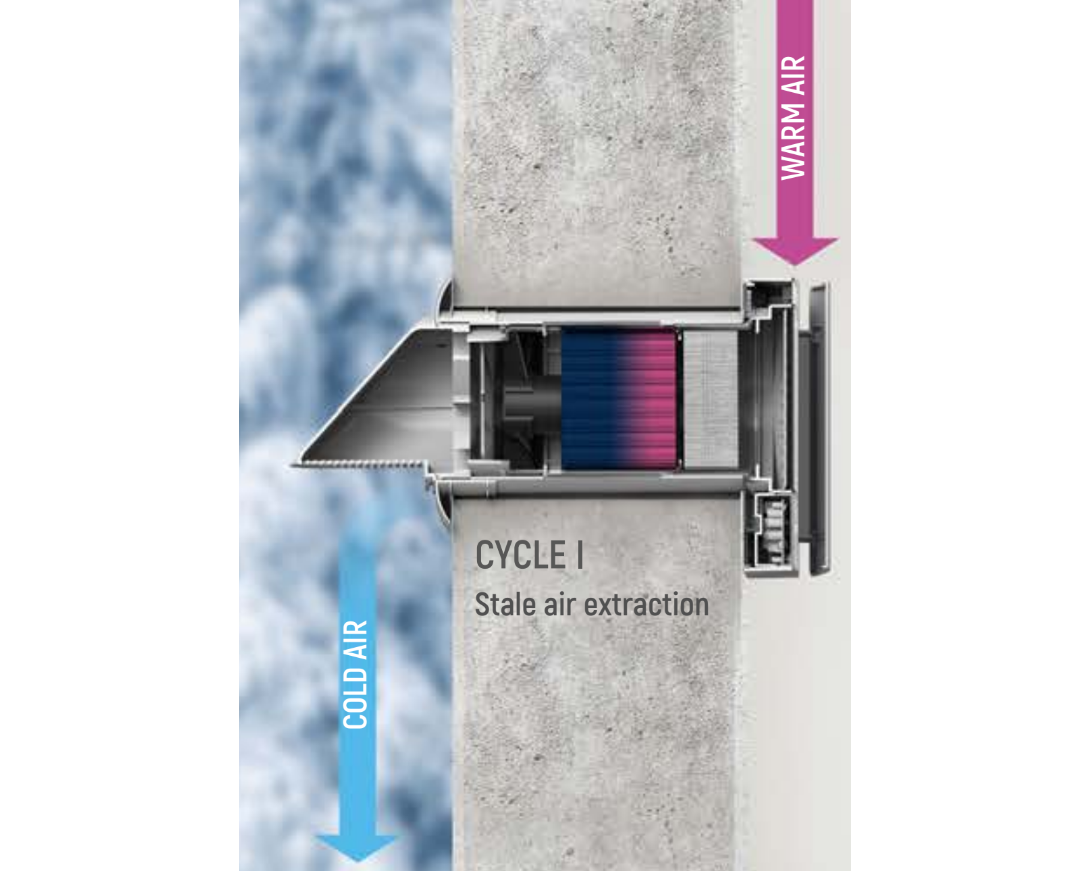

  • Dual Mode Operation

    Seamlessly switches between supply and exhaust modes to optimize indoor air quality.

  • Humidity Control

    Automatically adjusts operation to prevent excess humidity from entering the space.

  • Adjustable Air Duct

    Customizable telescopic air duct for various installation scenarios.

  • Installation Flexibility

    Designed for installation from the inner side of the wall, it offers versatility in setup.

  • User-Friendly Design

    Easy-to-use remote control and comprehensive user manual.

Group Control Capability

Users can control multiple ventilators through a mobile app, enabling group control without limitations on quantity.

Energy Savings

The ventilator can save over 30% energy compared to standard exhaust fans due to its heat recovery capabilities.

Safety Features

It includes safety precautions, such as preventing operation with wet hands, keeping flammable objects away, and ensuring that installation is performed by qualified personnel 43.

Air Filtration

Equipped with an F7 filter and pre-filter, it purifies the incoming air, preventing contaminants from entering the system.

Customer video reviews

  • It is wonderful, we finally made it work. I have to say that Allan and Jesus are wonderful.
    ★★★★★

    Jocelyne,

    A Happy Customer
  • The quality is very impressive! Don't over pay for other brands. Allen, Jesus and the MBtek team are very helpful both before and after the sale. Thank you for the great experience guys.
    ★★★★★

    Todd,

    A Happy Customer
  • Product arrived well packed, and undamaged.
    Customer service was great! Very helpful over the phone. Looking forward to doing more business in the future.
    ★★★★★

    Greg,

    A Happy Customer

Frequently asked questions

Where can I find a dealer?

You can speak directly with one of our sales agents via phone, email or text message for more information.

Who will install my heat pump?

Mbtek does not complete the installation. Any HVAC professional will be able to install your purchase. If you require assistance finding one, we are here to help.

Find Installer

Where can I find parts?

Here We have spare parts ready to ship the following business day.

When will I receive my unit?

As soon as the unit is in stock, we will book the shipment following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take anywhere from 3 to 12 days

Do I have to pay customs fees if my unit is coming from another country?

No. We take responsibility for these charges.

Are your products shipped in the U.S. or Canada?

It varies for each product. However, we have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).

What is the product warranty?

The compressor includes a 5-year warranty.

Need an installer?

We made it easy for you.

Please note that listed installers are independent contractors and not employees of MBTek.
They are skilled professionals familiar with our products and capable of efficient installation.

Any Questions?

Reach out to us

Technical Specifications

Basic Information:

Specification Value
Voltage 100-240 V
Frequency 50/60 Hz
Input Power 9.7 W / 10.7 W / 11.5 W
Current 0.14 A / 0.15 A / 0.16 A
RPM (Speed) 1000 RPM / 1550 RPM / 1800 RPM
Max RPM 2200 RPM
Airflow in Supply/Exhaust Mode 706 ft³/h / 1412 ft³/h / 1766 ft³/h
Airflow in Regeneration Mode 353 ft³/h / 706 ft³/h / 883 ft³/h
Sound Pressure Level 32.7 dB(A)
Heat Recovery Efficiency Up to 97%
Ingress Protection Rating IPX4
Air Duct Diameter 6 ¼ inches
Net Weight 9.26 lbs

Detailed Information:

Specification Value
Operating Temperature Range -4°F to +122°F
Relative Humidity Limit Below 80%
Class of Electric Appliance Class II
Max Airflow under Fan Boost Mode 2119 ft³/h (35 CFM)
Airflow in Supply/Exhaust Mode (CFM) 11.8 / 23.5 / 29.4 CFM
Airflow in Regenerator Mode (CFM) 5.9 / 11.8 / 15 CFM
SEC (Seasonal Energy Class) Class A
Mounting Type Wall Mounting
Group Control Feature Yes, via APP
Safety Features Various operational safety precautions outlined in the manual

Other Features:

Elegant Decorative Front Panel Adds a stylish touch to any room decor.
Automatic Shutter Prevents back draught, ensuring air only flows in the intended direction.
Frost and Condensation Free Operates efficiently in varying weather conditions.
One-Stop Installation Easy installation through an internal wall with a single hole.

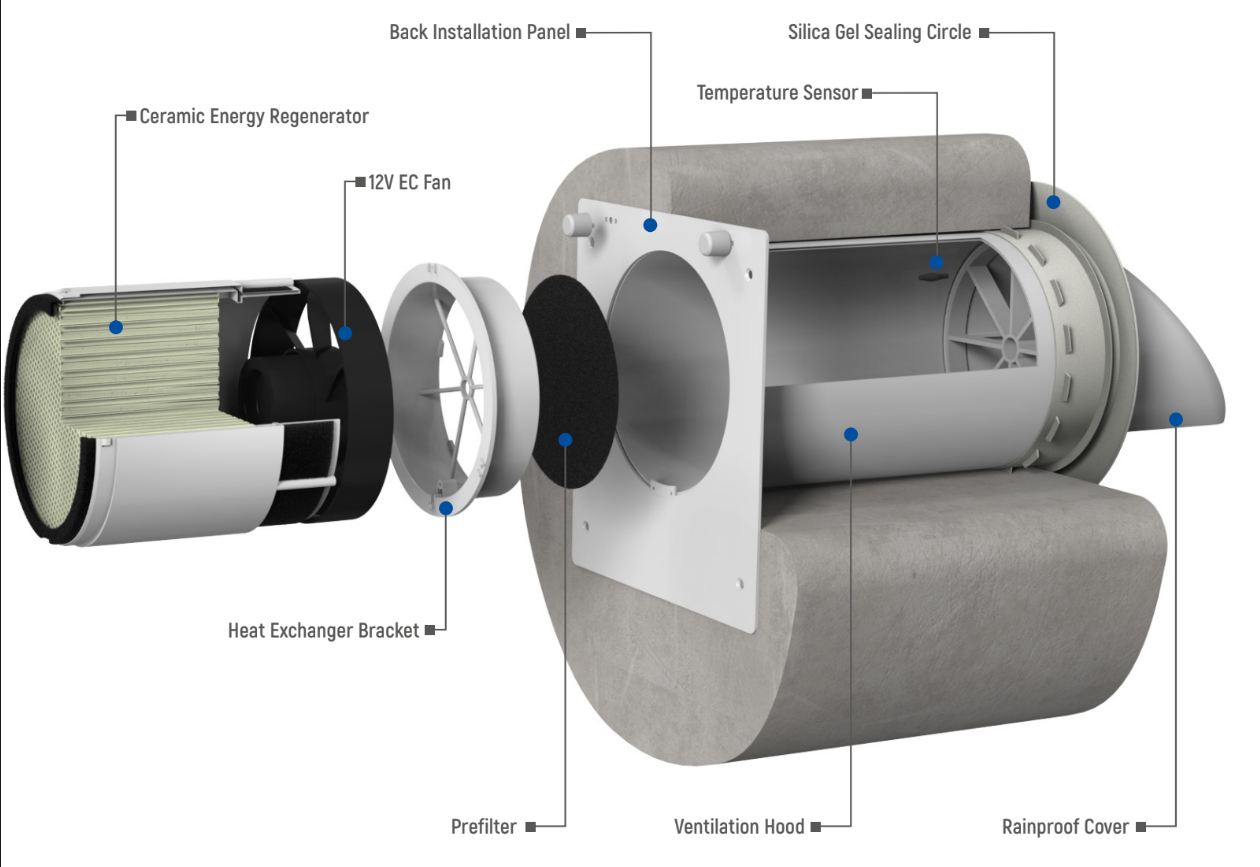

High Thermal Efficiency Built-in ceramic energy regenerator with up to 97% heat recovery efficiency.
Reversible 3-Speed EC Duct Fan Low power consumption of 7.8W.
Free-Cooling Function Automatically switches to supply more fresh air when the outdoor temperature is within ±1°C of the set temperature.
High-Quality Air Filtration Comes with a prefilter and F7 (MERV11) filter to keep air clean.
Flexible Operation Can work individually or in pairs for balanced ventilation.
High Ingress Protection Rated IPX4.
Quiet Operation Sound pressure level of less than 32.7dB(A).
Easy Control Can be controlled via button, remote controller, and WIFI (Smart APP).
Smart Control Includes CO2 sensor for real-time concentration display and optional humidity sensor and IAQ detector.
Wireless Operation Master and slave units communicate wirelessly for balanced ventilation.

Control Options:

Button Control For mode selection, ON/OFF, and fan speed adjustment.
Remote Control Long-distance communication up to 15m without barriers.
WIFI Function Compatible with Android and iOS smartphones, allows control from anywhere via the cloud server.
Smart APP Control Features include free-cooling function, CO2 concentration control, weekly schedule, fan boost function, and more.
Scene Control Create scenes based on weather changes, schedule, or device status.
Group Control Manage multiple units simultaneously.

Accessories:

Kit for Thin Wall.
Stainless Steel Round Grille.
Extended Pipe.
Indoor Unit.
Ventilation Hood for Indoor Mounting.
Cartridge with Regenerator, Fan, and Filters.
Metal Outer Hood with Electrical Heater.
Prefilter.
F7 (MERV11) Filter.
Plastic Square Grille.
Remote Control.
Smart Air Quality Detector.
