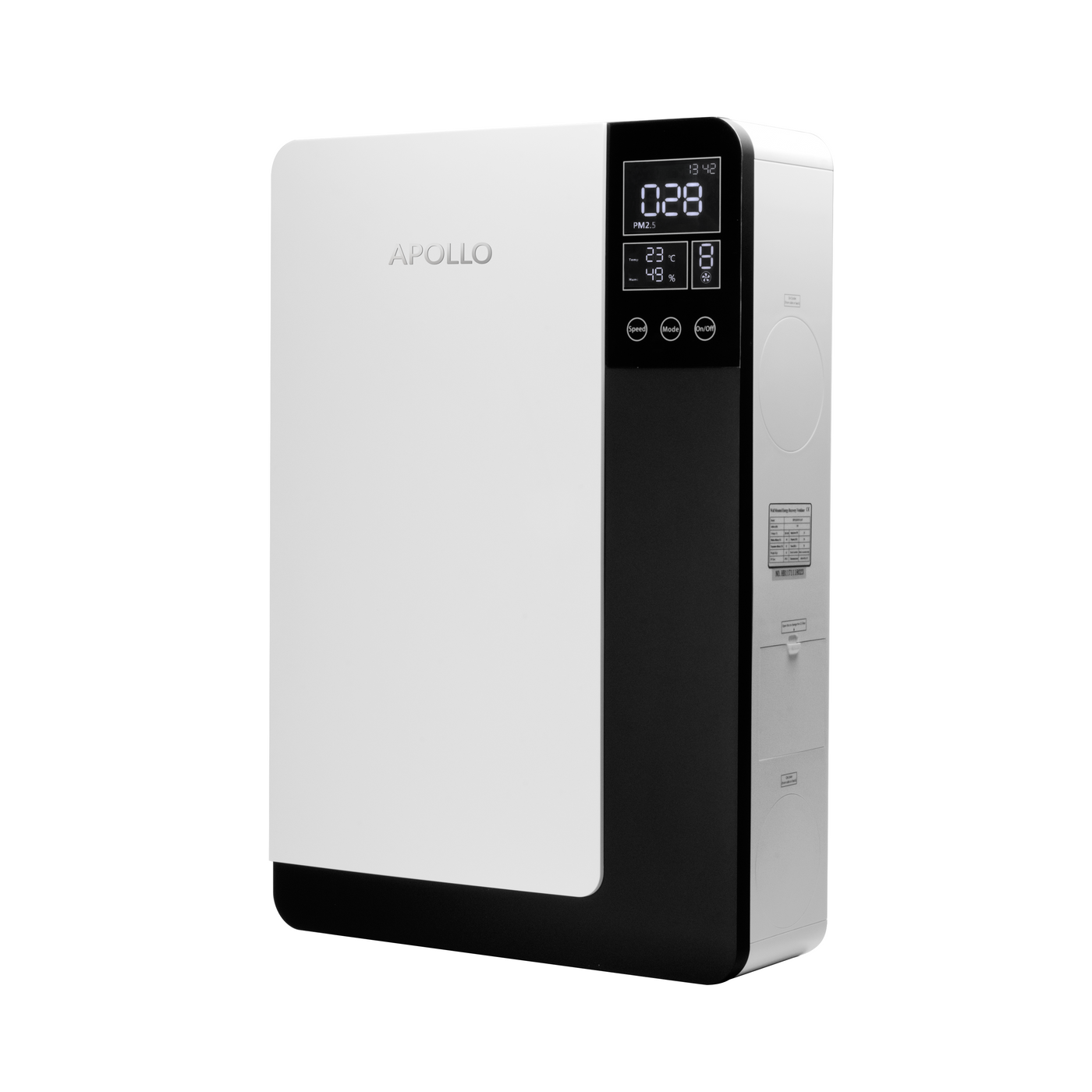

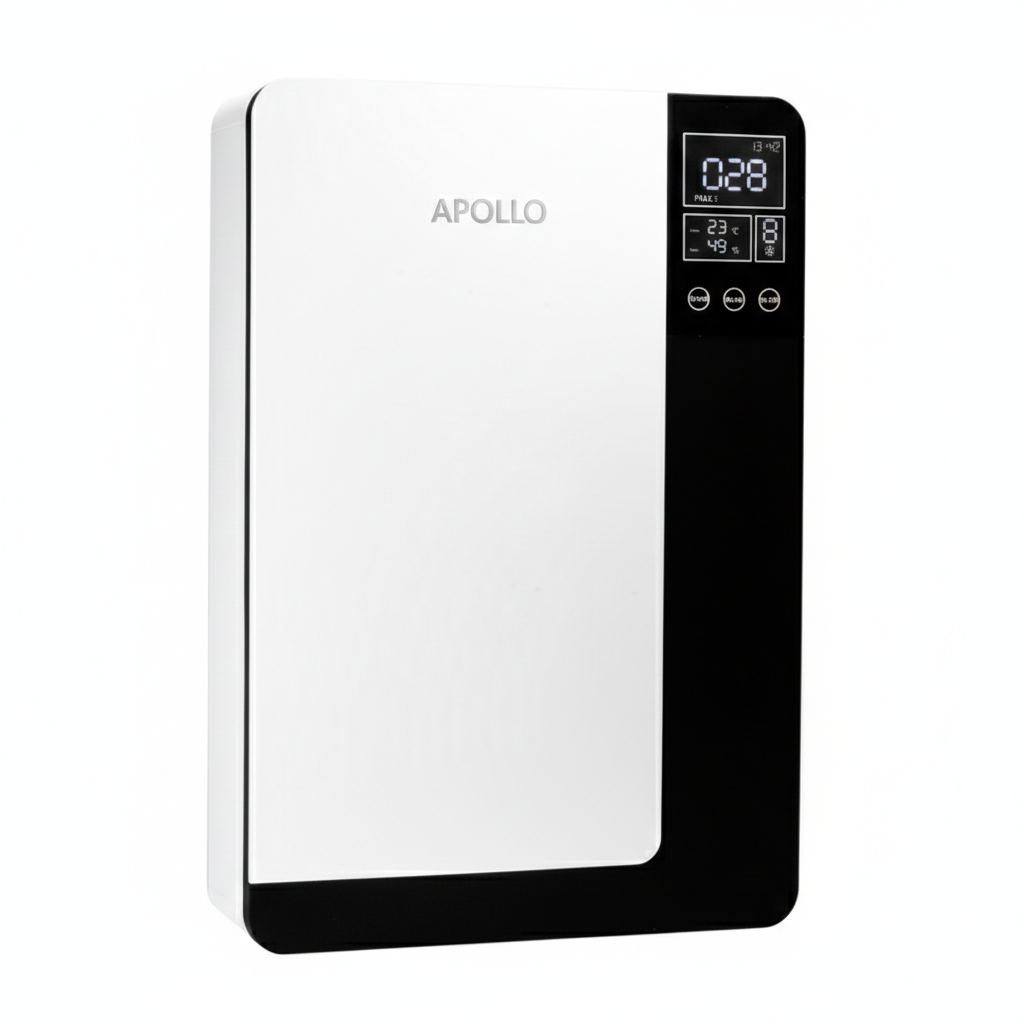

APOLLO Central Energy Recovery Ventilator (ERV)

Simply the best Energy Recovery Ventilator on the market.
 Designed in the USA

The Wall-Mounted Energy Recovery Ventilator (ERV) is designed to create a healthier indoor environment by efficiently exchanging indoor air with fresh outdoor air. This ductless unit is perfect for both residential and commercial spaces, providing high-efficiency ventilation without the need for extensive ductwork.

Key Features:

• High Efficiency Heat and Humidity Recovery: Up to 82% heat recovery efficiency, reducing energy costs significantly.
• Multiple Filtration Stages: Includes primary filter, medium filter, HEPA H10 filter, and activated carbon filter, achieving up to 99% PM2.5 purification efficiency.
• Brushless DC Motors: Low energy consumption with 8-speed regulation, ensuring silent operation with noise levels ranging from 22.6 to 37.9 dBA.
• Indoor Air Quality Monitoring: Real-time monitoring of CO2 levels, temperature, and humidity.
• Smart Control Options: Operate via a touch screen panel, remote control, or smartphone app (Android/iOS). Features group control and scene control capabilities.
• Easy Installation: Suitable for room sizes from 10-50m², with simple installation processes either at the side or back of the unit.
• Compact and Lightweight Design: Integrated with a seamless and leakproof ABS frame, the unit is both durable and easy to clean.

Technical Specifications:

• Supply Airflow: 88-353 CFM (adjustable in 8 speeds)
• Voltage: 110-240V/ 60 Hz
• Maximum Power Consumption: 43.8W
• Sound Pressure Level: 22.6-37.9 dBA
• Dimensions: 17.72 x 6.10 x 25.98 Inches
• Weight: 22 lb
• Operating Temperature Range: 5°F to 104°F
• Suitable Room Size: 215 to 484 sqft

Energy Efficiency:

• Thermal Efficiency: 82%
• Specific Energy Consumption (SEC):
  • Cold Climate: -88.8 kWh/(m².a) A+
  • Average Climate: -45.17 kWh/(m².a) A+
  • Warm Climate: -20.14 kWh/(m².a) E
• Annual Heating Saved (AHS):
  • Cold Climate: 45.7 kWh primary energy/a
  • Average Climate: 89.4 kWh primary energy/a
  • Warm Climate: 20.7 kWh primary energy/a






Installation Accessories Included:

• Installation panel, power cable, remote control
• PVC ducts, OA and EA side/back covers, air vent flanges
• Air inlet and outlet grilles, rainproof covers,
•  sealing rings
• Knock-on anchor bolts, screws, and backplate insulation foam

Control Features:

• Modes: Manual, Auto, Timer, Sleep
• CO2 Status Operational Speeds: Adjusts based on CO2 levels for optimal indoor air quality.
• Timer Function: Programmable to suit individual needs.
• Remote Control Functions: Includes settings for on/off, speed adjustment, timer, and mode selection.
